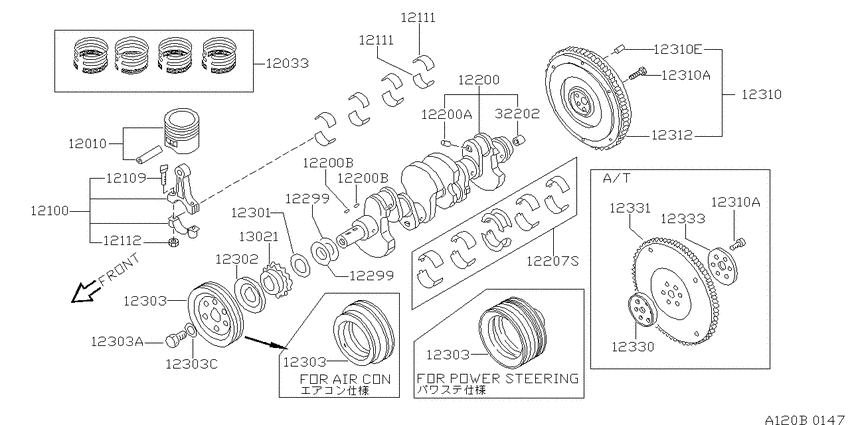

Piston,crankshaft & flywheel (1988-11-01 ~ ; A15S) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.LB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12010
|
12010
12010-G3411 Piston, W/pin8811--01 ~ 9202--01; A15S; STD |
12010-G3411 |
US $66.53 |
||
|
12010
|
12010
12010-G3414
Piston, W/pin
8811--01 ~ 9202--01; A15S; OS=0.50 |
12010-G3414 |
— | ||
|
12010
|
12010
12010-G3416 Piston, W/pin8811--01 ~ 9202--01; A15S; OS=1.00 |
12010-G3416 |
US $66.53 |
||
|
12010
|
12010
12010-G3462 Piston, W/pin9202--01 ~ ; A15S; STD |
12010-G3462 |
US $66.53 |
||
|
12010
|
12010
12010-G3465 Piston, W/pin9202--01 ~ ; A15S; OS=0.50 |
12010-G3465 |
US $66.53 |
||
|
12010
|
12010
12010-G3467 Piston, W/pin9202--01 ~ ; A15S; OS=1.00 |
12010-G3467 |
US $66.53 |
||
|
12033
|
12033
12033H9820 Ring Set-Piston8811--01 ~ ; A15S; STD |
12033H9820 |
US $172.80 |
||
|
12033
|
12033
12035-H9820 Ring Set-Piston8811--01 ~ ; A15S; OS=0.50 |
12035-H9820 |
US $177.12 |
||
|
12033
|
12033
12037-H9820 Ring Set-Piston8811--01 ~ ; A15S; OS=1.00 |
12037-H9820 |
US $177.12 |
||
|
12100
|
12100
12100-H7200 Rod Compl-Connecting8811--01 ~ ; A15S |
12100-H7200 |
US $139.82 |
||
|
12109
|
12109
12109-H1012 Bolt-Connecting Rod8811--01 ~ ; A15S |
12109-H1012 |
US $3.46 |
||
|
12111
|
12111
12111-20903 Bearing-Connecting Rod8811--01 ~ ; A15S; US=0.25. |
12111-20903 |
US $13.97 |
||
|
12111
|
12111
12111-20904 Bearing-Connecting Rod8811--01 ~ ; A15S; US=0.50. |
12111-20904 |
US $13.97 |
||
|
12111
|
12111
12111-20905 Bearing-Connecting Rod8811--01 ~ ; A15S; US=0.75. |
12111-20905 |
US $13.97 |
||
|
12111
|
12111
12111-20910 Bearing-Connecting Rod8811--01 ~ ; A15S; STD |
12111-20910 |
US $13.97 |
||
|
12111
|
12111
12111-20903 Bearing-Connecting Rod8811--01 ~ ; A15S; US=0.25. |
12111-20903 |
US $13.97 |
||
|
12111
|
12111
12111-20904 Bearing-Connecting Rod8811--01 ~ ; A15S; US=0.50. |
12111-20904 |
US $13.97 |
||
|
12111
|
12111
12111-20905 Bearing-Connecting Rod8811--01 ~ ; A15S; US=0.75. |
12111-20905 |
US $13.97 |
||
|
12111
|
12111
12111-20910 Bearing-Connecting Rod8811--01 ~ ; A15S; STD |
12111-20910 |
US $13.97 |
||
|
12112
|
12112
12112-H1000 Nut-Connecting Rod8811--01 ~ ; A15S |
12112-H1000 |
US $2.30 |
||
|
12200
|
12200
12200-G3400 Crankshaft Assy8811--01 ~ ; A15S.MT |
12200-G3400 |
US $1,456 |
||
|
12200
|
12200
12202-H1000 Plug-Taper8811--01 ~ ; A15S; ｱｲﾁｷｶｲ |
12202-H1000 |
US $2.45 |
||
|
12200
|
12200
12205-H7260 Plug-Crankshaft Oil Hole8811--01 ~ ; A15S; ｵｵｶﾜｾｲﾗ |
12205-H7260 |
US $2.45 |
||
|
12200
|
12200
12316-30000 Key8811--01 ~ ; A15S |
12316-30000 |
US $2.02 |
||
|
12200A
|
12200A
12202-H1000 Plug-Taper8811--01 ~ ; A15S; ｱｲﾁｷｶｲ |
12202-H1000 |
US $2.45 |
||
|
12200A
|
12200A
12205-H7260 Plug-Crankshaft Oil Hole8811--01 ~ ; A15S; ｵｵｶﾜｾｲﾗ |
12205-H7260 |
US $2.45 |
||
|
12200B
|
12200B
12316-30000 Key8811--01 ~ ; A15S |
12316-30000 |
US $2.02 |
||
|
12200B
|
12200B
12316-30000 Key8811--01 ~ ; A15S |
12316-30000 |
US $2.02 |
||
|
12207S
|
12207S
12207-M7201 Bearing Set-Crankshaft8811--01 ~ ; A15S; STD |
12207-M7201 |
US $178.56 |
||
|
12207S
|
12207S
12209-M7201 Bearing Set-Crankshaft8811--01 ~ ; A15S; US=0.25. |
12209-M7201 |
US $177.12 |
||
|
12207S
|
12207S
12210-M7201 Bearing Set-Crankshaft8811--01 ~ ; A15S; US=0.50. |
12210-M7201 |
US $177.12 |
||
|
12207S
|
12207S
12211-M7201 Bearing Set-Crankshaft8811--01 ~ ; A15S; US=0.75. |
12211-M7201 |
US $177.12 |
||
|
12299
|
12299
12299-18000
Shim-Crank Sprocket
8811--01 ~ ; A15S |
12299-18000 |
— | ||
|
12299
|
12299
12299-18000
Shim-Crank Sprocket
8811--01 ~ ; A15S |
12299-18000 |
— | ||
|
12301
|
12301
12301-30000 Washer-Packing, Crankshaft8811--01 ~ ; A15S |
12301-30000 |
US $1.73 |
||
|
12302
|
12302
12302-18000 Thrower-Oil, Crankshaft8811--01 ~ ; A15S |
12302-18000 |
US $3.31 |
||
|
12303
|
12303
12303-G2511 Pulley-Crankshaft8811--01 ~ ; *A15S; ｴｱｺﾝ ｼﾖｳ |
12303-G2511 |
US $213.12 |
||
|
12303
|
12303
12303-G5110 Pulley-Crankshaft8811--01 ~ ; *A15S; ｴｱｺﾝ+ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
12303-G5110 |
US $220.32 |
||
|
12303
|
12303
12303-H8501 Pulley-Crankshaft8811--01 ~ ; A15S.MT |
12303-H8501 |
US $60.91 |
||
|
12303
|
12303
12309-78200 Bolt-Pulley, Crankshaft8811--01 ~ ; A15S |
12309-78200 |
US $4.57 |
||
|
12303
|
12303
12308H1000 Washer-Pulley, Crankshaft8811--01 ~ ; A15S |
12308H1000 |
US $2.45 |
||
|
12303
|
12303
12303-G2511 Pulley-Crankshaft8811--01 ~ ; *A15S; ｴｱｺﾝ ｼﾖｳ |
12303-G2511 |
US $213.12 |
||
|
12303
|
12303
12303-G5110 Pulley-Crankshaft8811--01 ~ ; *A15S; ｴｱｺﾝ+ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
12303-G5110 |
US $220.32 |
||
|
12303
|
12303
12303-H8501 Pulley-Crankshaft8811--01 ~ ; A15S.MT |
12303-H8501 |
US $60.91 |
||
|
12303
|
12303
12309-78200 Bolt-Pulley, Crankshaft8811--01 ~ ; A15S |
12309-78200 |
US $4.57 |
||
|
12303
|
12303
12308H1000 Washer-Pulley, Crankshaft8811--01 ~ ; A15S |
12308H1000 |
US $2.45 |
||
|
12303
|
12303
12303-G2511 Pulley-Crankshaft8811--01 ~ ; *A15S; ｴｱｺﾝ ｼﾖｳ |
12303-G2511 |
US $213.12 |
||
|
12303
|
12303
12303-G5110 Pulley-Crankshaft8811--01 ~ ; *A15S; ｴｱｺﾝ+ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
12303-G5110 |
US $220.32 |
||
|
12303
|
12303
12303-H8501 Pulley-Crankshaft8811--01 ~ ; A15S.MT |
12303-H8501 |
US $60.91 |
||
|
12303
|
12303
12309-78200 Bolt-Pulley, Crankshaft8811--01 ~ ; A15S |
12309-78200 |
US $4.57 |
||
|
12303
|
12303
12308H1000 Washer-Pulley, Crankshaft8811--01 ~ ; A15S |
12308H1000 |
US $2.45 |
||
|
12303A
|
12303A
12309-78200 Bolt-Pulley, Crankshaft8811--01 ~ ; A15S |
12309-78200 |
US $4.57 |
||
|
12303C
|
12303C
12308H1000 Washer-Pulley, Crankshaft8811--01 ~ ; A15S |
12308H1000 |
US $2.45 |
||
|
12310
|
12310
12310-H8900 Flywheel Assy8811--01 ~ ; A15S.MT |
12310-H8900 |
US $359.66 |
||
|
12310
|
12310
12315-H6200 Bolt-Flywheel8811--01 ~ ; A15S.MT |
12315-H6200 |
US $4.42 |
||
|
12310
|
12310
1231310600 Dowel-Clutch To Flywheel8811--01 ~ ; A15S.MT |
1231310600 |
from US $0.33 |
||
|
12310A
|
12310A
12315-H6200 Bolt-Flywheel8811--01 ~ ; A15S.MT |
12315-H6200 |
US $4.42 |
||
|
12310A
|
12310A
12315-H6200 Bolt-Flywheel8811--01 ~ ; A15S.MT |
12315-H6200 |
US $4.42 |
||
|
12310E
|
12310E
1231310600 Dowel-Clutch To Flywheel8811--01 ~ ; A15S.MT |
1231310600 |
from US $0.33 |
||
|
12312
|
12312
12312-18000 Gear-Ring8811--01 ~ ; A15S.MT |
12312-18000 |
from US $61.25 |
||
|
13021
|
13021
13021-H8900 Sprocket-Crankshaft8811--01 ~ ; A15S |
13021-H8900 |
US $59.04 |
||
|
32202
|
32202
32202-18000
Bushing-Crankshaft
8811--01 ~ ; A15S.MT |
32202-18000 |
— | ||
| replacement | |||||
|
32202
|
32202
32202-1801A Bushing gear8811--01 ~ ; A15S.MT |
32202-1801A |
US $11.23 |
||
