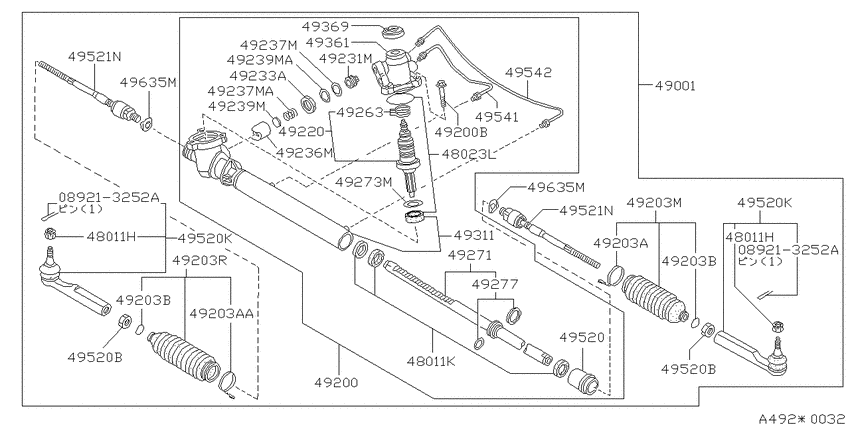

Power steering gear (1988-11-01 ~ ; A12S +A15S +Z20S +LD20 +NA20S) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.LB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
from US $0.63 |
||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
from US $0.63 |
||
|
48011H
|
48011H
0122700081 NUT8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
0122700081 |
US $2.91 |
||
|
48011H
|
48011H
0122700081 NUT8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
0122700081 |
US $2.91 |
||
|
48011K
|
48011K
49297-G5225 Seal Kit-Rack, Power Steering Gear8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49297-G5225 |
from US $27.58 |
||
|
48023L
|
48023L
49365-10V26 Seal Kit-Pinion, Power Steering Gear8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49365-10V26 |
from US $7.35 |
||
|
49001
|
49001
49001-G5210 Gear & Linkage-Power Steering8811--01 ~ ; *T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49001-G5210 |
US $1,848 |
||
|
49200
|
49200
49200-G5210 Gear Assy-Power Steering8811--01 ~ ; *T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49200-G5210 |
US $1,526 |
||
|
49200
|
49200
01141-00281 BOLT8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
01141-00281 |
US $0.86 |
||
|
49200B
|
49200B
01141-00281 BOLT8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
01141-00281 |
US $0.86 |
||
|
49203A
|
49203A
48055-17B00
Clamp-Boot
8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48055-17B00 |
— | ||
| replacement | |||||
|
49203A
|
49203A
48055D4100 Clamp-Boot8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48055D4100 |
US $4.71 |
||
|
49203A
|
49203A
48055D4100 Clamp-Boot8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48055D4100 |
US $4.71 |
||
|
49203AA
|
49203AA
48055D4100 Clamp-Boot8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48055D4100 |
US $4.71 |
||
|
49203B
|
49203B
4805478500 Clamp-Boot8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
4805478500 |
US $1.82 |
||
|
49203B
|
49203B
4805478500 Clamp-Boot8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
4805478500 |
US $1.82 |
||
|
49203M
|
49203M
48203-27N25 Boot Kit-Power Steering Gear8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞｼﾖｳ |
48203-27N25 |
US $45.36 |
||
| replacement | |||||
|
49203M
|
49203M
4820327N26 BOOT KIT8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞｼﾖｳ |
4820327N26 |
US $41.47 |
||
|
49203R
|
49203R
48203-27N25 Boot Kit-Power Steering Gear8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48203-27N25 |
US $45.36 |
||
| replacement | |||||
|
49203R
|
49203R
4820327N26 BOOT KIT8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
4820327N26 |
US $41.47 |
||
|
49220
|
49220
49220-G5210 Pinion Assy-Power Steering8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49220-G5210 |
US $266.40 |
||
|
49231M
|
49231M
48231-G5200 Screw-Adjust Retainer8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48231-G5200 |
US $5.62 |
||
|
49233A
|
49233A
48233-G5200 Nut8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48233-G5200 |
US $5.62 |
||
|
49236M
|
49236M
48236-G5200 Retainer-Power Steering Gear8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48236-G5200 |
from US $6.05 |
||
|
49237M
|
49237M
48237-G5200 Spring-Retainer8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-G5200 |
US $5.90 |
||
|
49237M
|
49237M
48237-10V00 Spring-Retainer8811--01 ~ 9008--01; *T.LB.A15S; ｾﾝﾀｸ L=24.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V00 |
US $4.18 |
||
|
49237M
|
49237M
48237-10V01 Spring-Retainer8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ｾﾝﾀｸ L=21.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V01 |
US $4.18 |
||
|
49237M
|
49237M
48237-10V02 Spring-Retainer8811--01 ~ 9008--01; *T.LB.A15S; ｾﾝﾀｸ L=27.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V02 |
US $4.18 |
||
|
49237M
|
49237M
48237-10V03 Spring-Retainer8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ｾﾝﾀｸ L=22.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V03 |
US $4.18 |
||
|
49237M
|
49237M
48237-10V04 Spring-Retainer8811--01 ~ 9008--01; *T.LB.A15S; ｾﾝﾀｸ L=23.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V04 |
US $4.18 |
||
|
49237M
|
49237M
48237-10V05 Spring-Retainer9206--01 ~ 9303--01; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=25.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V05 |
US $5.18 |
||
|
49237M
|
49237M
48237-10V06 Spring-Retainer9206--01 ~ 9303--01; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=26.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V06 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E100 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=25.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E100 |
US $5.42 |
||
|
49237M
|
49237M
48237-4E101 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=22.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E101 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E102 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=28.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E102 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E103 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=23.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E103 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E104 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=24.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E104 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E105 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=26.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E105 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E106 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=27.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E106 |
US $5.18 |
||
|
49237MA
|
49237MA
48237-10V00 Spring-Retainer8811--01 ~ 9008--01; *T.LB.A15S; ｾﾝﾀｸ L=24.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V00 |
US $4.18 |
||
|
49237MA
|
49237MA
48237-10V01 Spring-Retainer8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ｾﾝﾀｸ L=21.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V01 |
US $4.18 |
||
|
49237MA
|
49237MA
48237-10V02 Spring-Retainer8811--01 ~ 9008--01; *T.LB.A15S; ｾﾝﾀｸ L=27.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V02 |
US $4.18 |
||
|
49237MA
|
49237MA
48237-10V03 Spring-Retainer8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ｾﾝﾀｸ L=22.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V03 |
US $4.18 |
||
|
49237MA
|
49237MA
48237-10V04 Spring-Retainer8811--01 ~ 9008--01; *T.LB.A15S; ｾﾝﾀｸ L=23.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V04 |
US $4.18 |
||
|
49237MA
|
49237MA
48237-10V05 Spring-Retainer9206--01 ~ 9303--01; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=25.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V05 |
US $5.18 |
||
|
49237MA
|
49237MA
48237-10V06 Spring-Retainer9206--01 ~ 9303--01; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=26.9 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-10V06 |
US $5.18 |
||
|
49237MA
|
49237MA
48237-4E100 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=25.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E100 |
US $5.42 |
||
|
49237MA
|
49237MA
48237-4E101 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=22.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E101 |
US $5.18 |
||
|
49237MA
|
49237MA
48237-4E102 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=28.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E102 |
US $5.18 |
||
|
49237MA
|
49237MA
48237-4E103 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=23.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E103 |
US $5.18 |
||
|
49237MA
|
49237MA
48237-4E104 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=24.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E104 |
US $5.18 |
||
|
49237MA
|
49237MA
48237-4E105 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=26.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E105 |
US $5.18 |
||
|
49237MA
|
49237MA
48237-4E106 SPRING-RETAINER9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ L=27.67 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48237-4E106 |
US $5.18 |
||
|
49239M
|
49239M
48239-F6100 Seat-Spring Retainer Steering Gear8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48239-F6100 |
US $4.61 |
||
|
49239M
|
49239M
48239-F6110 Seat-Spring, Retainer Power Steering Gear9303--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48239-F6110 |
US $2.64 |
||
|
49239M
|
49239M
48239-G5200 Seat-Spring, Retainer Power Steering Gear8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48239-G5200 |
US $3.74 |
||
|
49239MA
|
49239MA
48239-G5200 Seat-Spring, Retainer Power Steering Gear8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48239-G5200 |
US $3.74 |
||
|
49263
|
49263
49263-10V00 Ring-Worm, Flon8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49263-10V00 |
from US $4.61 |
||
|
49263
|
49263
49263-65F00 Ring-Worm, Flon9411--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49263-65F00 |
US $5.55 |
||
|
49271
|
49271
49271-G5206 Rack Assy-Power Steering8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49271-G5206 |
US $266.40 |
||
|
49273M
|
49273M
48273-10V00 Shim Adjust-Pinion Bearing8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48273-10V00 |
US $4.85 |
||
|
49273M
|
49273M
48273-10V10 Shim Adjust-Pinion Bearing9202--01 ~ ; 9*FD.2WD.LD20.DX +*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S; ｾﾝﾀｸ T=0.10 ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48273-10V10 |
US $6.05 |
||
|
49277
|
49277
49277-G5200 Seal Set-Piston8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49277-G5200 |
US $15.55 |
||
|
49311
|
49311
49311-G5206 Housing & Cylinder Assy-Power Steering8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49311-G5206 |
US $198.72 |
||
|
49361
|
49361
49361-G5201 Housing Assy-Rear8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49361-G5201 |
US $135.22 |
||
|
49369
|
49369
49369-10V00
Cap-Rear Cover
8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49369-10V00 |
— | ||
| replacement | |||||
|
49369
|
49369
49369-60U00 Cap-Rear Cover8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49369-60U00 |
from US $12.45 |
||
|
49520
|
49520
49520-G5206 Cover Assy-Cylinder End8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49520-G5206 |
US $65.66 |
||
|
49520
|
49520
0121100371 NUT8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
0121100371 |
from US $1.13 |
||
|
49520
|
49520
48520-G5225
Socket Kit-Tie Rod, Outer
8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48520-G5225 |
— | ||
|
49520B
|
49520B
0121100371 NUT8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
0121100371 |
from US $1.13 |
||
|
49520B
|
49520B
0121100371 NUT8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
0121100371 |
from US $1.13 |
||
|
49520K
|
49520K
48520-G5225
Socket Kit-Tie Rod, Outer
8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48520-G5225 |
— | ||
|
49520K
|
49520K
48520-G5225
Socket Kit-Tie Rod, Outer
8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48520-G5225 |
— | ||
|
49521N
|
49521N
48521G5200 Socket Assy-Tie Rod, Inner8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48521G5200 |
US $187.20 |
||
|
49521N
|
49521N
48521G5200 Socket Assy-Tie Rod, Inner8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48521G5200 |
US $187.20 |
||
|
49541
|
49541
49541-G5201 Tube Assy-Cylinder8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49541-G5201 |
US $16.27 |
||
|
49542
|
49542
49542-G5201 Tube Assy-Cylinder8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49542-G5201 |
US $17.28 |
||
|
49635M
|
49635M
48635G5206 Plate-Lock Side Rod8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48635G5206 |
US $11.52 |
||
|
49635M
|
49635M
48635G5206 Plate-Lock Side Rod8811--01 ~ 9008--01; 9*T.SB.A15S.DX +*T.SB.LD20.DX +*T.LB.A15S +*FD.2WD.LD20.DX; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
48635G5206 |
US $11.52 |
||
