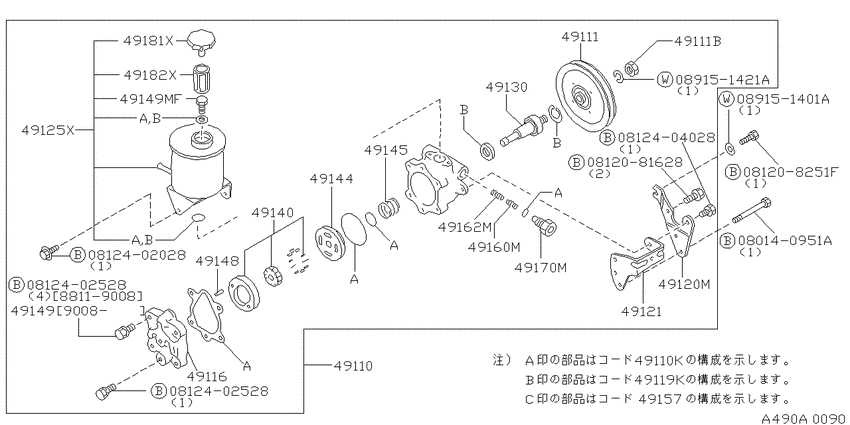

Power steering pump (1988-11-01 ~ ; A15S) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.LB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080140951A
|
080140951A
08014-0951A
Bolt-hexagon
|
08014-0951A |
— | ||
|
0812081628
|
0812081628
08120-81628
Bolt-hexagon
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
0812402028
|
0812402028
08124-02028
Bolt-hexagon
|
08124-02028 |
— | ||
|
0812402528
|
0812402528
08124-02528
Bolt-hexagon
|
08124-02528 |
— | ||
|
0812402528
|
0812402528
08124-02528
Bolt-hexagon
|
08124-02528 |
— | ||
|
0812404028
|
0812404028
08124-04028
Bolt-hexagon
|
08124-04028 |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
49110
|
49110
49110-21C10 Pump Assy-Power Steering8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49110-21C10 |
US $1,526 |
||
|
49110
|
49110
49591-50L28 Seal Kit-Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49591-50L28 |
from US $15.25 |
||
|
49110K
|
49110K
49591-50L28 Seal Kit-Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49591-50L28 |
from US $15.25 |
||
|
49111
|
49111
49132-21C00 Pulley-Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49132-21C00 |
US $96.34 |
||
|
49111
|
49111
49133-50L00 Nut-Pulley, Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111
|
49111
4913350L0A Nut-Pulley, Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
4913350L0A |
US $1.73 |
||
|
49111B
|
49111B
49133-50L00 Nut-Pulley, Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111B
|
49111B
4913350L0A Nut-Pulley, Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
4913350L0A |
US $1.73 |
||
|
49116
|
49116
49116-51E00 COVER-REAR,POWER STEERING PUMP8811--01 ~ 9402--01; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49116-51E00 |
US $33.70 |
||
|
49116
|
49116
49116-51E01 COVER-REAR,POWER STEERING PUMP9402--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49116-51E01 |
US $33.70 |
||
|
49119K
|
49119K
4911950L25 Seal Set-Drive Shaft8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
4911950L25 |
from US $10.69 |
||
|
49120M
|
49120M
49122-21C10 Bracket Assy-Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49122-21C10 |
US $33.41 |
||
|
49121
|
49121
49121-G5100 Bracket Assy-Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49121-G5100 |
US $123.41 |
||
|
49125X
|
49125X
49180-21C10 Tank Assy-Reservoir8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49180-21C10 |
US $294.53 |
||
|
49130
|
49130
49130-19V10 Shaft-Drive, Power Steering Pump8811--01 ~ 9008--01; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49130-19V10 |
US $55.01 |
||
|
49130
|
49130
49130-29C00 Shaft-Drive, Power Steering Pump9008--01 ~ 9402--01; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49130-29C00 |
US $45.05 |
||
|
49130
|
49130
49130-29C01 Shaft-Drive, Power Steering Pump9402--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49130-29C01 |
US $44.50 |
||
|
49140
|
49140
49140-15V00 Rotor & Camring Set-Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49140-15V00 |
from US $116.21 |
||
|
49144
|
49144
49144-15V00 Plate-Side, Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49144-15V00 |
US $31.68 |
||
|
49145
|
49145
49145-19V00 Spring-Side Plate8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49145-19V00 |
US $11.09 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49148-15V00 |
US $2.49 |
||
|
49149
|
49149
49149-F6601 Bolt-Bracket, Power Steering Pump9008--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49149-F6601 |
US $4.32 |
||
|
49149
|
49149
49164-50L05 Bolt-Reservoir Tank8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49164-50L05 |
US $2.74 |
||
|
49149MF
|
49149MF
49164-50L05 Bolt-Reservoir Tank8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49164-50L05 |
US $2.74 |
||
|
49157
|
49157
49163-50L25 Seal-O Ring8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49163-50L25 |
US $5.18 |
||
|
49160M
|
49160M
49165-19V00 Valve Assy-Flow Control8811--01 ~ 9008--01; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49165-19V00 |
US $42.19 |
||
|
49160M
|
49160M
49165-F6400 Valve Assy-Flow Control9008--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49165-F6400 |
US $44.50 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
4916719V00 |
US $10.94 |
||
|
49170M
|
49170M
49170-35F00 Joint-Outlet, Power Steering Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49170-35F00 |
US $44.50 |
||
|
49181X
|
49181X
49181W1705 Cap Assy-Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49181W1705 |
from US $14.42 |
||
|
49182X
|
49182X
49182-42L00 Filter Assy-Pump8811--01 ~ ; *T.SB.A15S.DX +*T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
49182-42L00 |
US $5.55 |
||
