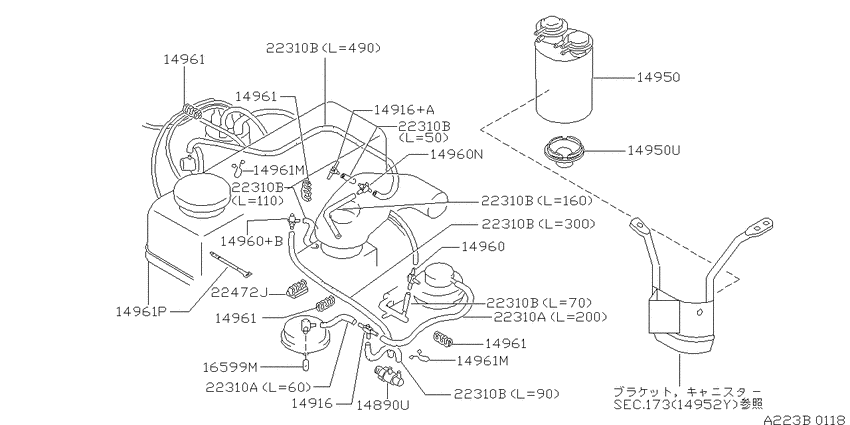

Vacuum piping (1988-11-01 ~ ; T.LB.A15S +A15S.AT) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.LB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14890U
|
14890U
14890U6700 Valve-Thermal Vacuum8811--01 ~ ; A15S |
14890U6700 |
US $50.87 |
||
|
14916
|
14916
14960-W1304 Connector, A8811--01 ~ ; A15S |
14960-W1304 |
US $4.42 |
||
|
14916
|
14916
14961-W1300 Connector, A8811--01 ~ ; A15S |
14961-W1300 |
US $3.46 |
||
|
14916+A
|
14916+A
14961-W1300 Connector, A8811--01 ~ ; A15S |
14961-W1300 |
US $3.46 |
||
|
14950
|
14950
14950-09A00
Canister Assy-Evaporation
8811--01 ~ ; A15S.AT +T.LB.A15S |
14950-09A00 |
— | ||
|
14950
|
14950
14954-37A00 Tray-Canister8811--01 ~ ; A15S |
14954-37A00 |
US $5.90 |
||
|
14950U
|
14950U
14954-37A00 Tray-Canister8811--01 ~ ; A15S |
14954-37A00 |
US $5.90 |
||
|
14960
|
14960
14960-W1304 Connector, A8811--01 ~ ; A15S |
14960-W1304 |
US $4.42 |
||
|
14960
|
14960
14960-W1304 Connector, A8811--01 ~ ; A15S.AT +T.LB.A15S |
14960-W1304 |
US $4.42 |
||
|
14960
|
14960
14961-02B00 Connector, A8811--01 ~ ; A15S.AT +T.LB.A15S |
14961-02B00 |
US $9.79 |
||
|
14960+B
|
14960+B
14960-W1304 Connector, A8811--01 ~ ; A15S.AT +T.LB.A15S |
14960-W1304 |
US $4.42 |
||
|
14960N
|
14960N
14961-02B00 Connector, A8811--01 ~ ; A15S.AT +T.LB.A15S |
14961-02B00 |
US $9.79 |
||
|
14961
|
14961
22316-W7060 Clamp-Hose, B8811--01 ~ ; A15S.AT +T.LB.A15S |
22316-W7060 |
US $2.74 |
||
|
14961
|
14961
22472-W7500
Clip-Wiring Harness
8811--01 ~ ; A15S.AT +T.LB.A15S |
22472-W7500 |
— | ||
|
14961
|
14961
01552-00481
CLAMP
8811--01 ~ ; A15S |
01552-00481 |
— | ||
|
14961
|
14961
22316-W7060 Clamp-Hose, B8811--01 ~ ; A15S.AT +T.LB.A15S |
22316-W7060 |
US $2.74 |
||
|
14961
|
14961
22472-W7500
Clip-Wiring Harness
8811--01 ~ ; A15S.AT +T.LB.A15S |
22472-W7500 |
— | ||
|
14961
|
14961
01552-00481
CLAMP
8811--01 ~ ; A15S |
01552-00481 |
— | ||
|
14961
|
14961
22316-W7060 Clamp-Hose, B8811--01 ~ ; A15S.AT +T.LB.A15S |
22316-W7060 |
US $2.74 |
||
|
14961
|
14961
22472-W7500
Clip-Wiring Harness
8811--01 ~ ; A15S.AT +T.LB.A15S |
22472-W7500 |
— | ||
|
14961
|
14961
01552-00481
CLAMP
8811--01 ~ ; A15S |
01552-00481 |
— | ||
|
14961
|
14961
22316-W7060 Clamp-Hose, B8811--01 ~ ; A15S.AT +T.LB.A15S |
22316-W7060 |
US $2.74 |
||
|
14961
|
14961
22472-W7500
Clip-Wiring Harness
8811--01 ~ ; A15S.AT +T.LB.A15S |
22472-W7500 |
— | ||
|
14961
|
14961
01552-00481
CLAMP
8811--01 ~ ; A15S |
01552-00481 |
— | ||
|
14961M
|
14961M
22472-W7500
Clip-Wiring Harness
8811--01 ~ ; A15S.AT +T.LB.A15S |
22472-W7500 |
— | ||
|
14961M
|
14961M
22472-W7500
Clip-Wiring Harness
8811--01 ~ ; A15S.AT +T.LB.A15S |
22472-W7500 |
— | ||
|
14961P
|
14961P
01552-00481
CLAMP
8811--01 ~ ; A15S |
01552-00481 |
— | ||
|
16599M
|
16599M
16599-N3600 Cap-Rubber8811--01 ~ ; A15S.AT +T.LB.A15S |
16599-N3600 |
US $5.18 |
||
|
22310A
|
22310A
B2320-Y4001
Hose-Idle Compensator To Connector
8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2320-Y4001 |
— | ||
| replacement | |||||
|
22310A
|
22310A
B2318N3301 Hose-Vacuum Control8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
22310A
|
22310A
B2320-Y4001
Hose-Idle Compensator To Connector
8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2320-Y4001 |
— | ||
| replacement | |||||
|
22310A
|
22310A
B2318N3301 Hose-Vacuum Control8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
22310B
|
22310B
B2318N3301 Hose-Vacuum Control8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
22310B
|
22310B
B2318N3301 Hose-Vacuum Control8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
22310B
|
22310B
B2318N3301 Hose-Vacuum Control8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
22310B
|
22310B
B2318N3301 Hose-Vacuum Control8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
22310B
|
22310B
B2318N3301 Hose-Vacuum Control8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
22310B
|
22310B
B2318N3301 Hose-Vacuum Control8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
22310B
|
22310B
B2318N3301 Hose-Vacuum Control8811--01 ~ ; A15S; L=5000 ｶｯﾄ ｼﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
22472J
|
22472J
22472-34A00 Clamp-High Tension Cable8811--01 ~ ; A15S.AT +T.LB.A15S |
22472-34A00 |
US $9.50 |
||
