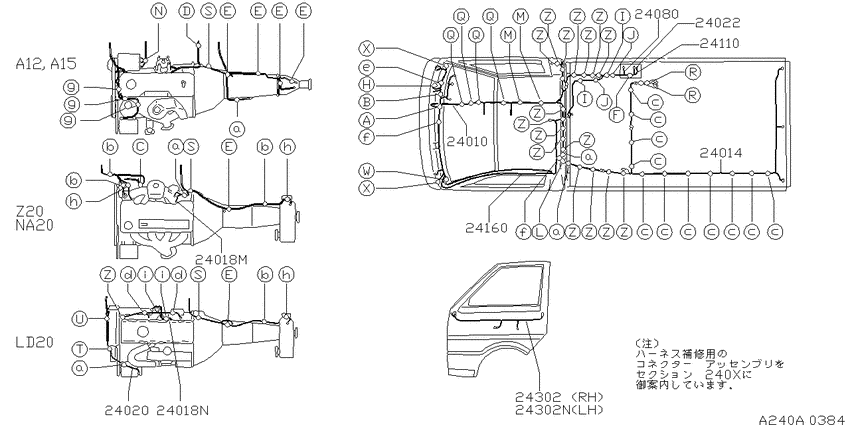

Wiring (1988-11-01 ~ ; ハーネス; T.SB +T.LB) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.LB
- floor/drive
- FD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24010
|
24010
24010-G8301 Harness Assy-Main8811--01 ~ ; T.LB.A15S |
24010-G8301 |
US $2,254 |
||
|
24010
|
24010
24010-G8311
Harness Assy-Main
8811--01 ~ ; *T.LB.A15S; ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ ｼﾖｳ |
24010-G8311 |
— | ||
|
24014
|
24014
24014-G8310 Harness Assy-Body8811--01 ~ ; T.LB.A15S |
24014-G8310 |
US $417.72 |
||
|
24014
|
24014
24014-G8362 Harness Assy-Body8811--01 ~ ; *T.LB.A15S; A ｼﾔｼ- ﾖｳ |
24014-G8362 |
US $417.72 |
||
|
24014
|
24014
01461-00061 SCREW8811--01 ~ 9008--01; MT.SB.(A12S+Z20S) +T.SB.A15S.DX +T.SB.A15S.(GL+GLL).MT +T.LB.FD.4WD +T.LB.A15S; NO.2 |
01461-00061 |
US $2.21 |
||
|
24022
|
24022
24022-G8300 Wire Assy-Fusible Link8811--01 ~ ; T.SB +T.LB; ｸﾞﾚ- ｸﾞﾘ-ﾝ |
24022-G8300 |
US $18.72 |
||
|
24080
|
24080
24080-G8600 Cable Assy-Battery Earth8811--01 ~ ; T.LB.A15S |
24080-G8600 |
US $77.76 |
||
|
24080
|
24080
24080-G8601 Cable Assy-Battery Earth8811--01 ~ ; *T.LB.A15S; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-G8601 |
US $77.76 |
||
|
24110
|
24110
24110-G8600 Cable Assy-Battery To Starter Motor8811--01 ~ 8911--01; T.LB.A15S |
24110-G8600 |
US $121.39 |
||
|
24110
|
24110
24110-G8601 Cable Assy-Battery To Starter Motor8811--01 ~ 8911--01; *T.LB.A15S; ｶﾝﾚｲﾁ ｼﾖｳ |
24110-G8601 |
US $121.39 |
||
|
24110
|
24110
24110-G8602 Cable Assy-Battery To Starter Motor8911--01 ~ ; T.LB.A15S |
24110-G8602 |
US $121.39 |
||
|
24110
|
24110
24110-G8603 Cable Assy-Battery To Starter Motor8911--01 ~ ; *T.LB.A15S; ｶﾝﾚｲﾁ ｼﾖｳ |
24110-G8603 |
US $121.39 |
||
|
24160
|
24160
24060-G8300
Harness Assy-Room Lamp
8811--01 ~ ; T.SB +T.LB |
24060-G8300 |
— |
