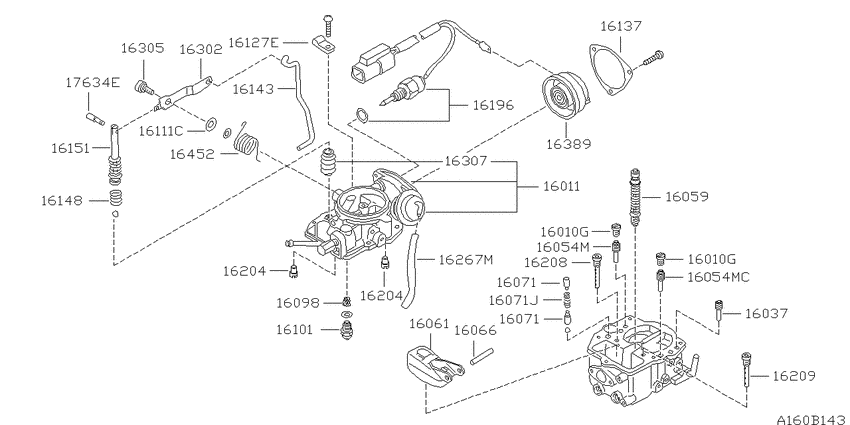

Carburetor (1988-11-01 ~ ; 構成部品(その2); T.SB.A15S.MT) Diagram Nissan VANETTE
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- A15S
- transmission
- MT
- grade
- DX
- body
- T.SB
- floor/drive
- LD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16010G
|
16010G
16286-H7200 Plug8811--01 ~ ; T.SB.A15S.MT |
16286-H7200 |
US $3.32 |
||
|
16010G
|
16010G
16286-H7200 Plug8811--01 ~ ; T.SB.A15S.MT |
16286-H7200 |
US $3.32 |
||
|
16011
|
16011
16011-G8301 Chamber Assy-Choke8811--01 ~ ; T.SB.A15S.MT |
16011-G8301 |
US $472.94 |
||
|
16011
|
16011
17160-11M02 Seal-O Ring8811--01 ~ ; T.SB.A15S.MT |
17160-11M02 |
US $3.17 |
||
|
16011
|
16011
17160-C0160 Seal-O Ring8811--01 ~ ; T.SB.A15S.MT |
17160-C0160 |
US $4.18 |
||
|
16037
|
16037
16037-52A00
Jet-Mixture
8811--01 ~ ; T.SB.A15S.MT |
16037-52A00 |
— | ||
|
16054M
|
16054M
16055-H8200 Jet-Slow8811--01 ~ ; T.SB.A15S.MT |
16055-H8200 |
US $18.43 |
||
|
16054M
|
16054M
16055-11M02 Jet-Slow8811--01 ~ ; T.SB.A15S.MT |
16055-11M02 |
US $15.41 |
||
|
16054MC
|
16054MC
16055-11M02 Jet-Slow8811--01 ~ ; T.SB.A15S.MT |
16055-11M02 |
US $15.41 |
||
|
16059
|
16059
16059-U6800 Valve-Power8811--01 ~ ; T.SB.A15S.MT |
16059-U6800 |
US $8.93 |
||
|
16061
|
16061
1606111M02 Float8811--01 ~ ; T.SB.A15S.MT |
1606111M02 |
US $11.36 |
||
|
16066
|
16066
16066-H7200 Shaft-Float8811--01 ~ ; T.SB.A15S.MT |
16066-H7200 |
US $3.18 |
||
|
16071
|
16071
16171-11M00 Weight-Injector8811--01 ~ ; T.SB.A15S.MT |
16171-11M00 |
US $2.08 |
||
|
16071
|
16071
16069-11M00 Spring-Injector8811--01 ~ ; T.SB.A15S.MT |
16069-11M00 |
US $2.08 |
||
|
16071
|
16071
16171-11M00 Weight-Injector8811--01 ~ ; T.SB.A15S.MT |
16171-11M00 |
US $2.08 |
||
|
16071
|
16071
16069-11M00 Spring-Injector8811--01 ~ ; T.SB.A15S.MT |
16069-11M00 |
US $2.08 |
||
|
16071J
|
16071J
16069-11M00 Spring-Injector8811--01 ~ ; T.SB.A15S.MT |
16069-11M00 |
US $2.08 |
||
|
16098
|
16098
16098-01B00 Filter8811--01 ~ ; T.SB.A15S.MT |
16098-01B00 |
US $9.43 |
||
|
16101
|
16101
16101-H9060 Valve-Needle8811--01 ~ ; T.SB.A15S.MT |
16101-H9060 |
US $13.68 |
||
|
16111C
|
16111C
16453-H1000
Washer
8811--01 ~ ; T.SB.A15S.MT |
16453-H1000 |
— | ||
|
16127E
|
16127E
16277-11M07 Clamp8811--01 ~ ; T.SB.A15S.MT |
16277-11M07 |
US $5.04 |
||
|
16137
|
16137
16390-H7200 Plate-Thermo Cover8811--01 ~ ; T.SB.A15S.MT |
16390-H7200 |
US $8.06 |
||
|
16143
|
16143
16143-G5200 Rod-Pump8811--01 ~ ; T.SB.A15S.MT |
16143-G5200 |
US $7.20 |
||
|
16148
|
16148
16148-H1000 Spring-Return, Piston8811--01 ~ ; T.SB.A15S.MT |
16148-H1000 |
US $6.66 |
||
|
16151
|
16151
16151-11M00 Piston8811--01 ~ ; T.SB.A15S.MT |
16151-11M00 |
US $23.04 |
||
|
16196
|
16196
16176-G8300 Iacv-Ficd Solenoid Valve8811--01 ~ ; T.SB.A15S.MT |
16176-G8300 |
US $81.50 |
||
|
16196
|
16196
16184-H8900 Holder Assy-Adjust Screw8811--01 ~ ; T.SB.A15S.MT |
16184-H8900 |
US $6.05 |
||
|
16196
|
16196
16196-G5101 Iacv-Ficd Solenoid Valve8811--01 ~ ; T.SB.A15S.MT |
16196-G5101 |
US $93.60 |
||
|
16204
|
16204
16204-H9500 Bleed-Slow Air8811--01 ~ ; T.SB.A15S.MT |
16204-H9500 |
US $5.90 |
||
|
16204
|
16204
16204-H9501 Bleed-Slow Air8811--01 ~ ; T.SB.A15S.MT |
16204-H9501 |
US $6.66 |
||
|
16204
|
16204
16204-H9500 Bleed-Slow Air8811--01 ~ ; T.SB.A15S.MT |
16204-H9500 |
US $5.90 |
||
|
16204
|
16204
16204-H9501 Bleed-Slow Air8811--01 ~ ; T.SB.A15S.MT |
16204-H9501 |
US $6.66 |
||
|
16208
|
16208
16036-G5200 Bleed-Main Air8811--01 ~ ; T.SB.A15S.MT |
16036-G5200 |
US $9.22 |
||
|
16209
|
16209
16036-11M03 Bleed-Main Air8811--01 ~ ; T.SB.A15S.MT |
16036-11M03 |
US $9.98 |
||
|
16267M
|
16267M
16267-11M07 Pipe-Rubber8811--01 ~ 8901--01; T.SB.A15S.MT |
16267-11M07 |
US $15.12 |
||
|
16267M
|
16267M
16267-11M08 Pipe-Rubber, Carburetor8901--01 ~ ; T.SB.A15S.MT |
16267-11M08 |
US $18.14 |
||
|
16302
|
16302
16302-G5200 Lever-Pump8811--01 ~ ; T.SB.A15S.MT |
16302-G5200 |
US $24.48 |
||
|
16305
|
16305
16305-M4960 Shaft-Pump Lever8811--01 ~ ; T.SB.A15S.MT |
16305-M4960 |
US $4.03 |
||
|
16307
|
16307
16307-04000
Cover-Pump
8811--01 ~ ; T.SB.A15S.MT |
16307-04000 |
— | ||
| replacement | |||||
|
16307
|
16307
16307-77A00 Cover-Pump8811--01 ~ ; T.SB.A15S.MT |
16307-77A00 |
US $6.79 |
||
|
16389
|
16389
16389-G8200 Cover-Thermo8811--01 ~ ; A15S.AT +T.LB.A15S +T.SB.A15S.MT |
16389-G8200 |
US $180 |
||
|
16452
|
16452
16452-01B10 Spring-Pump Lever8811--01 ~ ; T.SB.A15S.MT |
16452-01B10 |
US $4.16 |
||
|
17634E
|
17634E
16198-11M04 Pin-Cotter8811--01 ~ ; T.SB.A15S.MT |
16198-11M04 |
US $4.16 |
||
