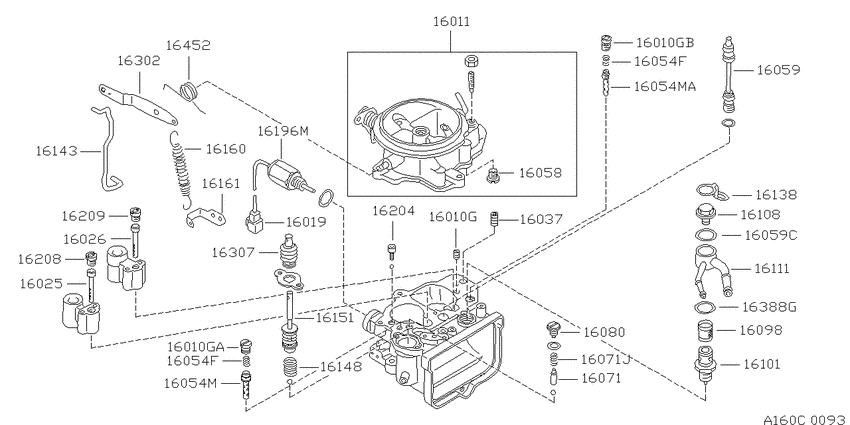

Carburetor (1988-11-01 ~ 1990-08-01; 構成部品(その1); Z20S) Diagram Nissan VANETTE
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- Z20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16010G
|
16010G
16286-A8600 Plug8811--01 ~ 9008--01; Z20S |
16286-A8600 |
US $2.45 |
||
|
16010G
|
16010G
16286-B8500 Plug8811--01 ~ 9008--01; Z20S |
16286-B8500 |
US $2.45 |
||
|
16010G
|
16010G
16286-B8501 Plug8811--01 ~ 9008--01; Z20S |
16286-B8501 |
US $2.45 |
||
|
16010GA
|
16010GA
16286-B8500 Plug8811--01 ~ 9008--01; Z20S |
16286-B8500 |
US $2.45 |
||
|
16010GB
|
16010GB
16286-B8501 Plug8811--01 ~ 9008--01; Z20S |
16286-B8501 |
US $2.45 |
||
|
16011
|
16011
16011-G8400 Chamber Assy-Choke8811--01 ~ 9008--01; Z20S |
16011-G8400 |
US $472.94 |
||
|
16019
|
16019
16019-D4010
Coupler
8811--01 ~ 9008--01; Z20S |
16019-D4010 |
— | ||
|
16025
|
16025
16025-W0500 Tube-Emulsion, Primary8811--01 ~ 9008--01; Z20S |
16025-W0500 |
US $6.91 |
||
|
16026
|
16026
16026-B8501 Tube-Emulsion, Secondary8811--01 ~ 9008--01; Z20S |
16026-B8501 |
US $7.20 |
||
|
16037
|
16037
16037-B8400 Jet-Coasting8811--01 ~ 9008--01; Z20S |
16037-B8400 |
US $8.06 |
||
|
16054F
|
16054F
16158-W7000 Spring8811--01 ~ 9008--01; Z20S |
16158-W7000 |
US $1.73 |
||
|
16054F
|
16054F
16158-W7000 Spring8811--01 ~ 9008--01; Z20S |
16158-W7000 |
US $1.73 |
||
|
16054M
|
16054M
16055-N7100 Jet-Slow8811--01 ~ 9008--01; Z20S |
16055-N7100 |
US $12.10 |
||
|
16054M
|
16054M
16055-R9400 Jet-Step8811--01 ~ 9008--01; Z20S |
16055-R9400 |
US $12.82 |
||
|
16054MA
|
16054MA
16055-R9400 Jet-Step8811--01 ~ 9008--01; Z20S |
16055-R9400 |
US $12.82 |
||
|
16058
|
16058
16058-N7200 Jet-Coasting Air Bleed8811--01 ~ 9008--01; Z20S |
16058-N7200 |
US $7.92 |
||
|
16059
|
16059
16059-R9720 Valve-Power8811--01 ~ 9008--01; Z20S |
16059-R9720 |
US $17.14 |
||
|
16059
|
16059
16049-21605 Gasket-Plug8811--01 ~ 9008--01; Z20S |
16049-21605 |
US $0.97 |
||
|
16059C
|
16059C
16049-21605 Gasket-Plug8811--01 ~ 9008--01; Z20S |
16049-21605 |
US $0.97 |
||
|
16071
|
16071
16071-B8500 Weight-Injector8811--01 ~ 9008--01; Z20S |
16071-B8500 |
US $2.45 |
||
|
16071
|
16071
16069-B8500 Spring-Injector8811--01 ~ 9008--01; Z20S |
16069-B8500 |
US $1.58 |
||
|
16071J
|
16071J
16069-B8500 Spring-Injector8811--01 ~ 9008--01; Z20S |
16069-B8500 |
US $1.58 |
||
|
16080
|
16080
16080-B8501 Screw-Injector Set8811--01 ~ 9008--01; Z20S |
16080-B8501 |
US $3.31 |
||
|
16098
|
16098
16098-B8500 Filter8811--01 ~ 9008--01; Z20S |
16098-B8500 |
US $4.90 |
||
|
16101
|
16101
16101-W7002 Valve-Needle8811--01 ~ 9008--01; Z20S |
16101-W7002 |
US $18.14 |
||
|
16108
|
16108
16108-21605 Screw-Filter Set8811--01 ~ 9008--01; Z20S |
16108-21605 |
US $4.03 |
||
|
16111
|
16111
16111-21C01 Nipple-Fuel8811--01 ~ 8904--01; Z20S |
16111-21C01 |
US $39.74 |
||
|
16111
|
16111
16111-G8400 Nipple-Fuel8904--01 ~ 9008--01; Z20S |
16111-G8400 |
US $21.74 |
||
|
16138
|
16138
16138-R8500 Lever-Lock8811--01 ~ 9008--01; Z20S |
16138-R8500 |
US $6.05 |
||
|
16143
|
16143
16143-05N00 Rod-Pump8811--01 ~ 9008--01; Z20S |
16143-05N00 |
US $7.34 |
||
|
16148
|
16148
16148-B8500 Spring-Return, Piston8811--01 ~ 9008--01; Z20S |
16148-B8500 |
US $4.32 |
||
|
16151
|
16151
16151-W0100 Plunger-Pump8811--01 ~ 9008--01; Z20S |
16151-W0100 |
US $18.58 |
||
|
16160
|
16160
16160-B8500 Spring-Throttle Primary8811--01 ~ 9008--01; Z20S |
16160-B8500 |
US $7.78 |
||
|
16160
|
16160
16160-W7005 Spring-Throttle Secondary8811--01 ~ 9008--01; Z20S |
16160-W7005 |
US $7.78 |
||
|
16160
|
16160
16160-W0100 Spring-Throttle Assist8811--01 ~ 9008--01; Z20S |
16160-W0100 |
US $5.04 |
||
|
16161
|
16161
16161-G8400 Hanger-Spring8904--01 ~ 9008--01; Z20S |
16161-G8400 |
US $9.07 |
||
|
16161
|
16161
16161-W7000 Hanger-Spring8811--01 ~ 8904--01; Z20S |
16161-W7000 |
US $4.90 |
||
|
16196M
|
16196M
16196-G8400 Iacv-Ficd Solenoid Valve8811--01 ~ 9008--01; Z20S |
16196-G8400 |
US $81.50 |
||
|
16204
|
16204
16204-B8500 Bleed-Slow Air8811--01 ~ 9008--01; Z20S |
16204-B8500 |
US $7.20 |
||
|
16208
|
16208
16050-N7100 Bleed-Main Air8811--01 ~ 9008--01; Z20S |
16050-N7100 |
US $7.20 |
||
|
16209
|
16209
16050-U9600 Bleed-Main Air8811--01 ~ 9008--01; Z20S |
16050-U9600 |
US $7.34 |
||
|
16302
|
16302
16302-W7001 Lever-Pump8811--01 ~ 9008--01; Z20S |
16302-W7001 |
US $11.95 |
||
|
16307
|
16307
16307-W7000 Cover-Pump8811--01 ~ 9008--01; Z20S |
16307-W7000 |
US $8.06 |
||
|
16388G
|
16388G
16094-B8500 Packing-Gas Adjusting Screw8811--01 ~ 9008--01; Z20S |
16094-B8500 |
US $0.72 |
||
|
16452
|
16452
16452-W7000 Spring-Pump Lever8811--01 ~ 9008--01; Z20S |
16452-W7000 |
US $4.90 |
