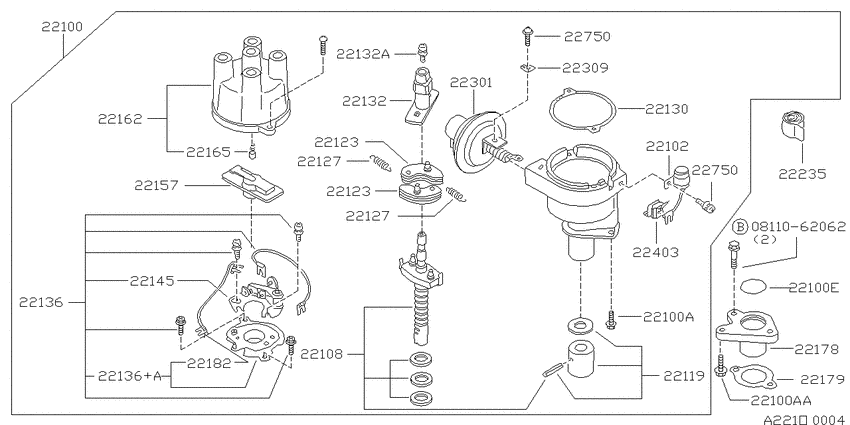

Distributor (1988-11-01 ~ 1990-08-01; Z20S) Diagram Nissan VANETTE
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- Z20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811062062
|
0811062062
08110-62062
Bolt-hexagon
|
08110-62062 |
— | ||
|
22100
|
22100
22100-G8410 Distributor Assy8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ T4T21880 |
22100-G8410 |
US $362.50 |
||
|
22100
|
22100
22201-22010 Screw8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22201-22010 |
US $1.73 |
||
|
22100
|
22100
01436-00181 SCREW8811--01 ~ 9008--01; Z20S; L=14,ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
01436-00181 |
US $2.45 |
||
|
22100
|
22100
01436-00211 SCREW8811--01 ~ 9008--01; Z20S; L=16,ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
01436-00211 |
US $1.73 |
||
|
22100
|
22100
2218071200 Seal-O Ring8811--01 ~ 9008--01; Z20S |
2218071200 |
from US $3.55 |
||
|
22100A
|
22100A
22201-22010 Screw8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22201-22010 |
US $1.73 |
||
|
22100A
|
22100A
01436-00181 SCREW8811--01 ~ 9008--01; Z20S; L=14,ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
01436-00181 |
US $2.45 |
||
|
22100A
|
22100A
01436-00211 SCREW8811--01 ~ 9008--01; Z20S; L=16,ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
01436-00211 |
US $1.73 |
||
|
22100AA
|
22100AA
01436-00181 SCREW8811--01 ~ 9008--01; Z20S; L=14,ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
01436-00181 |
US $2.45 |
||
|
22100AA
|
22100AA
01436-00211 SCREW8811--01 ~ 9008--01; Z20S; L=16,ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
01436-00211 |
US $1.73 |
||
|
22100E
|
22100E
2218071200 Seal-O Ring8811--01 ~ 9008--01; Z20S |
2218071200 |
from US $3.55 |
||
|
22102
|
22102
22102-01M11 Condenser Assy8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22102-01M11 |
US $11.09 |
||
|
22108
|
22108
22108-23G15 Shaft Assy8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22108-23G15 |
US $48.38 |
||
|
22119
|
22119
22119-W3810 Coupling Set8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22119-W3810 |
US $25.06 |
||
|
22123
|
22123
22109-W7010 Weight-Governor8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22109-W7010 |
US $9.50 |
||
|
22123
|
22123
22109-W7010 Weight-Governor8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22109-W7010 |
US $9.50 |
||
|
22127
|
22127
22110-G8410 Spring-Governor8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22110-G8410 |
US $7.49 |
||
|
22127
|
22127
22110-G8410 Spring-Governor8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22110-G8410 |
US $7.49 |
||
|
22130
|
22130
2218523G15 Packing8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
2218523G15 |
US $7.92 |
||
|
22132
|
22132
22132-G8410 Cam Set8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22132-G8410 |
US $35.86 |
||
|
22132
|
22132
22104-14615 Screw8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22104-14615 |
US $0.86 |
||
|
22132A
|
22132A
22104-14615 Screw8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22104-14615 |
US $0.86 |
||
|
22136
|
22136
2213601M11 Plate Assy-Breaker8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
2213601M11 |
US $40.32 |
||
|
22136
|
22136
22136-01M16 Plate Assy-Breaker8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22136-01M16 |
US $25.49 |
||
|
22136+A
|
22136+A
22136-01M16 Plate Assy-Breaker8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22136-01M16 |
US $25.49 |
||
|
22145
|
22145
2214589901
Contact Set
8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
2214589901 |
— | ||
|
22157
|
22157
2215723G15 Rotor-Head8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
2215723G15 |
from US $12.38 |
||
|
22162
|
22162
2216278A10 Cap Assy-Distributor8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
2216278A10 |
US $62.92 |
||
|
22165
|
22165
22165-M5610 Point Assy-Carbon8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22165-M5610 |
US $4.30 |
||
|
22178
|
22178
22178-W3800 Support-Distributor8811--01 ~ 9008--01; Z20S |
22178-W3800 |
US $32.30 |
||
|
22179
|
22179
2217907N00 Packing-Support, Distributor8912--01 ~ 9008--01; Z20S |
2217907N00 |
US $2.36 |
||
|
22179
|
22179
22179-E3000 Packing-Support, Distributor8811--01 ~ 8912--01; Z20S |
22179-E3000 |
US $2.45 |
||
| replacement | |||||
|
22179
|
22179
2217907N00 Packing-Support, Distributor8811--01 ~ 8912--01; Z20S |
2217907N00 |
US $2.36 |
||
|
22182
|
22182
22182-01M11 Wire Assy-Earth8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22182-01M11 |
US $5.04 |
||
|
22235
|
22235
B2235-U7410
Tape-Seal, Distributor
8811--01 ~ 9008--01; Z20S |
B2235-U7410 |
— | ||
| replacement | |||||
|
22235
|
22235
22235-U7400 Tape-Seal, Distributor8811--01 ~ 9008--01; Z20S |
22235-U7400 |
from US $0.50 |
||
|
22301
|
22301
22301-G8410 Control Assy-Vacuum8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22301-G8410 |
US $70.70 |
||
|
22309
|
22309
22309-H5010 Terminal-Earth8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22309-H5010 |
US $2.74 |
||
|
22403
|
22403
22403-05M10 Terminal Assy8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22403-05M10 |
US $5.76 |
||
|
22750
|
22750
22750-M0110 Screw Kit8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22750-M0110 |
US $9.02 |
||
|
22750
|
22750
22750-M0110 Screw Kit8811--01 ~ 9008--01; Z20S; ﾐﾂﾋﾞｼ |
22750-M0110 |
US $9.02 |
||
