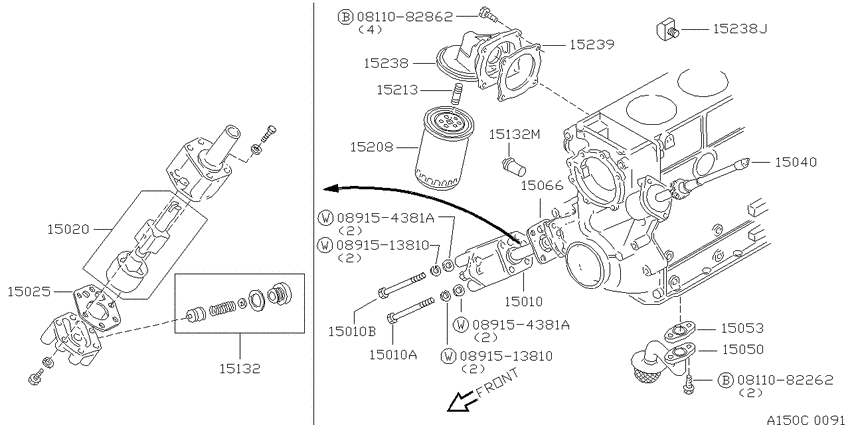

Lubricating system (1988-11-01 ~ 1990-08-01; Z20S) Diagram Nissan VANETTE
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- Z20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082262
|
0811082262
08110-82262
Bolt-hexagon
|
08110-82262 |
— | ||
|
0811082862
|
0811082862
08110-82862
Bolt-hexagon
|
08110-82862 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
15010
|
15010
15010-V0300 Pump Assy-Oil8811--01 ~ 9008--01; Z20S |
15010-V0300 |
US $159.84 |
||
| replacement | |||||
|
15010
|
15010
15010V030A Pump Assy-Oil8811--01 ~ 9008--01; Z20S |
15010V030A |
from US $128.58 |
||
|
15010
|
15010
15036-21000 Bolt8811--01 ~ 9008--01; Z20S |
15036-21000 |
US $2.88 |
||
|
15010
|
15010
15037-21000 Bolt-Oil Pump8811--01 ~ 9008--01; Z20S |
15037-21000 |
US $2.45 |
||
|
15010A
|
15010A
15036-21000 Bolt8811--01 ~ 9008--01; Z20S |
15036-21000 |
US $2.88 |
||
|
15010B
|
15010B
15037-21000 Bolt-Oil Pump8811--01 ~ 9008--01; Z20S |
15037-21000 |
US $2.45 |
||
|
15020
|
15020
15020-V0300 Shaft Assy-Oil Pump8811--01 ~ 9008--01; Z20S |
15020-V0300 |
US $36.43 |
||
| replacement | |||||
|
15020
|
15020
15020-S800A
Shaft assy-oil pump
8811--01 ~ 9008--01; Z20S |
15020-S800A |
— | ||
|
15025
|
15025
1502521000 Gasket-Oil Pump8811--01 ~ 9008--01; Z20S |
1502521000 |
US $1.67 |
||
|
15040
|
15040
15040-N8500 Spindle Assy-Oil Pump Drive8811--01 ~ 9008--01; Z20S |
15040-N8500 |
from US $29.42 |
||
|
15050
|
15050
15050-T5500 Strainer Assy-Oil8811--01 ~ 9008--01; Z20S |
15050-T5500 |
US $26.06 |
||
|
15053
|
15053
15059-73400 Gasket-Oil Strainer8811--01 ~ 9008--01; Z20S |
15059-73400 |
US $1.67 |
||
|
15066
|
15066
1506621001 Gasket-Oil Pump To Cylinder Block8811--01 ~ 9008--01; Z20S |
1506621001 |
US $1.67 |
||
|
15132
|
15132
15132-21005 Valve Assy-Oil Regulator8811--01 ~ 9008--01; Z20S |
15132-21005 |
US $12.33 |
||
|
15132
|
15132
15241-73400 Valve-Oil Pressure Regulator8811--01 ~ 9008--01; Z20S |
15241-73400 |
from US $4.11 |
||
|
15132M
|
15132M
15241-73400 Valve-Oil Pressure Regulator8811--01 ~ 9008--01; Z20S |
15241-73400 |
from US $4.11 |
||
|
15208
|
15208
AY100NS007 Filter Assy-Oil8811--01 ~ 9008--01; Z20S |
AY100NS007 |
US $11.13 |
||
|
15213
|
15213
15213-W2100 Stud-Oil Filter8811--01 ~ 9008--01; Z20S |
15213-W2100 |
US $8.78 |
||
|
15213
|
15213
15213-W2100 Stud-Oil Filter8811--01 ~ 9008--01; Z20S |
15213-W2100 |
US $8.78 |
||
|
15238
|
15238
15238-T5501 Bracket-Oil Filter8811--01 ~ 9008--01; Z20S |
15238-T5501 |
US $89.28 |
||
|
15238
|
15238
25071-N8500 Connector8811--01 ~ 9008--01; Z20S |
25071-N8500 |
US $18.43 |
||
|
15238J
|
15238J
25071-N8500 Connector8811--01 ~ 9008--01; Z20S |
25071-N8500 |
US $18.43 |
||
|
15239
|
15239
15239-07N00 Gasket-Oil Filter To Cylinder Block8912--01 ~ 9008--01; Z20S |
15239-07N00 |
US $8.45 |
||
|
15239
|
15239
15239-R5700 Gasket-Oil Filter To Cylinder Block8811--01 ~ 8912--01; Z20S |
15239-R5700 |
US $3.46 |
||
