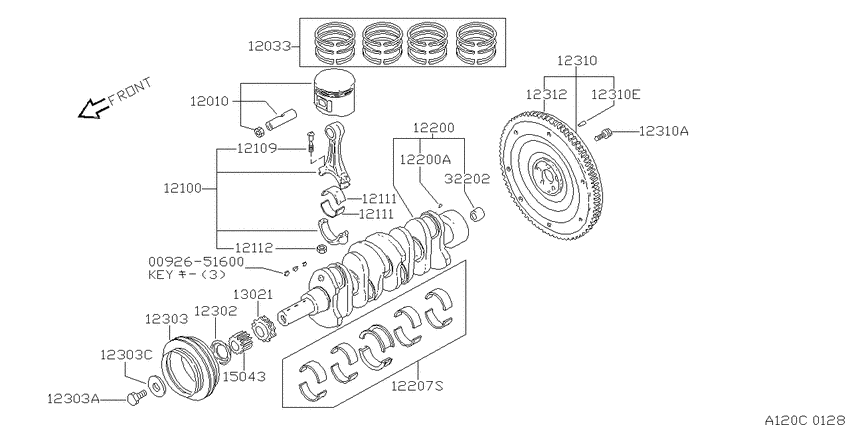

Piston,crankshaft & flywheel (1988-11-01 ~ 1990-08-01; Z20S) Diagram Nissan VANETTE
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- Z20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092651600
|
0092651600
0092651600 KEY |
0092651600 |
from US $0.63 |
||
|
12010
|
12010
12010-W1421 Piston, W/pin8811--01 ~ 9008--01; Z20S; STD |
12010-W1421 |
US $76.61 |
||
|
12010
|
12010
12010-W1422 Piston, W/pin8811--01 ~ 9008--01; Z20S; OS=0.50 |
12010-W1422 |
US $73.15 |
||
|
12010
|
12010
12010-W1423 Piston, W/pin8811--01 ~ 9008--01; Z20S; OS=1.00 |
12010-W1423 |
US $73.15 |
||
|
12033
|
12033
12033-24G00 Ring Set-Piston8811--01 ~ 9008--01; Z20S; STD |
12033-24G00 |
US $310.10 |
||
|
12033
|
12033
12036-24G00 Ring Set-Piston8811--01 ~ 9008--01; Z20S; OS=0.50 |
12036-24G00 |
US $310.10 |
||
|
12033
|
12033
12038-24G00 Ring Set-Piston8811--01 ~ 9008--01; Z20S; OS=1.00 |
12038-24G00 |
US $310.10 |
||
|
12100
|
12100
12100-26G10 Rod Compl-Connecting8811--01 ~ 8906--01; Z20S |
12100-26G10 |
US $119.38 |
||
|
12100
|
12100
12100-26G12 Rod Compl-Connecting8906--01 ~ 9008--01; Z20S |
12100-26G12 |
US $106.15 |
||
| replacement | |||||
|
12100
|
12100
12100-26G0A Rod Compl-Connecting8906--01 ~ 9008--01; Z20S |
12100-26G0A |
US $160.78 |
||
|
12109
|
12109
12109-40F00 Bolt-Connecting Rod8811--01 ~ 9008--01; Z20S |
12109-40F00 |
US $4.03 |
||
|
12111
|
12111
12111-V0700 Bearing-Connecting Rod8811--01 ~ 9008--01; Z20S; STD |
12111-V0700 |
from US $8.70 |
||
|
12111
|
12111
12117V0700 Bearing-Connecting Rod8811--01 ~ 9008--01; Z20S; US=0.25. |
12117V0700 |
from US $7.29 |
||
|
12111
|
12111
12121-V0700 Bearing-Connecting Rod8811--01 ~ 9008--01; Z20S; US=0.06 |
12121-V0700 |
US $8.06 |
||
|
12111
|
12111
12122-V0700 Bearing-Connecting Rod8811--01 ~ 9008--01; Z20S; US=0.12. |
12122-V0700 |
US $8.06 |
||
|
12111
|
12111
12111-V0700 Bearing-Connecting Rod8811--01 ~ 9008--01; Z20S; STD |
12111-V0700 |
from US $8.70 |
||
|
12111
|
12111
12117V0700 Bearing-Connecting Rod8811--01 ~ 9008--01; Z20S; US=0.25. |
12117V0700 |
from US $7.29 |
||
|
12111
|
12111
12121-V0700 Bearing-Connecting Rod8811--01 ~ 9008--01; Z20S; US=0.06 |
12121-V0700 |
US $8.06 |
||
|
12111
|
12111
12122-V0700 Bearing-Connecting Rod8811--01 ~ 9008--01; Z20S; US=0.12. |
12122-V0700 |
US $8.06 |
||
|
12112
|
12112
1211240F00 Nut-Connecting Rod8811--01 ~ 9008--01; Z20S |
1211240F00 |
from US $1.09 |
||
|
12200
|
12200
12201-U6080 Crankshaft Assy8811--01 ~ 9008--01; Z20S |
12201-U6080 |
US $2,170 |
||
|
12200
|
12200
1220540F00 Plug-Crankshaft Oil Hole8811--01 ~ 9008--01; Z20S |
1220540F00 |
from US $1.09 |
||
|
12200A
|
12200A
1220540F00 Plug-Crankshaft Oil Hole8811--01 ~ 9008--01; Z20S |
1220540F00 |
from US $1.09 |
||
|
12207S
|
12207S
12207-U6001 Bearing Set-Crankshaft8811--01 ~ 9008--01; Z20S; STD |
12207-U6001 |
from US $30.19 |
||
|
12207S
|
12207S
12209-U6001 Bearing Set-Crankshaft8811--01 ~ 9008--01; Z20S; US=0.25. |
12209-U6001 |
from US $32.13 |
||
|
12302
|
12302
12302-A3500 Thrower-Oil, Crankshaft8811--01 ~ 9008--01; Z20S |
12302-A3500 |
US $1.49 |
||
|
12303
|
12303
12303-21C01 Pulley-Crankshaft8811--01 ~ 9008--01; Z20S |
12303-21C01 |
US $252 |
||
|
12303
|
12303
12309-21000 Bolt-Pulley, Crankshaft8811--01 ~ 9008--01; Z20S |
12309-21000 |
US $4.03 |
||
| replacement | |||||
|
12303
|
12303
12309-91P01 Bolt-Pulley, Crankshaft8811--01 ~ 9008--01; Z20S |
12309-91P01 |
US $5.04 |
||
|
12303
|
12303
12308-65000 Washer-Pulley, Crankshaft8811--01 ~ 9008--01; Z20S |
12308-65000 |
US $4.57 |
||
|
12303A
|
12303A
12309-21000 Bolt-Pulley, Crankshaft8811--01 ~ 9008--01; Z20S |
12309-21000 |
US $4.03 |
||
| replacement | |||||
|
12303A
|
12303A
12309-91P01 Bolt-Pulley, Crankshaft8811--01 ~ 9008--01; Z20S |
12309-91P01 |
US $5.04 |
||
|
12303C
|
12303C
12308-65000 Washer-Pulley, Crankshaft8811--01 ~ 9008--01; Z20S |
12308-65000 |
US $4.57 |
||
|
12310
|
12310
12310-G8801 Flywheel Assy9004--01 ~ 9008--01; Z20S |
12310-G8801 |
US $351.17 |
||
| replacement | |||||
|
12310
|
12310
12310-G8805
Flywheel assy
9004--01 ~ 9008--01; Z20S |
12310-G8805 |
— | ||
|
12310
|
12310
12310-P0155 Flywheel Assy8811--01 ~ 8909--01; Z20S |
12310-P0155 |
US $465.86 |
||
| replacement | |||||
|
12310
|
12310
12310-P0182 Flywheel Assy8811--01 ~ 8909--01; Z20S |
12310-P0182 |
US $294.53 |
||
|
12310
|
12310
12310-P0182 Flywheel Assy8909--01 ~ 9004--01; Z20S |
12310-P0182 |
US $294.53 |
||
|
12310
|
12310
12315-42L10 Bolt-Flywheel8811--01 ~ 9008--01; Z20S |
12315-42L10 |
US $3.31 |
||
|
12310
|
12310
1231310600 Dowel-Clutch To Flywheel8811--01 ~ 9008--01; Z20S |
1231310600 |
from US $0.33 |
||
|
12310A
|
12310A
12315-42L10 Bolt-Flywheel8811--01 ~ 9008--01; Z20S |
12315-42L10 |
US $3.31 |
||
|
12310E
|
12310E
1231310600 Dowel-Clutch To Flywheel8811--01 ~ 9008--01; Z20S |
1231310600 |
from US $0.33 |
||
|
12312
|
12312
1231219G00 Gear-Ring8811--01 ~ 8909--01; Z20S |
1231219G00 |
US $103.68 |
||
|
12312
|
12312
12312-19G01 Gear-Ring8909--01 ~ 9008--01; Z20S |
12312-19G01 |
from US $95.04 |
||
|
13021
|
13021
13021-03G00 Sprocket-Crankshaft8811--01 ~ 9008--01; Z20S |
13021-03G00 |
US $39.89 |
||
|
15043
|
15043
15043-21000 Gear-Crankshaft, Oil Pump8811--01 ~ 9008--01; Z20S |
15043-21000 |
from US $39.09 |
||
|
32202
|
32202
3220230000
Bushing-Crankshaft
8811--01 ~ 9008--01; Z20S; ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶﾉｳ ﾔｼﾏﾃﾞﾝｿｳ |
3220230000 |
— | ||
| replacement | |||||
|
32202
|
32202
32202B950A Bushing-Crankshaft8811--01 ~ 9008--01; Z20S; ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶﾉｳ ﾔｼﾏﾃﾞﾝｿｳ |
32202B950A |
from US $2.97 |
||
|
32202
|
32202
32202-B9500
Bushing-Crankshaft
8811--01 ~ 9008--01; Z20S; ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶﾉｳ ﾋﾀﾁﾌﾝﾏﾂﾔｷﾝ |
32202-B9500 |
— | ||
| replacement | |||||
|
32202
|
32202
32202B950A Bushing-Crankshaft8811--01 ~ 9008--01; Z20S; ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶﾉｳ ﾋﾀﾁﾌﾝﾏﾂﾔｷﾝ |
32202B950A |
from US $2.97 |
||
