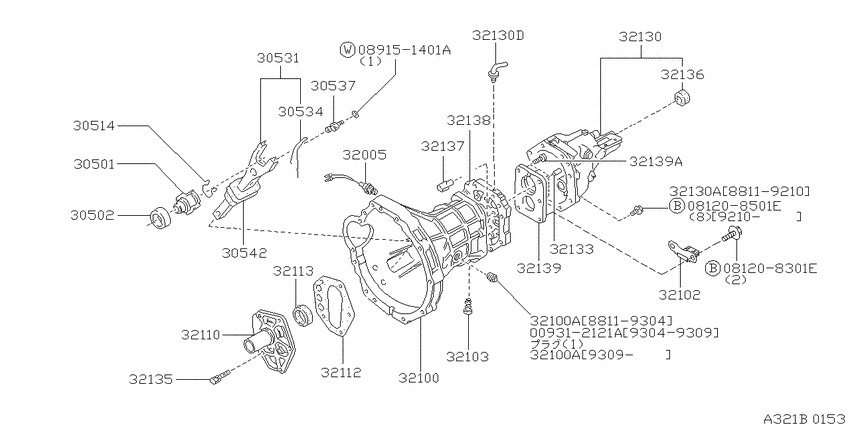

Transmission case & clutch release (1988-11-01 ~ ; LD20.MT) Diagram Nissan VANETTE
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- LD20
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- LD.2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.92 |
||
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
081208501E
|
081208501E
08120-8501E
Bolt-hexagon
|
08120-8501E |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30501
|
30501
30501-B5000 Sleeve-Clutch Release8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
30501-B5000 |
US $27.79 |
||
|
30502
|
30502
3050221000
Bearing-Clutch Release
8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT; [B106] |
3050221000 |
— | ||
| replacement | |||||
|
30502
|
30502
30502-69F1A Bearing-Clutch Release8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT; [B106] |
30502-69F1A |
from US $27.32 |
||
|
30514
|
30514
3051414600 Spring-Holder, Clutch Release Bearing8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
3051414600 |
from US $3.18 |
||
|
30531
|
30531
30531-P0100 Lever-Withdrawal, Clutch8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
30531-P0100 |
from US $25.78 |
||
|
30534
|
30534
30534E9000 Spring-Retainer, Withdrawal Lever8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
30534E9000 |
from US $1.89 |
||
|
30537
|
30537
3053703E00 PIN-BALL,WITHDRAWAL LEVER8811--01 ~ 9107--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
3053703E00 |
US $5.81 |
||
|
30537
|
30537
305370H601 Pin-Ball, Withdrawal Lever9107--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
305370H601 |
from US $3.66 |
||
|
30542
|
30542
30542E9000 Cover-Dust, Withdrawal Lever8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
30542E9000 |
from US $6.51 |
||
|
32005
|
32005
32005-K1011 Switch Assy-Reverse Lamp8811--01 ~ 9405--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
32005-K1011 |
US $40.75 |
||
|
32005
|
32005
32005-K1021 Switch Assy-Reverse Lamp9405--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32005-K1021 |
US $40.75 |
||
|
32100
|
32100
32101-49L08 Case Assy-Transmission8811--01 ~ 9603--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
32101-49L08 |
US $429.05 |
||
|
32100
|
32100
32101-49L81 Case Assy-Transmission9603--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32101-49L81 |
US $406.39 |
||
|
32100
|
32100
0164200021
PLUG-THREAD
8811--01 ~ 9304--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
0164200021 |
— | ||
| replacement | |||||
|
32100
|
32100
33312-33G0B PLUG-THREAD8811--01 ~ 9304--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
33312-33G0B |
US $4.85 |
||
|
32100
|
32100
31306-65F00 Plug-Thread9309--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
31306-65F00 |
from US $2.68 |
||
|
32100A
|
32100A
0164200021
PLUG-THREAD
8811--01 ~ 9304--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
0164200021 |
— | ||
| replacement | |||||
|
32100A
|
32100A
33312-33G0B PLUG-THREAD8811--01 ~ 9304--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
33312-33G0B |
US $4.85 |
||
|
32100A
|
32100A
31306-65F00 Plug-Thread9309--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
31306-65F00 |
from US $2.68 |
||
|
32100A
|
32100A
0164200021
PLUG-THREAD
8811--01 ~ 9304--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
0164200021 |
— | ||
| replacement | |||||
|
32100A
|
32100A
33312-33G0B PLUG-THREAD8811--01 ~ 9304--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
33312-33G0B |
US $4.85 |
||
|
32100A
|
32100A
31306-65F00 Plug-Thread9309--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
31306-65F00 |
from US $2.68 |
||
|
32102
|
32102
31379-2T001 Magnet-Transmission9108--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
31379-2T001 |
US $4.18 |
||
|
32103
|
32103
32103U8400
Plug-Drain
8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32103U8400 |
— | ||
| replacement | |||||
|
32103
|
32103
32103-U840B Plug-Drain8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32103-U840B |
US $7.35 |
||
|
32110
|
32110
3211191P00 Cover Assy-Front9211--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
3211191P00 |
from US $40.45 |
||
|
32110
|
32110
32111-E9804 Cover Assy-Front8811--01 ~ 9211--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
32111-E9804 |
US $42.77 |
||
|
32112
|
32112
32112-08U00
Gasket-Front Cover
9207--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32112-08U00 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover9207--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
3211208U01 |
from US $6.49 |
||
|
32112
|
32112
32112-V5001
Gasket-Front Cover
8811--01 ~ 9207--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
32112-V5001 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover8811--01 ~ 9207--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
3211208U01 |
from US $6.49 |
||
|
32113
|
32113
32114Y4000 Seal-Oil, Front Cover8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32114Y4000 |
from US $3.19 |
||
|
32130
|
32130
32130-15C01 Extension Assy-Rear8811--01 ~ 9103--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
32130-15C01 |
US $247.68 |
||
|
32130
|
32130
32130-15C11 Extension Assy-Rear9103--01 ~ 9506--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
32130-15C11 |
US $247.68 |
||
|
32130
|
32130
32130-15C21 Extension Assy-Rear9506--01 ~ 9603--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
32130-15C21 |
US $247.68 |
||
|
32130
|
32130
3213015C23 Extension Assy-Rear9603--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
3213015C23 |
US $247.68 |
||
|
32130
|
32130
01121-00441 BOLT8811--01 ~ 9210--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
01121-00441 |
US $2.45 |
||
|
32130
|
32130
38352G5100 Breather-Air8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
38352G5100 |
US $4.18 |
||
|
32130A
|
32130A
01121-00441 BOLT8811--01 ~ 9210--01; FD.2WD.LD20.MT +T.SB.LD20.MT |
01121-00441 |
US $2.45 |
||
|
32130D
|
32130D
38352G5100 Breather-Air8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
38352G5100 |
US $4.18 |
||
|
32133
|
32133
32106-20100 Pin-Dowel8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32106-20100 |
US $1.73 |
||
|
32135
|
32135
32135-58S60 Bolt-Fixing, Front Cover8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32135-58S60 |
US $1.73 |
||
|
32136
|
32136
32136U0100
Seal-Oil, Rear Extension
8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32136U0100 |
— | ||
| replacement | |||||
|
32136
|
32136
32136-U010A Seal-Oil, Rear Extension8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32136-U010A |
from US $4.92 |
||
|
32137
|
32137
32137-E9000 Gutter-Oil, Adapter8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32137-E9000 |
from US $1.82 |
||
|
32138
|
32138
32138-55S01 Plate-Adapter8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32138-55S01 |
US $70.99 |
||
|
32139
|
32139
32139-55S01 Retainer-Bearing8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
32139-55S01 |
US $16.99 |
||
|
32139
|
32139
0114100021 BOLT-FIXING,RETAINER8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
0114100021 |
US $2.91 |
||
|
32139A
|
32139A
0114100021 BOLT-FIXING,RETAINER8811--01 ~ ; FD.2WD.LD20.MT +T.SB.LD20.MT |
0114100021 |
US $2.91 |
||
