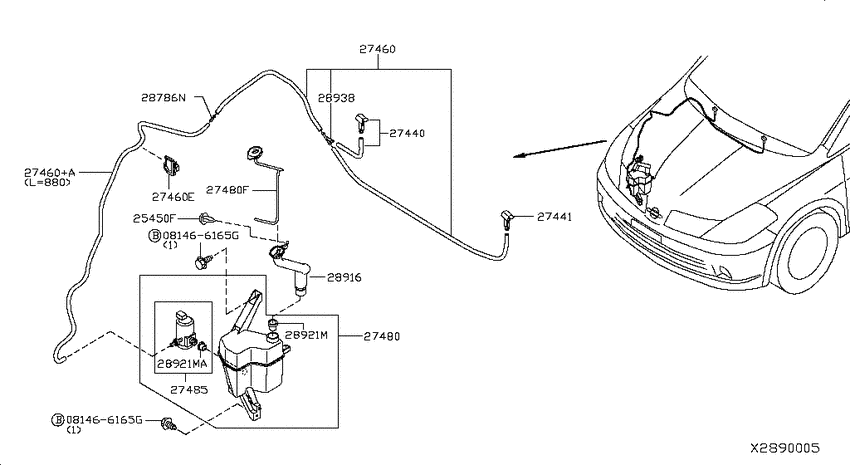

Windshield washer (2006-05-01 ~ ; FR; HB) Diagram Nissan VERSA
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Engine
- MR18DE
- transmission
- MT
- grade
- SL
- body
- HB
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466165G
|
081466165G
081466165G Bolt-hexagon |
081466165G |
from US $0.67 |
||
|
081466165G
|
081466165G
081466165G Bolt-hexagon |
081466165G |
from US $0.67 |
||
|
25450F
|
25450F
6686001W01 Clip2006-05-01 ~ ; HB; , |
6686001W01 |
US $0.97 |
||
|
27440
|
27440
28930-EE90A
Nozzle Assy-Washer, Rh
2006-05-01 ~ 2006-12-01; HB; , |
28930-EE90A |
— | ||
| replacement | |||||
|
27440
|
27440
28931ED000 Nozzle Assy-Washer2006-05-01 ~ 2006-12-01; HB; , |
28931ED000 |
US $16.70 |
||
|
27440
|
27440
28932-EL00A
Nozzle Assy-Washer, Rh
2006-12-01 ~ 2008-09-01; HB; , |
28932-EL00A |
— | ||
|
27440
|
27440
28932-EL00B
Nozzle Assy-Washer, Rh
2008-09-01 ~ ; HB; , |
28932-EL00B |
— | ||
|
27441
|
27441
28931-EE900
Nozzle Assy-Washer, Lh
2006-05-01 ~ 2006-12-01; HB; , |
28931-EE900 |
— | ||
| replacement | |||||
|
27441
|
27441
28931ED000 Nozzle Assy-Washer2006-05-01 ~ 2006-12-01; HB; , |
28931ED000 |
US $16.70 |
||
|
27441
|
27441
28931-EL00A
Nozzle Assy-Washer, Lh
2006-12-01 ~ 2008-09-01; HB; , |
28931-EL00A |
— | ||
|
27441
|
27441
28931-EL00B
Nozzle Assy-Washer, Lh
2008-09-01 ~ ; HB; , |
28931-EL00B |
— | ||
|
27460
|
27460
28935-EL000
Tube-Washer, Windshield
2006-05-01 ~ ; HB; , |
28935-EL000 |
— | ||
|
27460
|
27460
28940-EL000
Tube-Washer, Windshield
2008-09-01 ~ ; HB; , |
28940-EL000 |
— | ||
|
27460
|
27460
B7460-89910 Hose-Washer2006-05-01 ~ 2007-07-01; HB; L=5000 CUT USE |
B7460-89910 |
US $24.62 |
||
|
27460
|
27460
28945AQ000 Clip2006-05-01 ~ ; HB; , |
28945AQ000 |
from US $0.78 |
||
|
27460
|
27460
2894530Y10 Clip2006-05-01 ~ ; HB; , |
2894530Y10 |
US $4.30 |
||
|
27460
|
27460
28945AQ000 Clip2006-05-01 ~ ; HB; , |
28945AQ000 |
from US $0.78 |
||
|
27460+A
|
27460+A
28940-EL000
Tube-Washer, Windshield
2008-09-01 ~ ; HB; , |
28940-EL000 |
— | ||
|
27460+A
|
27460+A
B7460-89910 Hose-Washer2006-05-01 ~ 2007-07-01; HB; L=5000 CUT USE |
B7460-89910 |
US $24.62 |
||
|
27460E
|
27460E
28945AQ000 Clip2006-05-01 ~ ; HB; , |
28945AQ000 |
from US $0.78 |
||
|
27480
|
27480
28910-EL000 Tank Assy-Windshield Washer2006-05-01 ~ ; HB; , |
28910-EL000 |
US $137.12 |
||
|
27480
|
27480
28913-EL000 Cap-Windshield Washer Tank2006-05-01 ~ ; HB; , |
28913-EL000 |
US $2.94 |
||
|
27480F
|
27480F
28913-EL000 Cap-Windshield Washer Tank2006-05-01 ~ ; HB; , |
28913-EL000 |
US $2.94 |
||
|
27485
|
27485
28920-EL00A Pump Assy-Washer2006-05-01 ~ ; HB; , |
28920-EL00A |
from US $27.50 |
||
|
28786N
|
28786N
28937-70J00
Connector-Washer Tube
2006-05-01 ~ ; HB; , |
28937-70J00 |
— | ||
|
28916
|
28916
28915-EL000 Inlet-Washer Tank2006-05-01 ~ ; HB; , |
28915-EL000 |
US $25.10 |
||
|
28921M
|
28921M
28921-AX600
Packing-Washer Tank
2006-05-01 ~ ; HB; , |
28921-AX600 |
— | ||
|
28921M
|
28921M
28921-70J00 Packing-Washer Motor2006-05-01 ~ ; HB; , |
28921-70J00 |
from US $2.96 |
||
|
28921MA
|
28921MA
28921-70J00 Packing-Washer Motor2006-05-01 ~ ; HB; , |
28921-70J00 |
from US $2.96 |
||
|
28938
|
28938
28938-AU300 Valve-Washer2006-05-01 ~ ; HB; , |
28938-AU300 |
from US $5.46 |
||
