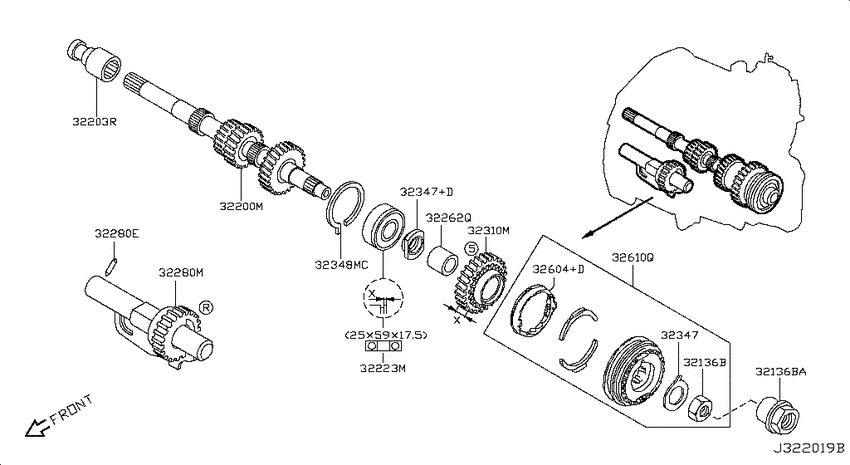

Transmission gear (2008-11-01 ~ 2009-09-01; INPUT SHAFT (JH3-152); HR16DE.MT) Diagram Nissan VERSA
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Engine
- HR16DE
- transmission
- MT
- grade
- ENTRY
- body
- SED
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32136B
|
32136B
3223600QAB Nut2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
3223600QAB |
US $3.46 |
||
|
32136B
|
32136B
32236-00QAA Nut2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
32236-00QAA |
from US $3.46 |
||
|
32136BA
|
32136BA
32236-00QAA Nut2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
32236-00QAA |
from US $3.46 |
||
|
32200M
|
32200M
32201-00Q0P Gear-Input Shaft2009-09-01 ~ ; HR16DE.MT; , |
32201-00Q0P |
US $1,213.11 |
||
|
32200M
|
32200M
32201-00QAX Gear-Input Shaft2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
32201-00QAX |
US $276.48 |
||
|
32203R
|
32203R
32203-00QAH Bearing-Input Gear2009-09-01 ~ ; HR16DE.MT; , |
32203-00QAH |
from US $35.63 |
||
|
32223M
|
32223M
3220300Q0A Bearing-Input Shaft2008-11-01 ~ 2009-09-01; HR16DE.MT; X=3.05 |
3220300Q0A |
US $38.18 |
||
| replacement | |||||
|
32223M
|
32223M
32203-00Q0R Bearing-Input Shaft2008-11-01 ~ 2009-09-01; HR16DE.MT; X=3.05 |
32203-00Q0R |
US $24.29 |
||
|
32223M
|
32223M
32203-00QAA Bearing-Input Shaft2009-09-01 ~ ; HR16DE.MT; X=2.45 |
32203-00QAA |
US $16.70 |
||
|
32262Q
|
32262Q
32264-00QAA Bush-2Nd & 3Rd Gear2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
32264-00QAA |
from US $16.56 |
||
|
32280E
|
32280E
3291700QAE Pin-Lock2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
3291700QAE |
US $2.45 |
||
|
32280M
|
32280M
32280-00QAA Gear Assy-Reverse, Idler Rear2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
32280-00QAA |
US $85.10 |
||
|
32310M
|
32310M
32340-00Q0B Gear Assy-5Th, Input Shaft2009-09-01 ~ ; HR16DE.MT; , |
32340-00Q0B |
US $164.16 |
||
|
32310M
|
32310M
32340-00Q0F
ｷﾞﾔ ｱﾂｾﾝﾌﾞﾘｰ,ﾌｲﾌｽ ｲﾝﾌﾟﾂﾄ ｼﾔﾌﾄ
2008-11-01 ~ 2009-09-01; HR16DE.MT; X=16.475,TEETH PINION=39 |
32340-00Q0F |
— | ||
|
32347
|
32347
32225-00QAD Spacer-Main Shaft2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
32225-00QAD |
US $5.90 |
||
|
32347
|
32347
32207-00QAG Spacer-Main Shaft2008-11-01 ~ 2009-09-01; HR16DE.MT; X=1.5 |
32207-00QAG |
US $5.68 |
||
|
32347
|
32347
32207-00QAG Spacer-Main Shaft2008-11-01 ~ 2009-09-01; HR16DE.MT; X=1.5 |
32207-00QAG |
US $5.68 |
||
|
32347
|
32347
32207-00QAA Spacer-Main Shaft2008-11-01 ~ 2009-09-01; HR16DE.MT; X=25 |
32207-00QAA |
US $5.90 |
||
|
32347
|
32347
32246-00QAA Spacer-Main Shaft2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
32246-00QAA |
US $5.90 |
||
|
32347+D
|
32347+D
32246-00QAA Spacer-Main Shaft2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
32246-00QAA |
US $5.90 |
||
|
32348MC
|
32348MC
32228-00QAD Ring-Snap2008-11-01 ~ 2009-09-01; HR16DE.MT; X=59 |
32228-00QAD |
US $4.18 |
||
|
32604+D
|
32604+D
32604-00Q0G Ring-Baulk2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
32604-00Q0G |
US $46.37 |
||
|
32610Q
|
32610Q
32610-00Q0E Sleeve & Hub-Coupling2008-11-01 ~ 2009-09-01; HR16DE.MT; , |
32610-00Q0E |
from US $98.13 |
||
