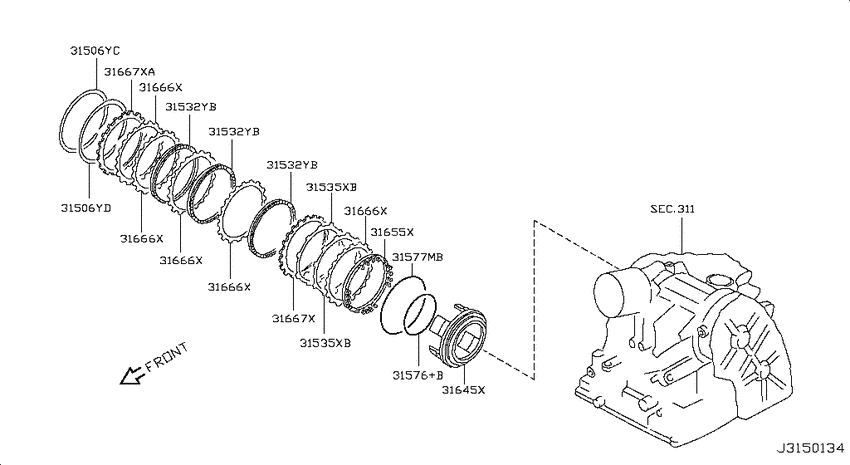

Clutch & band servo (2008-09-01 ~ 2009-09-01; LOW & REVERSE BRAKE PARTS; AT) Diagram Nissan VERSA
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Engine
- HR16DE
- transmission
- AT
- grade
- BASE
- body
- SED
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
31506YC
|
31506YC
31506-31X16 Ring-Snap2008-11-01 ~ 2009-09-01; HR16DE.AT; , |
31506-31X16 |
US $2.45 |
||
|
31506YD
|
31506YD
31506-31X16 Ring-Snap2009-09-01 ~ ; AT; , |
31506-31X16 |
US $2.45 |
||
|
31532YB
|
31532YB
31532-3CX0A Plate Assy-Drive2008-11-01 ~ ; HR16DE.AT; , |
31532-3CX0A |
US $26.06 |
||
|
31532YB
|
31532YB
31532-3CX0A Plate Assy-Drive2008-11-01 ~ ; HR16DE.AT; , |
31532-3CX0A |
US $26.06 |
||
|
31532YB
|
31532YB
31532-3CX0A Plate Assy-Drive2008-11-01 ~ ; HR16DE.AT; , |
31532-3CX0A |
US $26.06 |
||
|
31535XB
|
31535XB
31535-3CX00 Plate-Dished2008-09-01 ~ ; AT; , |
31535-3CX00 |
US $29.81 |
||
|
31535XB
|
31535XB
31535-3CX00 Plate-Dished2008-09-01 ~ ; AT; , |
31535-3CX00 |
US $29.81 |
||
|
31576+B
|
31576+B
31527-31X72 Seal-Lathe Cut Ring2008-09-01 ~ ; AT; , |
31527-31X72 |
from US $9.07 |
||
|
31577MB
|
31577MB
31528-31X07 Seal-Lip2008-09-01 ~ ; AT; , |
31528-31X07 |
US $8.06 |
||
|
31645X
|
31645X
31645-31X05 Piston-Low & Reverse Brake2008-09-01 ~ ; AT; , |
31645-31X05 |
US $56.16 |
||
|
31655X
|
31655X
31655-31X02 Retainer Assy-Spring, Low & Reverse Brake2008-09-01 ~ ; AT; , |
31655-31X02 |
US $30.24 |
||
|
31666X
|
31666X
31666-31X04 Plate-Driven2008-11-01 ~ ; HR16DE.AT; , |
31666-31X04 |
from US $20.18 |
||
|
31666X
|
31666X
31666-31X04 Plate-Driven2008-11-01 ~ ; HR16DE.AT; , |
31666-31X04 |
from US $20.18 |
||
|
31666X
|
31666X
31666-31X04 Plate-Driven2008-11-01 ~ ; HR16DE.AT; , |
31666-31X04 |
from US $20.18 |
||
|
31666X
|
31666X
31666-31X04 Plate-Driven2008-11-01 ~ ; HR16DE.AT; , |
31666-31X04 |
from US $20.18 |
||
|
31666X
|
31666X
31666-31X04 Plate-Driven2008-11-01 ~ ; HR16DE.AT; , |
31666-31X04 |
from US $20.18 |
||
|
31667X
|
31667X
31667-31X62 Plate-Retaining2008-11-01 ~ 2009-09-01; HR16DE.AT; SELECT T=4.6 |
31667-31X62 |
US $17.71 |
||
|
31667X
|
31667X
31667-31X22 Plate-Retaining2008-09-01 ~ ; AT; SELECT T=3.6 |
31667-31X22 |
US $17.71 |
||
|
31667X
|
31667X
31667-31X23 Plate-Retaining2009-09-01 ~ ; *HR16DE.AT; SELECT T=3.8 |
31667-31X23 |
US $17.71 |
||
|
31667X
|
31667X
31667-31X24 Plate-Retaining2009-09-01 ~ ; *HR16DE.AT; SELECT T=4.0 |
31667-31X24 |
US $17.71 |
||
|
31667X
|
31667X
31667-31X60 Plate-Retaining2009-09-01 ~ ; *HR16DE.AT; SELECT T=4.2 |
31667-31X60 |
US $17.71 |
||
|
31667X
|
31667X
31667-31X61 Plate-Retaining2009-09-01 ~ ; *HR16DE.AT; SELECT T=4.4 |
31667-31X61 |
US $17.71 |
||
|
31667X
|
31667X
31667-31X62 Plate-Retaining2009-09-01 ~ ; HR16DE.AT; SELECT T=4.6 |
31667-31X62 |
US $17.71 |
||
|
31667XA
|
31667XA
31667-31X22 Plate-Retaining2008-09-01 ~ ; AT; SELECT T=3.6 |
31667-31X22 |
US $17.71 |
||
|
31667XA
|
31667XA
31667-31X23 Plate-Retaining2009-09-01 ~ ; *HR16DE.AT; SELECT T=3.8 |
31667-31X23 |
US $17.71 |
||
|
31667XA
|
31667XA
31667-31X24 Plate-Retaining2009-09-01 ~ ; *HR16DE.AT; SELECT T=4.0 |
31667-31X24 |
US $17.71 |
||
|
31667XA
|
31667XA
31667-31X60 Plate-Retaining2009-09-01 ~ ; *HR16DE.AT; SELECT T=4.2 |
31667-31X60 |
US $17.71 |
||
|
31667XA
|
31667XA
31667-31X61 Plate-Retaining2009-09-01 ~ ; *HR16DE.AT; SELECT T=4.4 |
31667-31X61 |
US $17.71 |
||
|
31667XA
|
31667XA
31667-31X62 Plate-Retaining2009-09-01 ~ ; HR16DE.AT; SELECT T=4.6 |
31667-31X62 |
US $17.71 |
||
