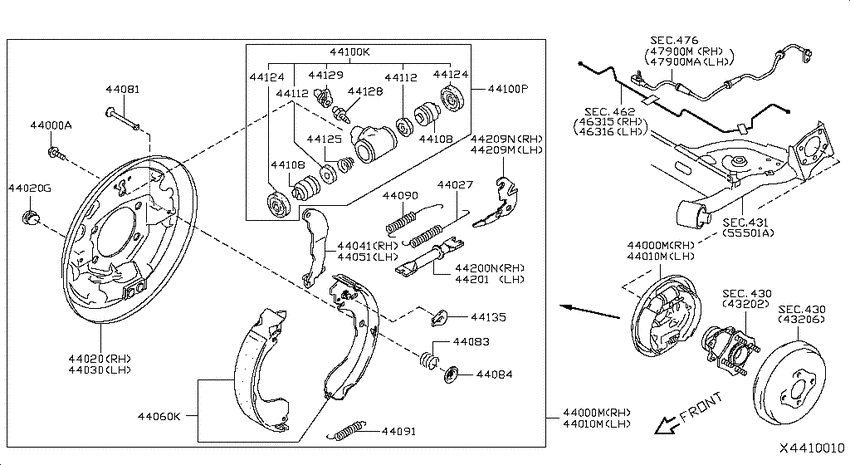

Rear brake (2008-11-01 ~ ; HR16DE) Diagram Nissan VERSA
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Engine
- HR16DE
- transmission
- AT
- grade
- BASE
- body
- SED
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
430
|
Rear axle
430
|
||||
|
430
|
Rear axle
430
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
44000A
|
44000A
44005-AX000 Bolt2008-11-01 ~ ; HR16DE; , |
44005-AX000 |
US $2.45 |
||
|
44000M
|
44000M
44000-ED060 Brake Assy-Drum, Rear Rh2009-09-01 ~ ; *HR16DE; , |
44000-ED060 |
US $207.36 |
||
|
44000M
|
44000M
44000-EE30A
Brake Assy-Drum, Rear Rh
2008-11-01 ~ ; HR16DE; , |
44000-EE30A |
— | ||
|
44000M
|
44000M
44000-ED060 Brake Assy-Drum, Rear Rh2009-09-01 ~ ; *HR16DE; , |
44000-ED060 |
US $207.36 |
||
|
44000M
|
44000M
44000-EE30A
Brake Assy-Drum, Rear Rh
2008-11-01 ~ ; HR16DE; , |
44000-EE30A |
— | ||
|
44010M
|
44010M
44010-ED060 Brake Assy-Drum, Rear Lh2008-11-01 ~ 2009-09-01; *HR16DE; , |
44010-ED060 |
US $207.36 |
||
|
44010M
|
44010M
44010-EE30A
Brake Assy-Drum, Rear Lh
2008-11-01 ~ ; HR16DE; , |
44010-EE30A |
— | ||
|
44010M
|
44010M
44010-ED060 Brake Assy-Drum, Rear Lh2008-11-01 ~ 2009-09-01; *HR16DE; , |
44010-ED060 |
US $207.36 |
||
|
44010M
|
44010M
44010-EE30A
Brake Assy-Drum, Rear Lh
2008-11-01 ~ ; HR16DE; , |
44010-EE30A |
— | ||
|
44020
|
44020
44020-ED060 Plate Assy-Back, Rear Brake Rh2008-11-01 ~ ; HR16DE; , |
44020-ED060 |
US $85.39 |
||
|
44020
|
44020
462893U801 Clamp2008-11-01 ~ ; SED.HR16DE; , |
462893U801 |
US $3.46 |
||
|
44020
|
44020
44098-ED000 Plug2009-09-01 ~ ; HR16DE; , |
44098-ED000 |
US $4.18 |
||
|
44020
|
44020
44098-ED001 Plug2008-11-01 ~ 2009-09-01; HR16DE; , |
44098-ED001 |
US $4.71 |
||
|
44020
|
44020
44098-ED001 Plug2009-09-01 ~ ; HR16DE; , |
44098-ED001 |
US $4.71 |
||
|
44020
|
44020
462715V005 Insulator2008-11-01 ~ ; SED.HR16DE; , |
462715V005 |
from US $3.83 |
||
|
44020G
|
44020G
44098-ED000 Plug2009-09-01 ~ ; HR16DE; , |
44098-ED000 |
US $4.18 |
||
|
44020G
|
44020G
44098-ED001 Plug2008-11-01 ~ 2009-09-01; HR16DE; , |
44098-ED001 |
US $4.71 |
||
|
44020G
|
44020G
44098-ED001 Plug2009-09-01 ~ ; HR16DE; , |
44098-ED001 |
US $4.71 |
||
|
44027
|
44027
44214-ED000 Spring-Adjusting, Rear Brake2008-11-01 ~ ; HR16DE; , |
44214-ED000 |
from US $2.45 |
||
|
44030
|
44030
44030-ED060 Plate Assy-Back, Rear Brake Lh2008-11-01 ~ ; HR16DE; , |
44030-ED060 |
US $85.39 |
||
|
44041
|
44041
44050-ED000 Lever-Toggle, Rh2008-11-01 ~ ; HR16DE; , |
44050-ED000 |
US $29.95 |
||
|
44051
|
44051
44050-ED000 Lever-Toggle, Rh2008-11-01 ~ 2009-09-01; *HR16DE; , |
44050-ED000 |
US $29.95 |
||
|
44051
|
44051
44051-ED000 Lever-Toggle, Lh2008-11-01 ~ ; HR16DE; , |
44051-ED000 |
US $38.45 |
||
|
44060K
|
44060K
44060ED026 Shoe Set-Rear Brake2008-11-01 ~ ; HR16DE; , |
44060ED026 |
from US $70 |
||
|
44081
|
44081
44081-M4901 Pin-Fixing Shoe2008-11-01 ~ ; HR16DE; , |
44081-M4901 |
from US $1.04 |
||
|
44081
|
44081
44081-M4902 Pin-Anti Shoe Rattle2009-09-01 ~ ; *HR16DE; , |
44081-M4902 |
from US $1.17 |
||
|
44083
|
44083
44083-72B10 Spring-Anti Shoe Rattle2008-11-01 ~ 2009-09-01; HR16DE; , |
44083-72B10 |
US $1.82 |
||
|
44084
|
44084
44084-ED000
Retainer-Spring, Anti Shoe Rattle
2008-11-01 ~ ; HR16DE; , |
44084-ED000 |
— | ||
| replacement | |||||
|
44084
|
44084
44043L010A Retainer-Spring, Anti Shoe Rattle2008-11-01 ~ ; HR16DE; , |
44043L010A |
from US $1.67 |
||
|
44090
|
44090
44090-ED000 Spring-Return, Rear Brake Shoe2008-11-01 ~ ; HR16DE; , |
44090-ED000 |
from US $4.18 |
||
|
44091
|
44091
44091-ED000 Spring-Return, Rear Brake Shoe2008-11-01 ~ ; HR16DE; , |
44091-ED000 |
US $2.45 |
||
|
44100K
|
44100K
D4100-2U626 Cup Kit-Brake Wheel Cylinder, Rear2008-11-01 ~ 2009-09-01; HR16DE; , |
D4100-2U626 |
US $18.39 |
||
|
44100K
|
44100K
D41004M488 Cup Kit-Brake Wheel Cylinder, Rear2009-09-01 ~ ; *HR16DE; AKEBONO |
D41004M488 |
US $17.30 |
||
|
44100K
|
44100K
D4100-CX085 Cup Kit-Brake Wheel Cylinder, Rear2009-09-01 ~ ; HR16DE; , |
D4100-CX085 |
US $19.68 |
||
|
44100P
|
44100P
44100-ED010 Cylinder Assy-Rear Wheel2009-09-01 ~ ; *HR16DE; AKEBONO 5/8(15.87) |
44100-ED010 |
from US $67.49 |
||
|
44100P
|
44100P
44100ED300 Cylinder Assy-Rear Wheel2008-11-01 ~ ; HR16DE; AKEBONO 5/8(15.87) |
44100ED300 |
from US $65.38 |
||
|
44108
|
44108
44108AX00A Piston-Cylinder2009-09-01 ~ ; *HR16DE; AKEBONO |
44108AX00A |
US $15.55 |
||
|
44108
|
44108
44108-ET000 Piston-Cylinder2008-11-01 ~ ; HR16DE; AKEBONO |
44108-ET000 |
US $15.55 |
||
|
44108
|
44108
44108AX00A Piston-Cylinder2009-09-01 ~ ; *HR16DE; AKEBONO |
44108AX00A |
US $15.55 |
||
|
44108
|
44108
44108-ET000 Piston-Cylinder2008-11-01 ~ ; HR16DE; AKEBONO |
44108-ET000 |
US $15.55 |
||
|
44112
|
44112
44112-4M410
Cup-Piston
2009-09-01 ~ ; *HR16DE; AKEBONO |
44112-4M410 |
— | ||
|
44112
|
44112
44112-4M410
Cup-Piston
2009-09-01 ~ ; *HR16DE; AKEBONO |
44112-4M410 |
— | ||
|
44124
|
44124
441242U600 Cover-Dust2008-11-01 ~ ; HR16DE; , |
441242U600 |
US $2.45 |
||
|
44124
|
44124
441242U600 Cover-Dust2008-11-01 ~ ; HR16DE; , |
441242U600 |
US $2.45 |
||
|
44125
|
44125
44125-ED010 Spring2008-11-01 ~ ; HR16DE; , |
44125-ED010 |
US $4.18 |
||
|
44128
|
44128
411288J100 Screw-Bleeder2008-11-01 ~ ; HR16DE; AKEBONO |
411288J100 |
from US $6.91 |
||
|
44129
|
44129
4112980Z0A Cap-Bleeder Screw2008-11-01 ~ 2009-09-01; HR16DE; , |
4112980Z0A |
US $1.58 |
||
|
44135
|
44135
44222M490A Ring-Retaining2009-09-01 ~ ; HR16DE; , |
44222M490A |
from US $0.81 |
||
|
44200N
|
44200N
44200ED000 Adjuster Assy-Rear Brake, Rh2008-11-01 ~ ; HR16DE; , |
44200ED000 |
US $55.73 |
||
|
44201
|
44201
44201-ED000 Adjuster Assy-Rear Brake, Lh2008-11-01 ~ ; HR16DE; , |
44201-ED000 |
US $55.73 |
||
|
44209M
|
44209M
44211-ED000 Lever Assy-Adjuster, Lh2008-11-01 ~ ; HR16DE; , |
44211-ED000 |
US $13.39 |
||
|
44209N
|
44209N
44210-ED000 Lever Assy-Adjuster, Rh2008-11-01 ~ ; HR16DE; , |
44210-ED000 |
US $13.39 |
||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
476
|
Anti skid control
476
|
||||
