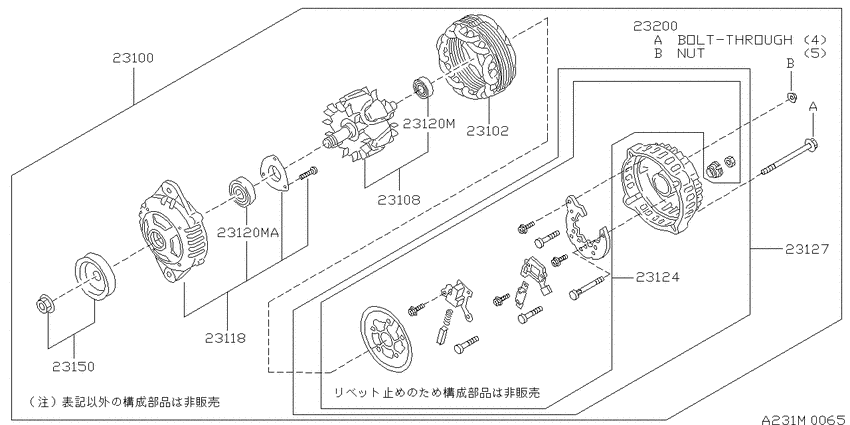

Alternator (1996-05-01 ~ ; "日立 ウイングロ-ド／AD MAX; CD20) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- LE
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-8E100 ALTERNATOR ASSY9605--01 ~ ; CD20; ﾋﾀﾁ |
23100-8E100 |
US $1,568 |
||
|
23100
|
23100
0122100381 NUT9605--01 ~ ; CD20 |
0122100381 |
from US $5.37 |
||
|
23102
|
23102
23102-31U00 Stator Assy9605--01 ~ ; CD20; ﾋﾀﾁ |
23102-31U00 |
US $515.42 |
||
|
23108
|
23108
23108-8E100 ROTOR ASSY9605--01 ~ ; CD20; ﾋﾀﾁ |
23108-8E100 |
US $339.84 |
||
|
23118
|
23118
23118-2J600 Cover Assy-Front9605--01 ~ ; CD20; ﾋﾀﾁ |
23118-2J600 |
US $162.72 |
||
|
23120M
|
23120M
23120-0M000 Bearing-Ball9605--01 ~ ; CD20; ﾋﾀﾁ |
23120-0M000 |
US $42.34 |
||
|
23120M
|
23120M
23120-0M005 Bearing-Ball9605--01 ~ ; CD20; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23120MA
|
23120MA
23120-0M005 Bearing-Ball9605--01 ~ ; CD20; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23124
|
23124
23124-8E100 Rectifier Assy9605--01 ~ 9703--01; CD20; ﾋﾀﾁ |
23124-8E100 |
US $688.18 |
||
|
23124
|
23124
23124-8E102 Rectifier Assy9703--01 ~ ; CD20; ﾋﾀﾁ |
23124-8E102 |
US $625.87 |
||
|
23127
|
23127
23127-8E100 COVER ASSY-REAR9605--01 ~ 9703--01; CD20; ﾋﾀﾁ |
23127-8E100 |
US $676.85 |
||
|
23127
|
23127
23127-8E101 COVER ASSY-REAR9703--01 ~ 9707--01; CD20; ﾋﾀﾁ |
23127-8E101 |
US $676.85 |
||
|
23127
|
23127
23127-8E103 COVER ASSY-REAR9707--01 ~ ; CD20; ﾋﾀﾁ ｽﾃ-ﾀ- ﾂｷ |
23127-8E103 |
US $676.85 |
||
|
23150
|
23150
23150-2J600 Pulley Assy9605--01 ~ ; CD20; ﾋﾀﾁ |
23150-2J600 |
US $146.88 |
||
|
23200
|
23200
23200-0M000 Screw Set9605--01 ~ ; CD20; ﾋﾀﾁ |
23200-0M000 |
US $8.50 |
