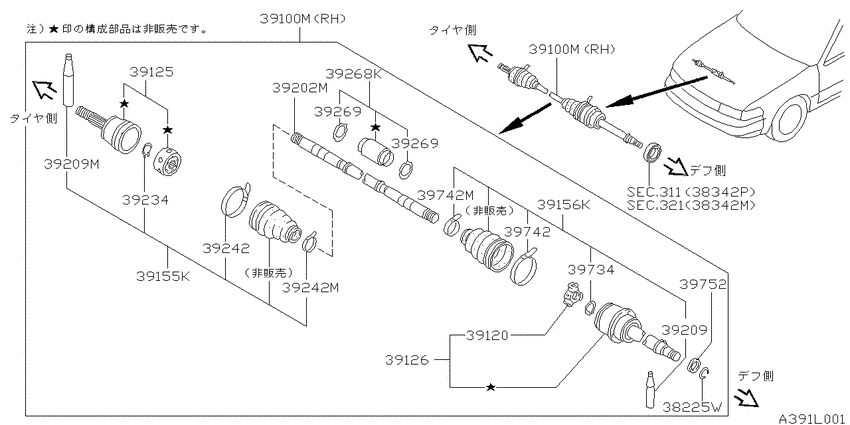

Front drive shaft (ff) (1996-05-01 ~ ; ｳｲﾝｸﾞﾛ-ﾄﾞ右ﾉﾝｽﾘｯﾌﾟﾃﾞﾌ無し; CD20) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- LE
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
38225W
|
38225W
3822565A05 Clip-Drive Shaft9605--01 ~ ; CD20 |
3822565A05 |
from US $0.63 |
||
|
38225W
|
38225W
3822565A05 Clip-Drive Shaft9605--01 ~ ; CD20 |
3822565A05 |
from US $0.63 |
||
|
39100M
|
39100M
39100-79R00 Shaft Assy-Front Drive, Rh9605--01 ~ 9705--01; CD20.MT |
39100-79R00 |
US $848.18 |
||
|
39100M
|
39100M
39100-79R10 Shaft Assy-Front Drive, Rh9605--01 ~ 9705--01; *CD20.MT; ABSﾖｳ |
39100-79R10 |
US $848.18 |
||
|
39100M
|
39100M
39100-79R00 Shaft Assy-Front Drive, Rh9605--01 ~ 9705--01; CD20.MT |
39100-79R00 |
US $848.18 |
||
|
39100M
|
39100M
39100-79R10 Shaft Assy-Front Drive, Rh9605--01 ~ 9705--01; *CD20.MT; ABSﾖｳ |
39100-79R10 |
US $848.18 |
||
|
39120
|
39120
39720-51E00 SPIDER ASSY-SLIDE JOINT9605--01 ~ ; CD20; ﾛ-ﾗ-ｶﾞｲｹｲ D=33.00MM |
39720-51E00 |
US $106.27 |
||
|
39120
|
39120
39720-51E01 SPIDER ASSY-SLIDE JOINT9705--01 ~ ; CD20; ﾛ-ﾗ-ｶﾞｲｹｲ D=33.07MM |
39720-51E01 |
US $106.27 |
||
|
39120
|
39120
39720-51E02 SPIDER ASSY-SLIDE JOINT9705--01 ~ ; CD20; ﾛ-ﾗ-ｶﾞｲｹｲ D=33.14MM |
39720-51E02 |
US $106.27 |
||
|
39120
|
39120
39720-51E00 SPIDER ASSY-SLIDE JOINT9605--01 ~ ; CD20; ﾛ-ﾗ-ｶﾞｲｹｲ D=33.00MM |
39720-51E00 |
US $106.27 |
||
|
39120
|
39120
39720-51E01 SPIDER ASSY-SLIDE JOINT9705--01 ~ ; CD20; ﾛ-ﾗ-ｶﾞｲｹｲ D=33.07MM |
39720-51E01 |
US $106.27 |
||
|
39120
|
39120
39720-51E02 SPIDER ASSY-SLIDE JOINT9705--01 ~ ; CD20; ﾛ-ﾗ-ｶﾞｲｹｲ D=33.14MM |
39720-51E02 |
US $106.27 |
||
|
39125
|
39125
39211-50Y00 Joint Assy-Outer9605--01 ~ 9705--01; CD20 |
39211-50Y00 |
US $407.81 |
||
|
39125
|
39125
3921150Y10 Joint Assy-Outer9605--01 ~ 9705--01; *CD20; ABSﾖｳ |
3921150Y10 |
US $526.75 |
||
|
39125
|
39125
39211-50Y00 Joint Assy-Outer9605--01 ~ 9705--01; CD20 |
39211-50Y00 |
US $407.81 |
||
|
39125
|
39125
3921150Y10 Joint Assy-Outer9705--01 ~ ; *CD20.LE.(MT+AT); ABSﾖｳ |
3921150Y10 |
US $526.75 |
||
|
39126
|
39126
39711-50A05 Joint Assy-Inner9605--01 ~ ; CD20.MT |
39711-50A05 |
US $375.24 |
||
|
39126
|
39126
39711-50A05 Joint Assy-Inner9605--01 ~ ; CD20.MT |
39711-50A05 |
US $375.24 |
||
|
39155K
|
39155K
3924150A91 Repair Kit-Seal, Outer9605--01 ~ ; CD20 |
3924150A91 |
US $82.08 |
||
|
39155K
|
39155K
3924150A91 Repair Kit-Seal, Outer9605--01 ~ ; CD20 |
3924150A91 |
US $82.08 |
||
|
39156K
|
39156K
39741-02A88 Repair Kit-Dust B00T, Inner9605--01 ~ ; CD20.MT |
39741-02A88 |
US $82.08 |
||
|
39156K
|
39156K
39741-02A88 Repair Kit-Dust B00T, Inner9605--01 ~ ; CD20.MT |
39741-02A88 |
US $82.08 |
||
|
39202M
|
39202M
39204-52Y00 Shaft-Front Drive, Rh9605--01 ~ ; CD20.MT |
39204-52Y00 |
US $204.48 |
||
|
39209
|
39209
39709-55E26 GREASE9605--01 ~ ; CD20 |
39709-55E26 |
US $33.70 |
||
| replacement | |||||
|
39209
|
39209
C9709-2U626 Grease-Inner9605--01 ~ ; CD20 |
C9709-2U626 |
US $36.72 |
||
|
39209
|
39209
39709-55E26 GREASE9605--01 ~ ; CD20 |
39709-55E26 |
US $33.70 |
||
| replacement | |||||
|
39209
|
39209
C9709-2U626 Grease-Inner9605--01 ~ ; CD20 |
C9709-2U626 |
US $36.72 |
||
|
39209
|
39209
39209-01A28 Grease-Outer9605--01 ~ ; CD20 |
39209-01A28 |
US $23.76 |
||
|
39209
|
39209
39209-01A28 Grease-Outer9605--01 ~ ; CD20 |
39209-01A28 |
US $23.76 |
||
|
39209M
|
39209M
39209-01A28 Grease-Outer9605--01 ~ ; CD20 |
39209-01A28 |
US $23.76 |
||
|
39209M
|
39209M
39209-01A28 Grease-Outer9605--01 ~ ; CD20 |
39209-01A28 |
US $23.76 |
||
|
39234
|
39234
3923401A00 Circlip-Drive Shaft9605--01 ~ ; CD20 |
3923401A00 |
from US $0.61 |
||
|
39234
|
39234
3923401A00 Circlip-Drive Shaft9605--01 ~ ; CD20 |
3923401A00 |
from US $0.61 |
||
|
39242
|
39242
39242-03A00 Band-Boot, Drive Shaft Outer9605--01 ~ ; CD20 |
39242-03A00 |
US $13.39 |
||
|
39242
|
39242
39242-03A00 Band-Boot, Drive Shaft Outer9605--01 ~ ; CD20 |
39242-03A00 |
US $13.39 |
||
|
39242
|
39242
39242-03A05 Band-Boot, Drive Shaft9605--01 ~ ; CD20 |
39242-03A05 |
US $13.10 |
||
|
39242
|
39242
39242-03A05 Band-Boot, Drive Shaft9605--01 ~ ; CD20 |
39242-03A05 |
US $13.10 |
||
|
39242M
|
39242M
39242-03A05 Band-Boot, Drive Shaft9605--01 ~ ; CD20 |
39242-03A05 |
US $13.10 |
||
|
39242M
|
39242M
39242-03A05 Band-Boot, Drive Shaft9605--01 ~ ; CD20 |
39242-03A05 |
US $13.10 |
||
|
39268K
|
39268K
39268-11A25 Damper Kit-Dynamic, Front Drive Shaft9605--01 ~ 9705--01; *CD20.MT; ABSﾖｳ |
39268-11A25 |
US $42.62 |
||
| replacement | |||||
|
39268K
|
39268K
39268-11A26 Damper Kit-Dynamic, Front Drive Shaft9605--01 ~ 9705--01; *CD20.MT; ABSﾖｳ |
39268-11A26 |
US $42.62 |
||
|
39268K
|
39268K
39268-11A26 Damper Kit-Dynamic, Front Drive Shaft9807--01 ~ ; CD20.MT |
39268-11A26 |
US $42.62 |
||
|
39268K
|
39268K
39268-11A90
Damper Kit-Dynamic, Front Drive Shaft
9605--01 ~ 9705--01; CD20.MT |
39268-11A90 |
— | ||
|
39269
|
39269
3926911A10 Band-Damper9605--01 ~ 9807--01; CD20 |
3926911A10 |
US $9.50 |
||
|
39269
|
39269
3926911A10 Band-Damper9605--01 ~ 9807--01; CD20 |
3926911A10 |
US $9.50 |
||
|
39734
|
39734
0154100011 RING-SNAP9605--01 ~ ; CD20 |
0154100011 |
US $1.73 |
||
|
39734
|
39734
0154100011 RING-SNAP9605--01 ~ ; CD20 |
0154100011 |
US $1.73 |
||
|
39742
|
39742
3974202A00 Band-Boot, Drive Shaft Inner9605--01 ~ ; CD20 |
3974202A00 |
US $9.50 |
||
|
39742
|
39742
3974202A00 Band-Boot, Drive Shaft Inner9605--01 ~ ; CD20 |
3974202A00 |
US $9.50 |
||
|
39742
|
39742
3974202A06 Band-Boot, Drive Shaft Inner9605--01 ~ ; CD20 |
3974202A06 |
US $10.51 |
||
|
39742
|
39742
3974202A06 Band-Boot, Drive Shaft Inner9605--01 ~ ; CD20 |
3974202A06 |
US $10.51 |
||
|
39742M
|
39742M
3974202A06 Band-Boot, Drive Shaft Inner9605--01 ~ ; CD20 |
3974202A06 |
US $10.51 |
||
|
39742M
|
39742M
3974202A06 Band-Boot, Drive Shaft Inner9605--01 ~ ; CD20 |
3974202A06 |
US $10.51 |
||
|
39752
|
39752
3975202E02 SHIELD-DUST9605--01 ~ ; CD20.MT |
3975202E02 |
US $5.47 |
||
|
39752
|
39752
3975202E02 SHIELD-DUST9605--01 ~ ; CD20.MT |
3975202E02 |
US $5.47 |
||
