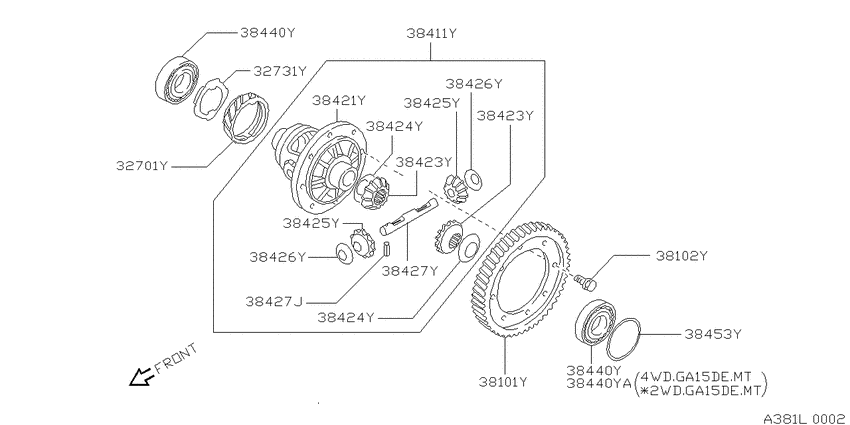

Front final drive (1996-05-01 ~ ; ウイングロ-ド; GA15DE.MT.F5 +CD20.MT.F5) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- LE
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-D2100 Gear-Drive, Speedometer9605--01 ~ ; CD20.MT |
32701-D2100 |
US $19.44 |
||
|
32731Y
|
32731Y
38431-D2100 Stopper-Speedometer Drive Gear9605--01 ~ ; CD20.MT |
38431-D2100 |
US $4.75 |
||
|
38101Y
|
38101Y
38101-64A12 Gear-Final Drive9605--01 ~ ; CD20.MT |
38101-64A12 |
US $236.16 |
||
|
38102Y
|
38102Y
38102-6J000 Bolt-Drive Gear9807--01 ~ ; GA15DE.MT +CD20.MT |
38102-6J000 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-M8001 Bolt-Drive Gear9605--01 ~ 9807--01; GA15DE.MT +CD20.MT |
38102-M8001 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-67Y01 Case Compl-Differential9605--01 ~ ; CD20.MT |
38411-67Y01 |
US $774.55 |
||
|
38421Y
|
38421Y
38421-D2100 Case-Differential9605--01 ~ ; CD20.MT |
38421-D2100 |
US $471.53 |
||
|
38423Y
|
38423Y
38423-D2100 Gear-Side9605--01 ~ ; CD20.MT |
38423-D2100 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-D2100 Gear-Side9605--01 ~ ; CD20.MT |
38423-D2100 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate9605--01 ~ ; CD20.MT |
38425-U3000 |
US $38.59 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate9605--01 ~ ; CD20.MT |
38425-U3000 |
US $38.59 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate9605--01 ~ ; CD20.MT |
38426-31X10 |
US $2.45 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate9605--01 ~ ; CD20.MT |
38426-31X10 |
US $2.45 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9605--01 ~ ; 4WD.GA15DE.MT +CD20.MT |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-D2101 Shaft-Pinion Mate9605--01 ~ ; CD20.MT |
38427-D2101 |
US $22.32 |
||
|
38440Y
|
38440Y
38440-D2100 Bearing-Counter Shaft, Lh9605--01 ~ ; CD20.MT |
38440-D2100 |
US $35.14 |
||
|
38440Y
|
38440Y
38440-D2100 Bearing-Counter Shaft, Lh9605--01 ~ ; CD20.MT |
38440-D2100 |
US $35.14 |
||
|
38453Y
|
38453Y
38454-M8000 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.44 |
38454-M8000 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8001 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.48 |
38454-M8001 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8003 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.56 |
38454-M8003 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8004 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.60 |
38454-M8004 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8005 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.64 |
38454-M8005 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8006 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.68 |
38454-M8006 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8007 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.72 |
38454-M8007 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8008 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.76 |
38454-M8008 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8009 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.80 |
38454-M8009 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8010 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.84 |
38454-M8010 |
US $6.34 |
||
|
38453Y
|
38453Y
38454-M8011 Shim-Adjust, Side Bearing9605--01 ~ ; 2WD.GA15DE.MT +CD20.MT; ｾﾝﾀｸ T=0.88 |
38454-M8011 |
US $6.34 |
