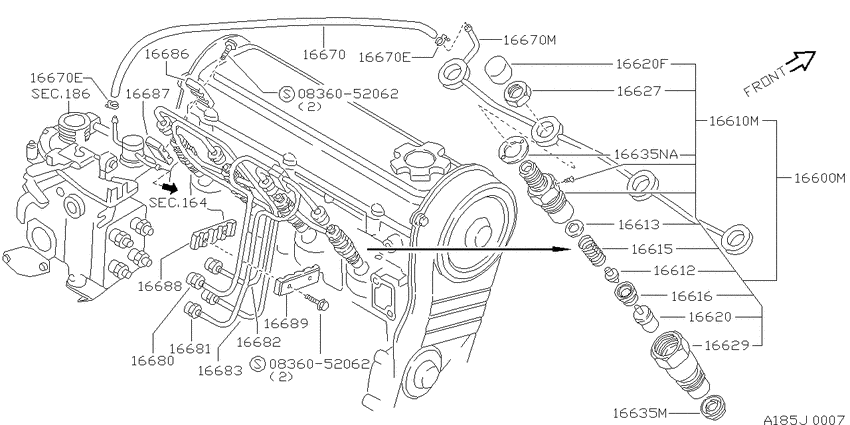

Fuel supply system (1996-05-01 ~ ; ウイングロ-ド／AD MAX; CD20) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- LE
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836052062
|
0836052062
0836052062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836052062 |
— | ||
|
0836052062
|
0836052062
0836052062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836052062 |
— | ||
|
164
|
Fuel strainer & fuel hose
164
|
||||
|
164
|
Fuel strainer & fuel hose
164
|
||||
|
16600M
|
16600M
16600-59Y11 Nozzle Assy & Holder9605--01 ~ ; CD20; S/#16600-59Y25[B421] |
16600-59Y11 |
US $233.28 |
||
|
16610M
|
16610M
16610-16A00 Holder Assy-Nozzle9605--01 ~ ; CD20 |
16610-16A00 |
US $205.92 |
||
|
16612
|
16612
16612-16A00 Rod-Push9605--01 ~ ; CD20 |
16612-16A00 |
US $4.18 |
||
|
16613
|
16613
16613V0700 Washer-Adjusting9605--01 ~ ; CD20; T=0.50 ｾﾝﾀｸ |
16613V0700 |
US $2.74 |
||
|
16613
|
16613
16613V0702 Washer-Adjusting9605--01 ~ ; CD20; T=0.54 ｾﾝﾀｸ |
16613V0702 |
US $2.74 |
||
|
16613
|
16613
16613V0704 Washer-Adjusting9605--01 ~ ; CD20; T=0.58 ｾﾝﾀｸ |
16613V0704 |
US $2.74 |
||
|
16613
|
16613
16613V0706 Washer-Adjusting9605--01 ~ ; CD20; T=0.62 ｾﾝﾀｸ |
16613V0706 |
US $2.74 |
||
|
16613
|
16613
16613V0708 Washer-Adjusting9605--01 ~ ; CD20; T=0.66 ｾﾝﾀｸ |
16613V0708 |
US $2.74 |
||
|
16613
|
16613
16613-V0710 Washer-Adjusting9605--01 ~ ; CD20; T=0.70 ｾﾝﾀｸ |
16613-V0710 |
US $2.74 |
||
|
16613
|
16613
16613V0712 Washer-Adjusting9605--01 ~ ; CD20; T=0.74 ｾﾝﾀｸ |
16613V0712 |
US $2.74 |
||
|
16613
|
16613
16613V0714 Washer-Adjusting9605--01 ~ ; CD20; T=0.78 ｾﾝﾀｸ |
16613V0714 |
US $2.74 |
||
|
16613
|
16613
16613V0716 Washer-Adjusting9605--01 ~ ; CD20; T=0.82 ｾﾝﾀｸ |
16613V0716 |
US $2.74 |
||
|
16613
|
16613
16613V0718 Washer-Adjusting9605--01 ~ ; CD20; T=0.86 ｾﾝﾀｸ |
16613V0718 |
US $2.74 |
||
|
16613
|
16613
16613V0720 Washer-Adjusting9605--01 ~ ; CD20; T=0.90 ｾﾝﾀｸ |
16613V0720 |
US $2.74 |
||
|
16613
|
16613
16613V0722 Washer-Adjusting9605--01 ~ ; CD20; T=0.94 ｾﾝﾀｸ |
16613V0722 |
US $2.74 |
||
|
16613
|
16613
16613V0724 Washer-Adjusting9605--01 ~ ; CD20; T=0.98 ｾﾝﾀｸ |
16613V0724 |
US $2.74 |
||
|
16613
|
16613
16613V0760 Washer-Adjusting9605--01 ~ ; CD20; T=1.00 ｾﾝﾀｸ |
16613V0760 |
US $2.74 |
||
|
16615
|
16615
16615-V0702 Spring-Nozzle9605--01 ~ ; CD20 |
16615-V0702 |
US $7.49 |
||
|
16616
|
16616
16616-16A00 Piece-Distance9605--01 ~ ; CD20 |
16616-16A00 |
US $14.26 |
||
|
16620
|
16620
16620-59Y20 Nozzle Assy9605--01 ~ ; CD20; [B421] |
16620-59Y20 |
US $57.60 |
||
|
16620
|
16620
16619-1C310 Cap-Injection Nozzle9605--01 ~ ; CD20; [B421] |
16619-1C310 |
US $2.30 |
||
|
16620F
|
16620F
16619-1C310 Cap-Injection Nozzle9605--01 ~ ; CD20; [B421] |
16619-1C310 |
US $2.30 |
||
|
16627
|
16627
16666-16A00 Nut9605--01 ~ ; CD20 |
16666-16A00 |
US $7.34 |
||
|
16629
|
16629
16629-16A00 Nut-Nozzle9605--01 ~ ; CD20 |
16629-16A00 |
US $21.31 |
||
|
16635M
|
16635M
166260M900 Gasket-Nozzle9605--01 ~ ; CD20 |
166260M900 |
US $9.07 |
||
|
16635NA
|
16635NA
1663516A00 Gasket-Nozzle9605--01 ~ ; CD20 |
1663516A00 |
from US $1.55 |
||
|
16670
|
16670
08740-23011 HOSE ASSY-FUEL SPILL9605--01 ~ ; CD20; L=230 S/#A8742-20010 |
08740-23011 |
US $7.63 |
||
|
16670
|
16670
01555-00411
CLAMP-HOSE
9605--01 ~ ; CD20 |
01555-00411 |
— | ||
| replacement | |||||
|
16670
|
16670
0155500771 CLIP9605--01 ~ ; CD20 |
0155500771 |
US $2.78 |
||
|
16670
|
16670
16671-16A12 Tube-Fuel Spill9605--01 ~ ; CD20 |
16671-16A12 |
US $37.44 |
||
|
16670E
|
16670E
01555-00411
CLAMP-HOSE
9605--01 ~ ; CD20 |
01555-00411 |
— | ||
| replacement | |||||
|
16670E
|
16670E
0155500771 CLIP9605--01 ~ ; CD20 |
0155500771 |
US $2.78 |
||
|
16670E
|
16670E
01555-00411
CLAMP-HOSE
9605--01 ~ ; CD20 |
01555-00411 |
— | ||
| replacement | |||||
|
16670E
|
16670E
0155500771 CLIP9605--01 ~ ; CD20 |
0155500771 |
US $2.78 |
||
|
16670M
|
16670M
16671-16A12 Tube-Fuel Spill9605--01 ~ ; CD20 |
16671-16A12 |
US $37.44 |
||
|
16680
|
16680
16680-57J00 Tube Assy-Injection, No 19605--01 ~ ; CD20 |
16680-57J00 |
US $40.32 |
||
|
16681
|
16681
16681-57J00 Tube Assy-Injection, No 29605--01 ~ ; CD20 |
16681-57J00 |
US $40.32 |
||
|
16682
|
16682
16682-57J00 Tube Assy-Injection, No 39605--01 ~ ; CD20 |
16682-57J00 |
US $40.32 |
||
|
16683
|
16683
16683-57J00 Tube Assy-Injection, No 49605--01 ~ ; CD20 |
16683-57J00 |
US $40.32 |
||
|
16686
|
16686
16686-16A01 Support-Injection Tube9605--01 ~ ; CD20 |
16686-16A01 |
US $4.71 |
||
|
16687
|
16687
16687-16A01 Support-Injection Tube9605--01 ~ ; CD20 |
16687-16A01 |
US $4.71 |
||
|
16688
|
16688
16688-16A01 Support-Injection Tube9605--01 ~ ; CD20 |
16688-16A01 |
US $7.92 |
||
|
16689
|
16689
16689-16A01 Support-Injection Tube9605--01 ~ ; CD20 |
16689-16A01 |
US $11.81 |
||
|
186
|
Fuel injection pump
186
|
||||
