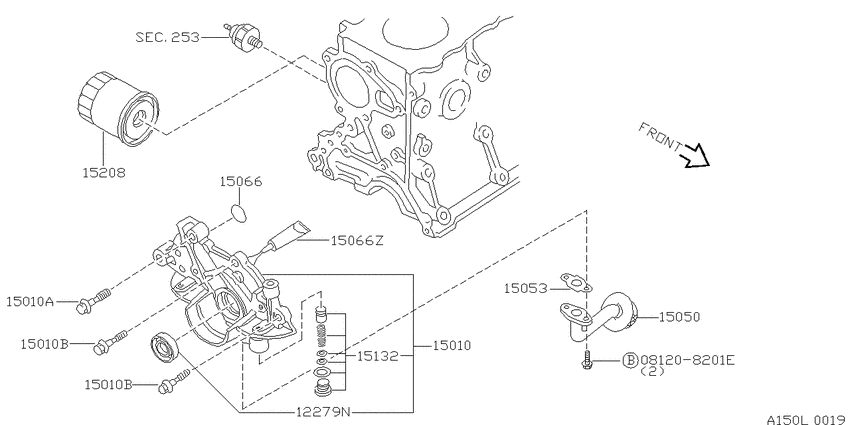

Lubricating system (1996-05-01 ~ ; ウイングロ-ド／AD MAX; CD20) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- LE
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
12279N
|
12279N
13510V7200 Seal-Oil, Crankshaft Front9605--01 ~ ; CD20 |
13510V7200 |
from US $9.82 |
||
|
15010
|
15010
15010-0E400 Pump Assy-Oil9605--01 ~ ; CD20 |
15010-0E400 |
US $237.60 |
||
|
15010
|
15010
15060-D0102
Bolt
9605--01 ~ ; CD20 |
15060-D0102 |
— | ||
|
15010
|
15010
13512-D0102 Bolt-Oil Pump9605--01 ~ ; CD20 |
13512-D0102 |
US $3.06 |
||
|
15010A
|
15010A
15060-D0102
Bolt
9605--01 ~ ; CD20 |
15060-D0102 |
— | ||
|
15010B
|
15010B
13512-D0102 Bolt-Oil Pump9605--01 ~ ; CD20 |
13512-D0102 |
US $3.06 |
||
|
15010B
|
15010B
13512-D0102 Bolt-Oil Pump9605--01 ~ ; CD20 |
13512-D0102 |
US $3.06 |
||
|
15050
|
15050
15050-57J01 Strainer Assy-Oil9605--01 ~ ; CD20 |
15050-57J01 |
US $47.81 |
||
|
15053
|
15053
150531E400 Gasket-Oil Strainer9605--01 ~ ; CD20 |
150531E400 |
from US $1.67 |
||
|
15066
|
15066
15066-77A00
Seal-O Ring
9605--01 ~ ; CD20 |
15066-77A00 |
— | ||
| replacement | |||||
|
15066
|
15066
150664J600 Seal-O Ring9605--01 ~ ; CD20 |
150664J600 |
US $6.51 |
||
|
15066
|
15066
KA76015000
Gasket-Liquid
9605--01 ~ ; CD20; [K504] |
KA76015000 |
— | ||
|
15066Z
|
15066Z
KA76015000
Gasket-Liquid
9605--01 ~ ; CD20; [K504] |
KA76015000 |
— | ||
|
15132
|
15132
15132-57J10 Valve Assy-Oil Regulator9605--01 ~ ; CD20 |
15132-57J10 |
US $13.10 |
||
|
15208
|
15208
AY100NS011
Filter Assy-Oil
9605--01 ~ ; CD20 |
AY100NS011 |
— | ||
| replacement | |||||
|
15208
|
15208
AY100NS012 Filter Assy-Oil9605--01 ~ ; CD20 |
AY100NS012 |
US $32.38 |
||
