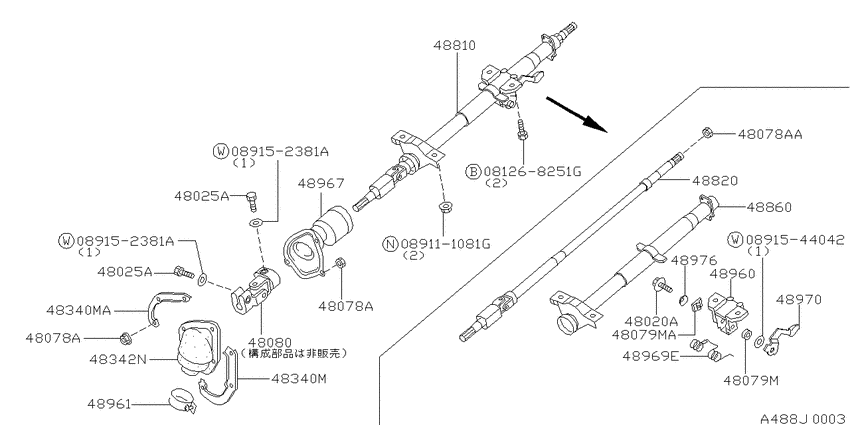

Steering column (1996-05-01 ~ ; ウイングロ-ド／AD MAX; FW/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4 +2WD.GA15DE.MT.F5 +2WD.SR18DE +CD20) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- LE
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268251G
|
081268251G
08126-8251G Bolt-hexagon |
08126-8251G |
US $3.06 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089152381A
|
089152381A
089152381A
Washer
|
089152381A |
— | ||
|
089152381A
|
089152381A
089152381A
Washer
|
089152381A |
— | ||
|
0891544042
|
0891544042
08915-44042
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-44042 |
— | ||
|
48020A
|
48020A
48966-54Y10 Bolt9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48966-54Y10 |
US $4.03 |
||
|
48025A
|
48025A
48935-4P000 Bolt9607--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48935-4P000 |
US $2.45 |
||
|
48025A
|
48025A
48935-F6100
Bolt
9605--01 ~ 9607--01; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48935-F6100 |
— | ||
| replacement | |||||
|
48025A
|
48025A
48935F610A BOLTHEX SPECIA9605--01 ~ 9607--01; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48935F610A |
US $2.21 |
||
|
48025A
|
48025A
48935-4P000 Bolt9607--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48935-4P000 |
US $2.45 |
||
|
48025A
|
48025A
48935-F6100
Bolt
9605--01 ~ 9607--01; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48935-F6100 |
— | ||
| replacement | |||||
|
48025A
|
48025A
48935F610A BOLTHEX SPECIA9605--01 ~ 9607--01; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48935F610A |
US $2.21 |
||
|
48078A
|
48078A
0122500371 NUT9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
0122500371 |
US $1.73 |
||
|
48078A
|
48078A
48938-70T10 Nut9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48938-70T10 |
US $1.73 |
||
|
48078A
|
48078A
0122500371 NUT9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
0122500371 |
US $1.73 |
||
|
48078A
|
48078A
48938-70T10 Nut9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48938-70T10 |
US $1.73 |
||
|
48078AA
|
48078AA
48938-70T10 Nut9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48938-70T10 |
US $1.73 |
||
|
48079M
|
48079M
48969-35F10 Stopper-Tilt Lever9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48969-35F10 |
from US $4.18 |
||
|
48079M
|
48079M
48969-50A00 Stopper-Tilt Lever9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48969-50A00 |
from US $4.18 |
||
|
48079MA
|
48079MA
48969-50A00 Stopper-Tilt Lever9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48969-50A00 |
from US $4.18 |
||
|
48080
|
48080
48080-0M001 Joint Assy-Steering, Lower9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48080-0M001 |
US $79.06 |
||
| replacement | |||||
|
48080
|
48080
48080-0M00A
Joint Assy-Steering Column, Lower
9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48080-0M00A |
— | ||
|
48340M
|
48340M
48958-50Y00 Bracket Assy-Jacket Tube9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48958-50Y00 |
US $90 |
||
|
48340M
|
48340M
48958-50Y01 Bracket Assy-Jacket Tube9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48958-50Y01 |
US $59.76 |
||
|
48340MA
|
48340MA
48958-50Y01 Bracket Assy-Jacket Tube9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48958-50Y01 |
US $59.76 |
||
|
48342N
|
48342N
48950-50Y00 Cover-Column Hole9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48950-50Y00 |
US $75.02 |
||
|
48810
|
48810
48810-95R00 Column Assy-Steering, Upper9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48810-95R00 |
US $702.34 |
||
|
48820
|
48820
48820-86R00 Shaft Assy-Steering Column, Upper9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48820-86R00 |
US $376.66 |
||
|
48860
|
48860
48860-95R00 Tube Assy-Jacket, Upper9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48860-95R00 |
US $257.76 |
||
|
48960
|
48960
48960-0M311 Clamp-Steering Column, Upper9701--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48960-0M311 |
US $450.29 |
||
|
48960
|
48960
48960-95R00 Clamp-Steering Column, Upper9605--01 ~ 9701--01; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48960-95R00 |
US $409.22 |
||
|
48961
|
48961
48963-50Y00 Clamp-Steering Column, Lower9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48963-50Y00 |
US $6.19 |
||
|
48967
|
48967
48981-50Y00 Cover-Joint, Upper9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48981-50Y00 |
US $119.81 |
||
|
48969E
|
48969E
48967-0P010 Spring9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48967-0P010 |
US $6.51 |
||
|
48970
|
48970
48970-95R00 Lever Assy-Adjust, Steering Column9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48970-95R00 |
US $15.26 |
||
|
48976
|
48976
48976-54Y10 Nut-Steering Adjust9605--01 ~ ; @2WD.GA15DE.MT +W/4D.2WD.GA15DE.AT +2WD.SR18DE +W/2D.GA15DE +CD20 |
48976-54Y10 |
from US $0.54 |
||
