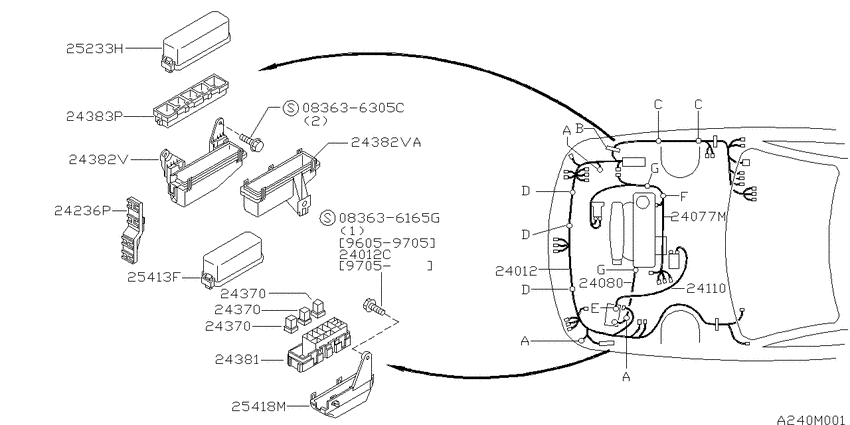

Wiring (1996-05-01 ~ ; ウイングロ-ド エンジン ル-ム; W/4D.CD20) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- LE
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636305C
|
083636305C
08363-6305C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6305C |
— | ||
|
24012
|
24012
24012-4H120 Harness Assy-Engine Room9605--01 ~ 9705--01; W/4D.CD20.LE.MT |
24012-4H120 |
US $1,188.02 |
||
|
24012
|
24012
24012-4H121 Harness Assy-Engine Room9605--01 ~ 9705--01; *W/4D.CD20.MT; ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24012-4H121 |
US $1,188.02 |
||
|
24012
|
24012
24012-WC106 Harness Assy-Engine Room9705--01 ~ ; W/4D.CD20.LE.MT |
24012-WC106 |
US $1,260.24 |
||
|
24012
|
24012
24012-WC107 Harness Assy-Engine Room9705--01 ~ ; *W/4D.CD20.LE.MT; ABSﾖｳ |
24012-WC107 |
US $1,260.24 |
||
|
24012
|
24012
01466-00371 SCREW9705--01 ~ ; W/4D.CD20 |
01466-00371 |
US $1.73 |
||
|
24012C
|
24012C
01466-00371 SCREW9705--01 ~ ; W/4D.CD20 |
01466-00371 |
US $1.73 |
||
|
24077M
|
24077M
24077-4H120 Harness Assy-Engine9605--01 ~ 9705--01; W/4D.CD20.MT |
24077-4H120 |
US $270.72 |
||
|
24077M
|
24077M
24077-WC110 Harness Assy-Engine9705--01 ~ ; W/4D.CD20.MT |
24077-WC110 |
US $270.72 |
||
|
24080
|
24080
24080-59Y00 Cable Assy-Battery Earth9605--01 ~ ; W/4D.CD20 |
24080-59Y00 |
US $75.31 |
||
|
24110
|
24110
24110-95R80 Cable Assy-Battery To Starter Motor9605--01 ~ ; W/4D.CD20 |
24110-95R80 |
US $117.50 |
||
|
24236P
|
24236P
24346-50Y10 Bracket-Connector9605--01 ~ ; W/4D.CD20 |
24346-50Y10 |
US $7.92 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link9605--01 ~ 9705--01; W/4D.CD20; 25A |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link9605--01 ~ 9705--01; W/4D.CD20; 30A |
2437089905 |
from US $12.77 |
||
|
24370
|
24370
2437089920 Connector Assy-Fusible Link9605--01 ~ ; W/4D.CD20; 75A |
2437089920 |
from US $10.80 |
||
|
24370
|
24370
24370-89960 Conn Assy-Fusible Link9605--01 ~ 9705--01; *W/4D.CD20; 45A ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24370-89960 |
US $12.20 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link9605--01 ~ 9705--01; W/4D.CD20; 25A |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link9605--01 ~ 9705--01; W/4D.CD20; 30A |
2437089905 |
from US $12.77 |
||
|
24370
|
24370
2437089920 Connector Assy-Fusible Link9605--01 ~ ; W/4D.CD20; 75A |
2437089920 |
from US $10.80 |
||
|
24370
|
24370
24370-89960 Conn Assy-Fusible Link9605--01 ~ 9705--01; *W/4D.CD20; 45A ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24370-89960 |
US $12.20 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link9605--01 ~ 9705--01; W/4D.CD20; 25A |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link9605--01 ~ 9705--01; W/4D.CD20; 30A |
2437089905 |
from US $12.77 |
||
|
24370
|
24370
2437089920 Connector Assy-Fusible Link9605--01 ~ ; W/4D.CD20; 75A |
2437089920 |
from US $10.80 |
||
|
24370
|
24370
24370-89960 Conn Assy-Fusible Link9605--01 ~ 9705--01; *W/4D.CD20; 45A ｱﾝﾁ ｽｷﾂﾄﾞ ﾂｷ |
24370-89960 |
US $12.20 |
||
|
24381
|
24381
24381-71L00 Housing-Fusible Link Holder9605--01 ~ ; W/4D.CD20 |
24381-71L00 |
US $27.58 |
||
|
24382V
|
24382V
24382-50Y10 Cover-Relay Box9605--01 ~ ; W/4D.CD20 |
24382-50Y10 |
from US $3.33 |
||
|
24382V
|
24382V
24382-50Y11 Cover-Relay Box9605--01 ~ ; W/4D.CD20 |
24382-50Y11 |
US $19.58 |
||
|
24382VA
|
24382VA
24382-50Y11 Cover-Relay Box9605--01 ~ ; W/4D.CD20 |
24382-50Y11 |
US $19.58 |
||
|
24383P
|
24383P
2438351E00 HOUSING-RELAY BOX9605--01 ~ ; W/4D.CD20 |
2438351E00 |
from US $13.14 |
||
|
25233H
|
25233H
24382-4H000 Cover-Relay Box9605--01 ~ 9705--01; W/4D.CD20 |
24382-4H000 |
US $17.71 |
||
|
25233H
|
25233H
24382-WC000 Cover-Relay Box9705--01 ~ ; W/4D.CD20 |
24382-WC000 |
US $17.71 |
||
|
25413F
|
25413F
24382-4H010 Cover-Fusible Link9605--01 ~ ; W/4D.CD20 |
24382-4H010 |
US $20.02 |
||
|
25418M
|
25418M
24387-60R00 Bracket-Fusible Link Holder9605--01 ~ ; W/4D.CD20 |
24387-60R00 |
US $10.37 |
