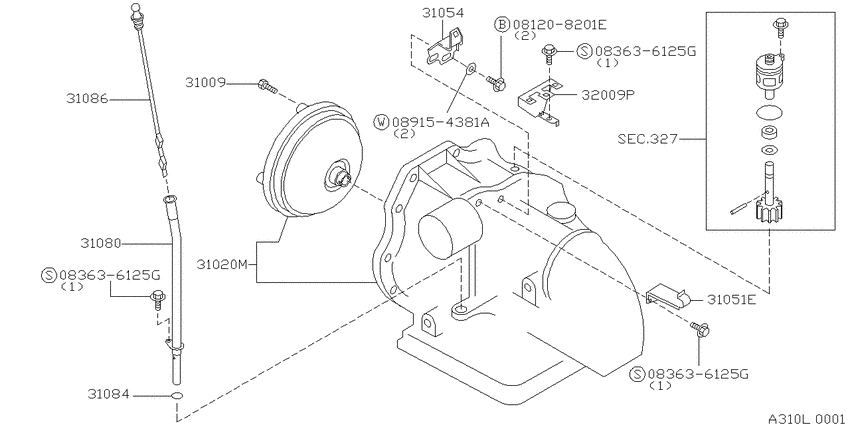

Auto transmission,transaxle & fitting (1996-05-01 ~ ; ｳｲﾝｸﾞﾛ-ﾄﾞ ｱｯｾﾝﾌﾞﾘ- & ﾌｨｯﾃｨﾝｸﾞ; CD20.AT.F4) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- AT.F4
- grade
- JS
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock9605--01 ~ ; CD20.AT |
3100921X00 |
from US $2.83 |
||
|
31020M
|
31020M
31020-35X62 Transaxle Assy-Automatic9605--01 ~ ; CD20.AT |
31020-35X62 |
US $4,368 |
||
|
31020M
|
31020M
31020-35X63 Transaxle Assy-Automatic9605--01 ~ 9705--01; *CD20.AT; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31020-35X63 |
US $4,704 |
||
|
31051E
|
31051E
24210-59Y02 Clip-Throttle Wire9605--01 ~ ; CD20.AT |
24210-59Y02 |
US $4.18 |
||
|
31054
|
31054
31054-8E100 BRACKET-AUTO TRANSMISSION THROTTLE WIRE9605--01 ~ ; CD20.AT |
31054-8E100 |
US $9.07 |
||
|
31080
|
31080
31080-88M02 Pipe Assy-Oil Charging9605--01 ~ ; CD20.AT |
31080-88M02 |
US $58.90 |
||
|
31084
|
31084
31084M7500 Seal-O Ring9605--01 ~ ; CD20.AT |
31084M7500 |
US $1.15 |
||
|
31086
|
31086
31086-85Y00 Gauge Assy-Oil Level9605--01 ~ ; CD20.AT |
31086-85Y00 |
US $20.02 |
||
| replacement | |||||
|
31086
|
31086
31086-85Y05
Gauge assy-oil level
9605--01 ~ ; CD20.AT |
31086-85Y05 |
— | ||
|
32009P
|
32009P
32009-54J10 Bracket-Switch Connector9605--01 ~ ; CD20.AT |
32009-54J10 |
US $6.19 |
||
