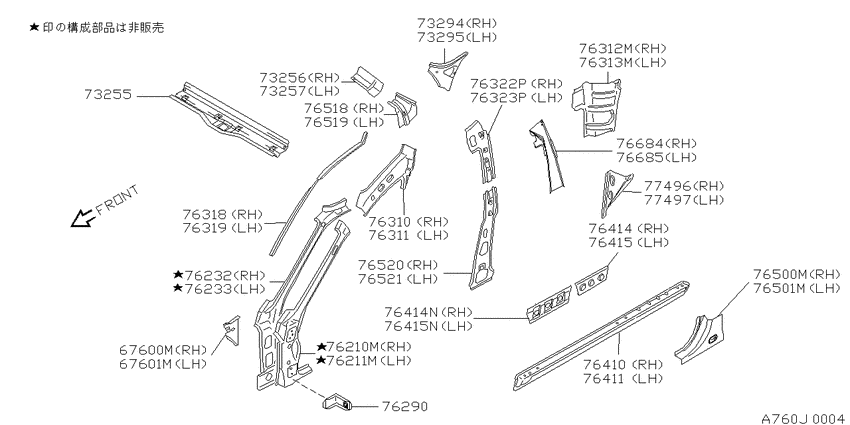

Body side panel (1996-05-01 ~ ; AD MAX フロント; W/2D) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- GA15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- LE
- body
- W/2D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67600M
|
67600M
67612-60R00 Dash Assy-Side Rh9605--01 ~ ; W/2D |
67612-60R00 |
US $32.26 |
||
|
67601M
|
67601M
67613-60R00 Dash Assy-Side Lh9605--01 ~ ; W/2D |
67613-60R00 |
US $32.26 |
||
|
73255
|
73255
73231-72R00 Rail-Guide, Upper9605--01 ~ ; W/2D |
73231-72R00 |
US $119.23 |
||
|
73256
|
73256
73256-68R00 Reinforce-Roof, Center Rh9605--01 ~ ; W/2D |
73256-68R00 |
US $24.62 |
||
|
73257
|
73257
73257-68R00 Reinforce-Roof, Center Lh9605--01 ~ ; W/2D |
73257-68R00 |
US $24.62 |
||
|
73294
|
73294
73294-84R00 Cover-Gusset Rail Roof Center, Rh9605--01 ~ ; W/2D |
73294-84R00 |
US $38.16 |
||
|
73295
|
73295
73295-84R00 Cover-Gusset Rail Roof Center, Lh9605--01 ~ ; W/2D |
73295-84R00 |
US $38.16 |
||
|
76210M
|
76210M
76210-68R30 Pillar-Front, Outer Rh9605--01 ~ ; W/2D |
76210-68R30 |
US $301.61 |
||
|
76211M
|
76211M
76211-68R30 Pillar-Front, Outer Lh9605--01 ~ ; W/2D |
76211-68R30 |
US $301.61 |
||
|
76232
|
76232
76230-68R00 Pillar-Front, Inner Rh9605--01 ~ ; W/2D |
76230-68R00 |
US $169.92 |
||
|
76233
|
76233
76231-68R00 Pillar-Front, Inner Lh9605--01 ~ ; W/2D |
76231-68R00 |
US $169.92 |
||
|
76290
|
76290
76290-60R00 Bracket Assy-Front Fender9605--01 ~ ; W/2D |
76290-60R00 |
US $5.62 |
||
|
76310
|
76310
76312-84R00 Rail-Side Roof, Outer Rh9605--01 ~ ; W/2D |
76312-84R00 |
US $277.92 |
||
|
76311
|
76311
76313-84R00 Rail-Side Roof, Outer Lh9605--01 ~ ; W/2D |
76313-84R00 |
US $277.92 |
||
|
76312M
|
76312M
76380-85R00 Rail Assy-Side Roof, Rear Outer Rh9605--01 ~ ; W/2D |
76380-85R00 |
US $269.28 |
||
|
76313M
|
76313M
76381-85R00 Rail Assy-Side Roof, Rear Outer Lh9605--01 ~ ; W/2D |
76381-85R00 |
US $269.28 |
||
|
76318
|
76318
76352-84R00 Channel-Roof Drip, Rh9605--01 ~ ; W/2D |
76352-84R00 |
US $69.84 |
||
|
76319
|
76319
76353-84R00 Channel-Roof Drip, Lh9605--01 ~ ; W/2D |
76353-84R00 |
US $69.84 |
||
|
76322P
|
76322P
76322-68R00 Brace-Roof Rail, Center Rh9605--01 ~ ; W/2D |
76322-68R00 |
US $69.84 |
||
|
76323P
|
76323P
76323-68R00 Brace-Roof Rail, Center Lh9605--01 ~ ; W/2D |
76323-68R00 |
US $69.84 |
||
|
76410
|
76410
76412-68R00 Sill-Outer, Rh9605--01 ~ ; W/2D |
76412-68R00 |
US $472.94 |
||
|
76411
|
76411
76413-68R00 Sill-Outer, Lh9605--01 ~ ; W/2D |
76413-68R00 |
US $472.94 |
||
|
76414
|
76414
76426-68R00 Reinforcement-Sill Outer, Rh9605--01 ~ ; W/2D |
76426-68R00 |
US $73.15 |
||
|
76414
|
76414
76428-68R01 Reinforcement-Sill Outer, Rear Rh9605--01 ~ ; W/2D |
76428-68R01 |
US $69.84 |
||
|
76414N
|
76414N
76428-68R01 Reinforcement-Sill Outer, Rear Rh9605--01 ~ ; W/2D |
76428-68R01 |
US $69.84 |
||
|
76415
|
76415
76427-68R00 Reinforcement-Sill Outer, Lh9605--01 ~ ; W/2D |
76427-68R00 |
US $73.15 |
||
|
76415
|
76415
76429-68R01 Reinforcement-Sill Outer, Rear Lh9605--01 ~ ; W/2D |
76429-68R01 |
US $69.84 |
||
|
76415N
|
76415N
76429-68R01 Reinforcement-Sill Outer, Rear Lh9605--01 ~ ; W/2D |
76429-68R01 |
US $69.84 |
||
|
76500M
|
76500M
76512-68R50
Pillar-Lock, Rh
9605--01 ~ ; W/2D |
76512-68R50 |
— | ||
|
76501M
|
76501M
76513-68R50
Pillar-Lock, Lh
9605--01 ~ ; W/2D |
76513-68R50 |
— | ||
|
76518
|
76518
76518-68R00 Gusset-Center Pillar, Rh9605--01 ~ ; W/2D |
76518-68R00 |
US $35.28 |
||
|
76519
|
76519
76519-68R00 Gusset-Center Pillar, Lh9605--01 ~ ; W/2D |
76519-68R00 |
US $35.28 |
||
|
76520
|
76520
76532-95R00 Pillar-Center, Inner Rh9605--01 ~ 9703--01; W/2D |
76532-95R00 |
US $93.02 |
||
|
76520
|
76520
76532-WC100
Pillar-Center, Inner Rh
9703--01 ~ ; W/2D |
76532-WC100 |
— | ||
|
76520
|
76520
76532-85R00 Pillar-Center, Inner Upper Rh9605--01 ~ ; W/2D |
76532-85R00 |
US $210.24 |
||
|
76521
|
76521
76533-95R00 Pillar-Center, Inner Lh9605--01 ~ 9703--01; W/2D |
76533-95R00 |
US $93.02 |
||
|
76521
|
76521
76533-WC100
Pillar-Center, Inner Lh
9703--01 ~ ; W/2D |
76533-WC100 |
— | ||
|
76521
|
76521
76533-85R00 Pillar-Center, Inner Upper Lh9605--01 ~ ; W/2D |
76533-85R00 |
US $210.24 |
||
|
76684
|
76684
76584-72R00 Reinforce-Seat Belt Anchor, Rh9605--01 ~ ; W/2D |
76584-72R00 |
US $96.48 |
||
|
76685
|
76685
76585-72R00 Reinforce-Seat Belt Anchor, Lh9605--01 ~ ; W/2D |
76585-72R00 |
US $96.48 |
||
|
77496
|
77496
77496-68R00 Reinforce-Rear, Lower Rh9605--01 ~ ; W/2D |
77496-68R00 |
US $35.28 |
||
|
77497
|
77497
77497-68R00 Reinforce-Rear, Lower9605--01 ~ ; W/2D |
77497-68R00 |
US $35.28 |
