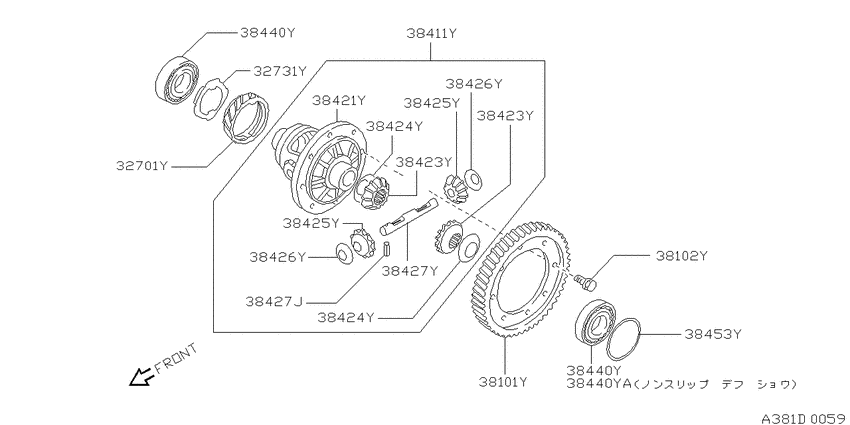

Front final drive (1995-06-01 ~ 1996-05-01; サニー カリフォルニア; GA15DE.MT.F5) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- GA15DE
- drive
- 4WD
- transmission
- MT.F5
- grade
- JS
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38101Y
|
38101Y
38101-64A09 Gear-Final Drive9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38101-64A09 |
US $201.60 |
||
|
38102Y
|
38102Y
38102-6J000 Bolt-Drive Gear9807--01 ~ ; GA15DE.MT +CD20.MT |
38102-6J000 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-M8001 Bolt-Drive Gear9506--01 ~ 9605--01; GA15DE.MT.F5 |
38102-M8001 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-62Y01 Case Compl-Differential9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38411-62Y01 |
US $1,022.35 |
||
|
38421Y
|
38421Y
38421-62Y00 Case-Differential9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38421-62Y00 |
US $630.12 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38423-31X02 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38423-31X02 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38425-31X02 |
US $57.74 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38426-31X02 |
US $4.18 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-50J01 Shaft-Pinion Mate9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38427-50J01 |
US $76.46 |
||
|
38440Y
|
38440Y
38440-76M00 Bearing-Differential Side9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38440-76M00 |
US $187.20 |
||
|
38440Y
|
38440Y
38440-70A00 Bearing-Differential Side9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38440-70A00 |
US $51.26 |
||
|
38440Y
|
38440Y
38440-76M00 Bearing-Differential Side9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38440-76M00 |
US $187.20 |
||
|
38440Y
|
38440Y
38440-70A00 Bearing-Differential Side9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38440-70A00 |
US $51.26 |
||
|
38440YA
|
38440YA
38440-70A00 Bearing-Differential Side9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5 |
38440-70A00 |
US $51.26 |
||
|
38453Y
|
38453Y
38454-76M00 Shim-Adjust, Side Bearing9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.44 |
38454-76M00 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M01 Shim-Adjust, Side Bearing9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.48 |
38454-76M01 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M02 Shim-Adjust, Side Bearing9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.56 |
38454-76M02 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M03 Shim-Adjust, Side Bearing9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.60 |
38454-76M03 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M04 Shim-Adjust, Side Bearing9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.64 |
38454-76M04 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M05 Shim-Adjust, Side Bearing9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.68 |
38454-76M05 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M06 Shim-Adjust, Side Bearing9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.72 |
38454-76M06 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M07 Shim-Adjust, Side Bearing9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.76 |
38454-76M07 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M11 Shim-Adjust, Side Bearing9506--01 ~ 9605--01; 4WD.GA15DE.MT.F5; ｾﾝﾀｸ T=0.40 |
38454-76M11 |
US $7.92 |
