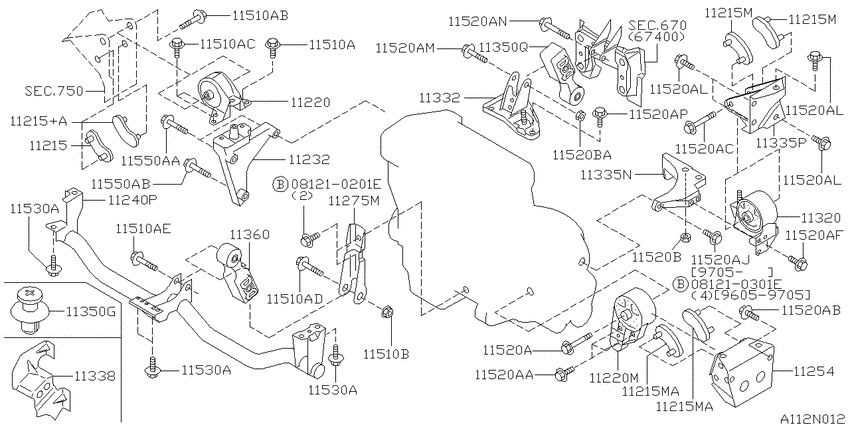

Engine & transmission mounting (1996-05-01 ~ ; ウイングロ-ド; 4WD.SR18DE) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 4WD
- transmission
- AT.F4
- grade
- JS
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9605--01 ~ ; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9605--01 ~ 9705--01; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9605--01 ~ ; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-51E20
STOPPER-ENGINE MOUNTING
9605--01 ~ 9612--01; 4WD.SR18DE |
11215-51E20 |
— | ||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9612--01 ~ ; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11215+A
|
11215+A
1121554E00 STOPPER-ENGINE MOUNTING9605--01 ~ 9705--01; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11215M
|
11215M
1121554E00 STOPPER-ENGINE MOUNTING9605--01 ~ ; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11215M
|
11215M
11215-51E20
STOPPER-ENGINE MOUNTING
9605--01 ~ 9612--01; 4WD.SR18DE |
11215-51E20 |
— | ||
|
11215M
|
11215M
1121554E00 STOPPER-ENGINE MOUNTING9612--01 ~ ; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11215M
|
11215M
1121554E00 STOPPER-ENGINE MOUNTING9605--01 ~ ; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11215M
|
11215M
11215-51E20
STOPPER-ENGINE MOUNTING
9605--01 ~ 9612--01; 4WD.SR18DE |
11215-51E20 |
— | ||
|
11215M
|
11215M
1121554E00 STOPPER-ENGINE MOUNTING9612--01 ~ ; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11215MA
|
11215MA
11215-51E20
STOPPER-ENGINE MOUNTING
9605--01 ~ 9612--01; 4WD.SR18DE |
11215-51E20 |
— | ||
|
11215MA
|
11215MA
1121554E00 STOPPER-ENGINE MOUNTING9612--01 ~ ; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11215MA
|
11215MA
11215-51E20
STOPPER-ENGINE MOUNTING
9605--01 ~ 9612--01; 4WD.SR18DE |
11215-51E20 |
— | ||
|
11215MA
|
11215MA
1121554E00 STOPPER-ENGINE MOUNTING9612--01 ~ ; 4WD.SR18DE |
1121554E00 |
US $17.57 |
||
|
11220
|
11220
11210-4H210 Insulator-Engine Mounting, Front9605--01 ~ ; 4WD.SR18DE |
11210-4H210 |
US $142.13 |
||
|
11220
|
11220
1122061Y10 Insulator Assy-Engine Mounting, Front Lh9605--01 ~ ; 4WD.SR18DE |
1122061Y10 |
US $85.39 |
||
|
11220M
|
11220M
1122061Y10 Insulator Assy-Engine Mounting, Front Lh9605--01 ~ ; 4WD.SR18DE |
1122061Y10 |
US $85.39 |
||
|
11232
|
11232
11231-3J200 Bracket-Engine Mounting, Rh9605--01 ~ ; 4WD.SR18DE |
11231-3J200 |
US $73.30 |
||
|
11240P
|
11240P
11240-60Y00 Member Assy-Front, Center9605--01 ~ ; 4WD.SR18DE |
11240-60Y00 |
US $301.61 |
||
|
11254
|
11254
11253-60Y10 Bracket-Engine Mounting, Lh9605--01 ~ ; 4WD.SR18DE |
11253-60Y10 |
US $73.44 |
||
|
11275M
|
11275M
11274-76E00 BRACKET-ENGINE MOUNTING BLOCK,CENTER9605--01 ~ ; 4WD.SR18DE |
11274-76E00 |
US $36.58 |
||
|
11320
|
11320
11320-4H200 Insulator-Engine Mounting, Rear9605--01 ~ 9608--01; 4WD.SR18DE |
11320-4H200 |
US $95.04 |
||
|
11320
|
11320
11320-4H201 Insulator-Engine Mounting, Rear9608--01 ~ ; 4WD.SR18DE |
11320-4H201 |
US $95.04 |
||
|
11332
|
11332
11332-3J210 Bracket-Engine Mounting, Rear Rh9605--01 ~ 9705--01; 4WD.SR18DE |
11332-3J210 |
US $117.50 |
||
|
11332
|
11332
11332-4H200 Bracket-Engine Mounting, Rear Rh9705--01 ~ ; 4WD.SR18DE |
11332-4H200 |
US $97.49 |
||
|
11335N
|
11335N
11335-61Y12 Support-Engine Mounting, Rear Lh9605--01 ~ ; 4WD.SR18DE |
11335-61Y12 |
US $87.70 |
||
|
11335P
|
11335P
11355-4H200 Bracket-Engine Mounting, Lh Rear9612--01 ~ ; 4WD.SR18DE |
11355-4H200 |
US $60.77 |
||
|
11335P
|
11335P
11355-4H282 Bracket-Engine Mounting, Lh Rear9605--01 ~ 9612--01; 4WD.SR18DE |
11355-4H282 |
US $72.43 |
||
|
11338
|
11338
11338-2J200 Guide-Air, Engine Mounting9807--01 ~ ; 4WD.SR18DE |
11338-2J200 |
US $13.25 |
||
|
11338
|
11338
11338-58Y20 Guide-Air, Engine Mounting9605--01 ~ 9807--01; 4WD.SR18DE |
11338-58Y20 |
US $13.82 |
||
|
11350G
|
11350G
6387801E10 CLIP9605--01 ~ ; 4WD.SR18DE |
6387801E10 |
US $1.11 |
||
|
11350Q
|
11350Q
1135076E10 BRACKET ASSY-ENGINE MOUNTING,REAR9605--01 ~ ; 4WD.SR18DE |
1135076E10 |
US $82.08 |
||
|
11360
|
11360
113601M000 New Genuine Part9605--01 ~ ; 4WD.SR18DE |
113601M000 |
US $91.73 |
||
|
11510A
|
11510A
11298-3J202 Bolt9605--01 ~ ; 4WD.SR18DE |
11298-3J202 |
US $3.46 |
||
|
11510A
|
11510A
01125-02361 BOLT9605--01 ~ ; 4WD.SR18DE |
01125-02361 |
US $2.45 |
||
|
11510A
|
11510A
01125-01811 BOLT9605--01 ~ 9807--01; 4WD.SR18DE |
01125-01811 |
US $3.46 |
||
|
11510A
|
11510A
0112503041 BOLT9807--01 ~ ; 4WD.SR18DE |
0112503041 |
US $3.46 |
||
|
11510A
|
11510A
0112500891 BOLT9605--01 ~ ; 4WD.SR18DE |
0112500891 |
US $3.46 |
||
|
11510A
|
11510A
01125-02081 BOLT9605--01 ~ ; 4WD.SR18DE |
01125-02081 |
US $2.45 |
||
|
11510AB
|
11510AB
01125-02361 BOLT9605--01 ~ ; 4WD.SR18DE |
01125-02361 |
US $2.45 |
||
|
11510AC
|
11510AC
01125-01811 BOLT9605--01 ~ 9807--01; 4WD.SR18DE |
01125-01811 |
US $3.46 |
||
|
11510AC
|
11510AC
0112503041 BOLT9807--01 ~ ; 4WD.SR18DE |
0112503041 |
US $3.46 |
||
|
11510AD
|
11510AD
0112500891 BOLT9605--01 ~ ; 4WD.SR18DE |
0112500891 |
US $3.46 |
||
|
11510AE
|
11510AE
01125-02081 BOLT9605--01 ~ ; 4WD.SR18DE |
01125-02081 |
US $2.45 |
||
|
11510B
|
11510B
0122500082 NUT9605--01 ~ ; 4WD.SR18DE |
0122500082 |
from US $0.61 |
||
|
11520A
|
11520A
11298-0M000 Bolt9605--01 ~ ; 4WD.SR18DE |
11298-0M000 |
US $3.46 |
||
|
11520A
|
11520A
01125-02151 BOLT9605--01 ~ ; 4WD.SR18DE |
01125-02151 |
US $2.45 |
||
|
11520A
|
11520A
0112501951 BOLT9605--01 ~ ; 4WD.SR18DE |
0112501951 |
US $3.46 |
||
|
11520A
|
11520A
01125-01991 BOLT9605--01 ~ 9612--01; 4WD.SR18DE |
01125-01991 |
US $3.46 |
||
|
11520A
|
11520A
01125-03221 BOLT9612--01 ~ ; 4WD.SR18DE |
01125-03221 |
US $3.46 |
||
|
11520A
|
11520A
01125-01791 BOLT9605--01 ~ 9807--01; 4WD.SR18DE |
01125-01791 |
US $2.45 |
||
|
11520A
|
11520A
0112503041 BOLT9807--01 ~ ; 4WD.SR18DE |
0112503041 |
US $3.46 |
||
|
11520A
|
11520A
01121-03441 BOLT9705--01 ~ ; 4WD.SR18DE |
01121-03441 |
US $9.36 |
||
|
11520A
|
11520A
0112501951 BOLT9605--01 ~ ; 4WD.SR18DE |
0112501951 |
US $3.46 |
||
|
11520A
|
11520A
11213-60Y00 Bolt9605--01 ~ ; 4WD.SR18DE |
11213-60Y00 |
US $2.45 |
||
|
11520A
|
11520A
01125-02561 BOLT9605--01 ~ ; 4WD.SR18DE |
01125-02561 |
US $2.45 |
||
|
11520A
|
11520A
01125-01811 BOLT9605--01 ~ 9807--01; 4WD.SR18DE |
01125-01811 |
US $3.46 |
||
|
11520A
|
11520A
0112503041 BOLT9807--01 ~ ; 4WD.SR18DE |
0112503041 |
US $3.46 |
||
|
11520AA
|
11520AA
01125-02151 BOLT9605--01 ~ ; 4WD.SR18DE |
01125-02151 |
US $2.45 |
||
|
11520AB
|
11520AB
0112501951 BOLT9605--01 ~ ; 4WD.SR18DE |
0112501951 |
US $3.46 |
||
|
11520AC
|
11520AC
01125-01991 BOLT9605--01 ~ 9612--01; 4WD.SR18DE |
01125-01991 |
US $3.46 |
||
|
11520AC
|
11520AC
01125-03221 BOLT9612--01 ~ ; 4WD.SR18DE |
01125-03221 |
US $3.46 |
||
|
11520AF
|
11520AF
01125-01791 BOLT9605--01 ~ 9807--01; 4WD.SR18DE |
01125-01791 |
US $2.45 |
||
|
11520AF
|
11520AF
0112503041 BOLT9807--01 ~ ; 4WD.SR18DE |
0112503041 |
US $3.46 |
||
|
11520AJ
|
11520AJ
01121-03441 BOLT9705--01 ~ ; 4WD.SR18DE |
01121-03441 |
US $9.36 |
||
|
11520AL
|
11520AL
0112501951 BOLT9605--01 ~ ; 4WD.SR18DE |
0112501951 |
US $3.46 |
||
|
11520AL
|
11520AL
0112501951 BOLT9605--01 ~ ; 4WD.SR18DE |
0112501951 |
US $3.46 |
||
|
11520AL
|
11520AL
0112501951 BOLT9605--01 ~ ; 4WD.SR18DE |
0112501951 |
US $3.46 |
||
|
11520AM
|
11520AM
11213-60Y00 Bolt9605--01 ~ ; 4WD.SR18DE |
11213-60Y00 |
US $2.45 |
||
|
11520AN
|
11520AN
01125-02561 BOLT9605--01 ~ ; 4WD.SR18DE |
01125-02561 |
US $2.45 |
||
|
11520AP
|
11520AP
01125-01811 BOLT9605--01 ~ 9807--01; 4WD.SR18DE |
01125-01811 |
US $3.46 |
||
|
11520AP
|
11520AP
0112503041 BOLT9807--01 ~ ; 4WD.SR18DE |
0112503041 |
US $3.46 |
||
|
11520B
|
11520B
0122500082 NUT9605--01 ~ ; 4WD.SR18DE |
0122500082 |
from US $0.61 |
||
|
11520B
|
11520B
0122500082 NUT9605--01 ~ 9705--01; 4WD.SR18DE |
0122500082 |
from US $0.61 |
||
|
11520BA
|
11520BA
0122500082 NUT9605--01 ~ 9705--01; 4WD.SR18DE |
0122500082 |
from US $0.61 |
||
|
11530A
|
11530A
0112501951 BOLT9605--01 ~ ; 4WD.SR18DE |
0112501951 |
US $3.46 |
||
|
11530A
|
11530A
0112501951 BOLT9605--01 ~ ; 4WD.SR18DE |
0112501951 |
US $3.46 |
||
|
11530A
|
11530A
0112501951 BOLT9605--01 ~ ; 4WD.SR18DE |
0112501951 |
US $3.46 |
||
|
11550AA
|
11550AA
112983J200 Bolt9605--01 ~ ; 4WD.SR18DE |
112983J200 |
from US $1.74 |
||
|
11550AB
|
11550AB
11298-2J215 Bolt9605--01 ~ ; 4WD.SR18DE |
11298-2J215 |
US $3.46 |
||
|
