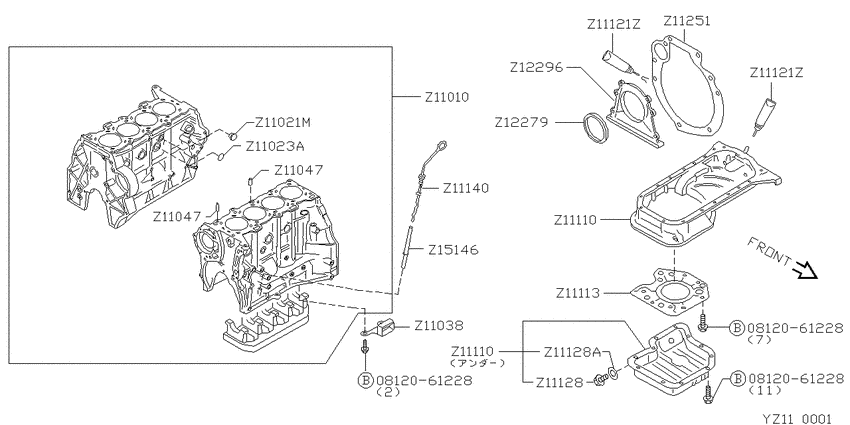

engine mainparts (1997-05-01 ~ ; シリンダー ブロック; ｴｱﾛｴｸｽﾌﾟﾚｽ(SR20DE)) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- CAL
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
Z11010
|
Z11010
11000-2J200 Block Assy-Cylinder9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11000-2J200 |
US $1,778 |
||
|
Z11021M
|
Z11021M
11051-D0100 Plug-Taper9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11051-D0100 |
US $3.06 |
||
|
Z11023A
|
Z11023A
1102660U01 Gasket9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
1102660U01 |
from US $2.49 |
||
|
Z11038
|
Z11038
1103853J00 Plate-Baffle, Crank Case9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
1103853J00 |
US $14.14 |
||
|
Z11047
|
Z11047
11036-V7200 Jet-Oil, Cylinder Head9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11036-V7200 |
US $2.45 |
||
| replacement | |||||
|
Z11047
|
Z11047
11036V720A Jet-Oil, Cylinder Head9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11036V720A |
US $3.60 |
||
|
Z11047
|
Z11047
11047-21000 Jet-Oil, Cylinder Head9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11047-21000 |
US $1.52 |
||
|
Z11047
|
Z11047
11036-V7200 Jet-Oil, Cylinder Head9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11036-V7200 |
US $2.45 |
||
| replacement | |||||
|
Z11047
|
Z11047
11036V720A Jet-Oil, Cylinder Head9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11036V720A |
US $3.60 |
||
|
Z11047
|
Z11047
11047-21000 Jet-Oil, Cylinder Head9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11047-21000 |
US $1.52 |
||
|
Z11110
|
Z11110
111102J210 Pan Assy-Oil9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE ｱﾝﾀﾞｰ |
111102J210 |
from US $102.97 |
||
|
Z11110
|
Z11110
11111-2J200 Pan Assy-Oil9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE ｱﾂﾊﾟｰ |
11111-2J200 |
US $672.60 |
||
|
Z11110
|
Z11110
111102J210 Pan Assy-Oil9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE ｱﾝﾀﾞｰ |
111102J210 |
from US $102.97 |
||
|
Z11110
|
Z11110
11111-2J200 Pan Assy-Oil9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE ｱﾂﾊﾟｰ |
11111-2J200 |
US $672.60 |
||
|
Z11113
|
Z11113
111142J200 Plate-Baffle, Oil Pan9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
111142J200 |
US $18.29 |
||
|
Z11121Z
|
Z11121Z
KP710-00150 Gasket-Liquid9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE[K504] |
KP710-00150 |
US $35.41 |
||
|
Z11121Z
|
Z11121Z
KP710-00150 Gasket-Liquid9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE[K504] |
KP710-00150 |
US $35.41 |
||
|
Z11128
|
Z11128
11128-01M00 Plug-Drain9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11128-01M00 |
US $1.87 |
||
| replacement | |||||
|
Z11128
|
Z11128
1112801M0B Plug-Drain9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
1112801M0B |
from US $2.28 |
||
|
Z11128
|
Z11128
1102601M02 Washer-Drain Plug9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
1102601M02 |
from US $0.91 |
||
|
Z11128A
|
Z11128A
1102601M02 Washer-Drain Plug9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
1102601M02 |
from US $0.91 |
||
|
Z11140
|
Z11140
11140-2J200 Gauge-Oil Level9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11140-2J200 |
US $18.29 |
||
|
Z11251
|
Z11251
30411-53J00 Plate-Engine, Rear9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
30411-53J00 |
US $66.67 |
||
| replacement | |||||
|
Z11251
|
Z11251
30411-4E000 PLATE-ENGINE,REAR9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
30411-4E000 |
US $60.77 |
||
|
Z12279
|
Z12279
12279-1N500
Seal-Oil, Crankshaft Rear
9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE NOK |
12279-1N500 |
— | ||
| replacement | |||||
|
Z12279
|
Z12279
122791N510 Seal-Oil, Crankshaft Rear9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE NOK |
122791N510 |
from US $17.71 |
||
|
Z12279
|
Z12279
122791N510 Seal-Oil, Crankshaft Rear9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE NDK |
122791N510 |
from US $17.71 |
||
|
Z12296
|
Z12296
1229753J00 Retainer-Oil Seal, Rear9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
1229753J00 |
from US $39.52 |
||
|
Z15146
|
Z15146
11150-2J200 Guide-Oil Level Gauge9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
11150-2J200 |
US $24.34 |
||
| replacement | |||||
|
Z15146
|
Z15146
111502J20A
ｶﾞｲﾄﾞ
9705--01 ~ ; W/4D.2WD.SR18DE; ｴｱﾛｴｸｽﾌﾟﾚｽｼﾖｳ SR20DE |
111502J20A |
— | ||
