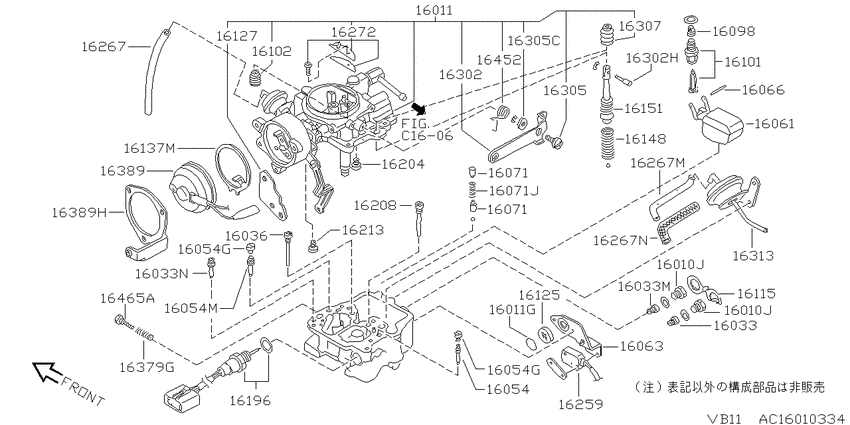

Carburetor (1988-05-01 ~ ; チョークチャンバー 関係構成部品; E15S) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1985 - 1988
- Sales region
- Japan
- Engine
- E15S
- transmission
- F5
- Number of doors
- 4V
- grade
- SGL
- capacity
- 5S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16010J
|
16010J
16272N2810 Plug-Drain8210--01 ~ 8805--01; E15S |
16272N2810 |
US $4.30 |
||
|
16010J
|
16010J
16272N2810 Plug-Drain8210--01 ~ 8805--01; E15S |
16272N2810 |
US $4.30 |
||
|
16011
|
16011
16011-19M03 Chamber Assy-Choke8210--01 ~ 8307--01; E15S |
16011-19M03 |
US $719.33 |
||
|
16011
|
16011
16011-19M05 Chamber Assy-Choke8307--01 ~ 8410--01; E15S |
16011-19M05 |
US $461.62 |
||
|
16011
|
16011
16011-25M63 Chamber Assy-Choke8509--01 ~ 8805--01; E15S |
16011-25M63 |
US $584.81 |
||
|
16011
|
16011
16011-47A06
Chamber Assy-Choke
8805--01 ~ ; E15S |
16011-47A06 |
— | ||
|
16011
|
16011
A6011-19M01 Chamber Assy-Choke8410--01 ~ 8509--01; E15S |
A6011-19M01 |
US $666.94 |
||
|
16011
|
16011
17160-C0160 Seal-O Ring8210--01 ~ 8805--01; E15S |
17160-C0160 |
US $4.18 |
||
|
16011
|
16011
17160-C0610
Packing
8805--01 ~ ; E15S |
17160-C0610 |
— | ||
|
16011G
|
16011G
17160-C0160 Seal-O Ring8210--01 ~ 8805--01; E15S |
17160-C0160 |
US $4.18 |
||
|
16011G
|
16011G
17160-C0610
Packing
8805--01 ~ ; E15S |
17160-C0610 |
— | ||
|
16033
|
16033
16033-H8805 Jet-Main8805--01 ~ ; E15S |
16033-H8805 |
US $11.38 |
||
|
16033
|
16033
16033-M4900 Jet-Main8210--01 ~ 8805--01; E15S; #103 |
16033-M4900 |
US $22.46 |
||
|
16033
|
16033
16033-23M20
Jet-Main
8805--01 ~ ; E15S |
16033-23M20 |
— | ||
|
16033
|
16033
16033-79401 Jet-Main8210--01 ~ 8805--01; E15S; #130 |
16033-79401 |
US $11.38 |
||
|
16033
|
16033
16037-52A00
Jet-Mixture
8805--01 ~ ; E15S |
16037-52A00 |
— | ||
|
16033M
|
16033M
16033-23M20
Jet-Main
8805--01 ~ ; E15S |
16033-23M20 |
— | ||
|
16033M
|
16033M
16033-79401 Jet-Main8210--01 ~ 8805--01; E15S; #130 |
16033-79401 |
US $11.38 |
||
|
16033N
|
16033N
16037-52A00
Jet-Mixture
8805--01 ~ ; E15S |
16037-52A00 |
— | ||
|
16036
|
16036
16036-11M03 Bleed-Main Air8805--01 ~ ; E15S |
16036-11M03 |
US $9.98 |
||
|
16054
|
16054
16055-H8200 Jet-Slow8210--01 ~ 8805--01; E15S; #43 |
16055-H8200 |
US $18.43 |
||
|
16054
|
16054
16286-H7200 Plug8805--01 ~ ; E15S |
16286-H7200 |
US $3.32 |
||
|
16054
|
16054
16055-11M02 Jet-Slow8210--01 ~ 8805--01; E15S; #75 |
16055-11M02 |
US $15.41 |
||
|
16054G
|
16054G
16286-H7200 Plug8805--01 ~ ; E15S |
16286-H7200 |
US $3.32 |
||
|
16054G
|
16054G
16286-H7200 Plug8805--01 ~ ; E15S |
16286-H7200 |
US $3.32 |
||
|
16054M
|
16054M
16055-11M02 Jet-Slow8210--01 ~ 8805--01; E15S; #75 |
16055-11M02 |
US $15.41 |
||
|
16061
|
16061
1606111M02 Float8210--01 ~ 8805--01; E15S |
1606111M02 |
US $11.36 |
||
|
16063
|
16063
16063-52A02
Cover-Gauge Lever
8805--01 ~ ; E15S |
16063-52A02 |
— | ||
|
16066
|
16066
16066-H7200 Shaft-Float8210--01 ~ 8805--01; E15S |
16066-H7200 |
US $3.18 |
||
|
16071
|
16071
16171-11M00 Weight-Injector8210--01 ~ 8805--01; E15S |
16171-11M00 |
US $2.08 |
||
|
16071
|
16071
16069-11M00 Spring-Injector8210--01 ~ 8805--01; E15S |
16069-11M00 |
US $2.08 |
||
|
16071
|
16071
16171-11M00 Weight-Injector8210--01 ~ 8805--01; E15S |
16171-11M00 |
US $2.08 |
||
|
16071
|
16071
16069-11M00 Spring-Injector8210--01 ~ 8805--01; E15S |
16069-11M00 |
US $2.08 |
||
|
16071J
|
16071J
16069-11M00 Spring-Injector8210--01 ~ 8805--01; E15S |
16069-11M00 |
US $2.08 |
||
|
16098
|
16098
16098-01B00 Filter8210--01 ~ 8805--01; E15S |
16098-01B00 |
US $9.43 |
||
|
16101
|
16101
16101-33M12 Valve-Needle8805--01 ~ ; E15S |
16101-33M12 |
US $20.66 |
||
|
16101
|
16101
16101-H7860 Valve-Needle8410--01 ~ 8509--01; E15S |
16101-H7860 |
US $13.39 |
||
|
16101
|
16101
16101-H9060 Valve-Needle8210--01 ~ 8410--01; E15S |
16101-H9060 |
US $13.68 |
||
|
16102
|
16102
1610211M07
Mixture Control Solenoid Valve
8805--01 ~ ; E15S |
1610211M07 |
— | ||
|
16115
|
16115
16082-23M00 Plate-Adjust8210--01 ~ 8805--01; E15S |
16082-23M00 |
US $8.93 |
||
|
16115
|
16115
16273-08B06
Plate-Adjust
8805--01 ~ ; E15S |
16273-08B06 |
— | ||
|
16115
|
16115
16082-23M00 Plate-Adjust8805--01 ~ ; E15S |
16082-23M00 |
US $8.93 |
||
|
16125
|
16125
16125-08B05 Gauge-Level8611--01 ~ 8805--01; E15S |
16125-08B05 |
US $5.04 |
||
|
16125
|
16125
16125-11M02 Gauge-Level8210--01 ~ 8611--01; E15S |
16125-11M02 |
US $5.04 |
||
| replacement | |||||
|
16125
|
16125
16125-08B05 Gauge-Level8210--01 ~ 8611--01; E15S |
16125-08B05 |
US $5.04 |
||
|
16125
|
16125
16125-61A04
Gauge-Level
8805--01 ~ ; E15S |
16125-61A04 |
— | ||
|
16127
|
16127
16127-10B12 Plate-Return8805--01 ~ ; E15S |
16127-10B12 |
US $8.93 |
||
|
16127
|
16127
16127-11M02 Plate-Return8210--01 ~ 8311--01; E15S |
16127-11M02 |
US $4.18 |
||
|
16127
|
16127
16127-18B00 Plate-Return8805--01 ~ ; E15S |
16127-18B00 |
US $9.36 |
||
|
16127
|
16127
16127-19M02 Plate-Return8311--01 ~ 8805--01; E15S |
16127-19M02 |
US $6.19 |
||
|
16127
|
16127
16156-11M02 Clip8210--01 ~ 8509--01; E15S |
16156-11M02 |
US $3.46 |
||
|
16127
|
16127
16156-33M20 Clip8509--01 ~ 8805--01; E15S |
16156-33M20 |
US $4.03 |
||
|
16137M
|
16137M
16390-19M03 Plate-Stopping8210--01 ~ 8805--01; E15S |
16390-19M03 |
US $5.04 |
||
|
16137M
|
16137M
16390-47A06 Stopper-Cam8805--01 ~ ; E15S |
16390-47A06 |
US $8.93 |
||
|
16148
|
16148
16148-H1000 Spring-Return, Piston8210--01 ~ 8805--01; E15S |
16148-H1000 |
US $6.66 |
||
|
16151
|
16151
16151-11M00 Piston8210--01 ~ 8805--01; E15S |
16151-11M00 |
US $23.04 |
||
|
16151
|
16151
1615152A00
Piston
8805--01 ~ ; E15S |
1615152A00 |
— | ||
|
16196
|
16196
16176-19M01 Iacv-Ficd Solenoid Valve8210--01 ~ 8509--01; E15S |
16176-19M01 |
US $82.82 |
||
|
16196
|
16196
16176-45A00 Iacv-Ficd Solenoid Valve8611--01 ~ 8805--01; E15S |
16176-45A00 |
US $89.14 |
||
|
16196
|
16196
16176-47A05 Iacv-Ficd Solenoid Valve8805--01 ~ ; E15S |
16176-47A05 |
US $98.93 |
||
|
16196
|
16196
16196-63A00 Iacv-Ficd Solenoid Valve8509--01 ~ 8611--01; E15S |
16196-63A00 |
US $101.66 |
||
|
16196
|
16196
16184-H8900 Holder Assy-Adjust Screw8210--01 ~ 8805--01; E15S |
16184-H8900 |
US $6.05 |
||
|
16196
|
16196
1619652A02
Iacv-Ficd Solenoid Valve
8805--01 ~ ; E15S |
1619652A02 |
— | ||
|
16196
|
16196
16196-52A01
Iacv-Ficd Solenoid Valve
8805--01 ~ ; E15S |
16196-52A01 |
— | ||
|
16204
|
16204
16204-11M07 Bleed-Slow Air8805--01 ~ ; E15S |
16204-11M07 |
US $6.05 |
||
|
16204
|
16204
16204-H9800 Bleed-Slow Air8210--01 ~ 8805--01; E15S; #190 |
16204-H9800 |
US $5.90 |
||
|
16208
|
16208
16036-11M02 Bleed-Main Air8210--01 ~ 8805--01; E15S; #70 |
16036-11M02 |
US $9.65 |
||
|
16208
|
16208
16036-52A00
Bleed-Main Air
8805--01 ~ ; E15S |
16036-52A00 |
— | ||
|
16213
|
16213
16204-H9501 Bleed-Slow Air8210--01 ~ 8805--01; E15S; #80 |
16204-H9501 |
US $6.66 |
||
|
16259
|
16259
16260-11M07 Throttle Position Switch8805--01 ~ ; E15S |
16260-11M07 |
US $37.58 |
||
|
16267
|
16267
16267-19M01 Pipe-Rubber8210--01 ~ 8509--01; E15S |
16267-19M01 |
US $13.68 |
||
|
16267
|
16267
16267-25M66 Pipe-Rubber, Carburetor8509--01 ~ 8805--01; E15S |
16267-25M66 |
US $9.79 |
||
|
16267
|
16267
16267-52A01 Pipe-Rubber8805--01 ~ 8901--01; E15S.MT |
16267-52A01 |
US $9.79 |
||
|
16267
|
16267
16267-52A03 Pipe-Rubber8901--01 ~ ; E15S.MT |
16267-52A03 |
US $11.66 |
||
|
16267
|
16267
16267-H9520 Pipe-Rubber, Carburetor8210--01 ~ 8805--01; E15S |
16267-H9520 |
US $10.51 |
||
| replacement | |||||
|
16267
|
16267
16267-13M03 ﾊﾟｲﾌﾟ,ﾗﾊﾞ- ｷﾔﾌﾞﾚ-ﾀ-8210--01 ~ 8805--01; E15S |
16267-13M03 |
US $13.03 |
||
|
16267
|
16267
16267-52A00 Pipe-Rubber, Carburetor8805--01 ~ ; E15S |
16267-52A00 |
US $5.18 |
||
|
16267M
|
16267M
16267-H9520 Pipe-Rubber, Carburetor8210--01 ~ 8805--01; E15S |
16267-H9520 |
US $10.51 |
||
| replacement | |||||
|
16267M
|
16267M
16267-13M03 ﾊﾟｲﾌﾟ,ﾗﾊﾞ- ｷﾔﾌﾞﾚ-ﾀ-8210--01 ~ 8805--01; E15S |
16267-13M03 |
US $13.03 |
||
|
16267N
|
16267N
16267-52A00 Pipe-Rubber, Carburetor8805--01 ~ ; E15S |
16267-52A00 |
US $5.18 |
||
|
16272
|
16272
16008-52A00 Cover-Pump Diaphragm8805--01 ~ ; E15S |
16008-52A00 |
US $26.21 |
||
|
16302
|
16302
16302-63A00 Lever-Pump8805--01 ~ ; E15S |
16302-63A00 |
US $15.12 |
||
|
16302
|
16302
16302-M4961 Lever-Pump8210--01 ~ 8805--01; E15S |
16302-M4961 |
US $4.90 |
||
|
16302
|
16302
16198-18B00 Pin-Cotter8805--01 ~ ; E15S |
16198-18B00 |
US $1.73 |
||
|
16302H
|
16302H
16198-18B00 Pin-Cotter8805--01 ~ ; E15S |
16198-18B00 |
US $1.73 |
||
|
16305
|
16305
16305-19915 Shaft-Pump Lever8210--01 ~ 8805--01; E15S |
16305-19915 |
US $3.88 |
||
|
16305
|
16305
16453-H1000
Washer
8210--01 ~ 8805--01; E15S |
16453-H1000 |
— | ||
|
16305
|
16305
16116-12M04 Collar8805--01 ~ ; E15S |
16116-12M04 |
US $3.02 |
||
|
16305C
|
16305C
16453-H1000
Washer
8210--01 ~ 8805--01; E15S |
16453-H1000 |
— | ||
|
16307
|
16307
16307-04000
Cover-Pump
8210--01 ~ 8805--01; E15S |
16307-04000 |
— | ||
| replacement | |||||
|
16307
|
16307
16307-77A00 Cover-Pump8210--01 ~ 8805--01; E15S |
16307-77A00 |
US $6.79 |
||
|
16307
|
16307
16307-77A00 Cover-Pump8805--01 ~ ; E15S |
16307-77A00 |
US $6.79 |
||
|
16313
|
16313
16313-11M02 Diaphragm Assy-Chamber8210--01 ~ 8509--01; E15S |
16313-11M02 |
US $52.70 |
||
|
16313
|
16313
16313-11M03 Diaphragm Assy-Chamber8509--01 ~ 8805--01; E15S |
16313-11M03 |
US $55.15 |
||
|
16313
|
16313
16313-47A05 Diaphragm Assy-Chamber8805--01 ~ ; E15S |
16313-47A05 |
US $70.85 |
||
|
16379G
|
16379G
16145-11M00 Spring-Adjust Screw8210--01 ~ 8805--01; E15S |
16145-11M00 |
US $3.02 |
||
|
16379G
|
16379G
16145-31M15 Spring8805--01 ~ ; E15S |
16145-31M15 |
US $0.86 |
||
|
16389
|
16389
16389-19M01 Cover-Thermo8210--01 ~ 8509--01; E15S |
16389-19M01 |
US $152.64 |
||
|
16389
|
16389
16389-47A06 Cover-Thermo8805--01 ~ ; E15S |
16389-47A06 |
US $99.94 |
||
|
16389
|
16389
16389-63A00 Cover-Thermo8509--01 ~ 8805--01; E15S |
16389-63A00 |
US $142.27 |
||
|
16389
|
16389
16390-67A00 Plate-Thermo Cover8805--01 ~ ; E15S |
16390-67A00 |
US $7.34 |
||
|
16389
|
16389
16390-H7200 Plate-Thermo Cover8210--01 ~ 8805--01; E15S |
16390-H7200 |
US $8.06 |
||
|
16389H
|
16389H
16390-67A00 Plate-Thermo Cover8805--01 ~ ; E15S |
16390-67A00 |
US $7.34 |
||
|
16389H
|
16389H
16390-H7200 Plate-Thermo Cover8210--01 ~ 8805--01; E15S |
16390-H7200 |
US $8.06 |
||
|
16452
|
16452
16452-01B10 Spring-Pump Lever8805--01 ~ ; E15S |
16452-01B10 |
US $4.16 |
||
|
16452
|
16452
16452-11M02 Spring-Pump Lever8210--01 ~ 8805--01; E15S |
16452-11M02 |
US $4.18 |
||
|
16465A
|
16465A
16145-12M02 Screw8805--01 ~ ; E15S |
16145-12M02 |
US $6.05 |
||
