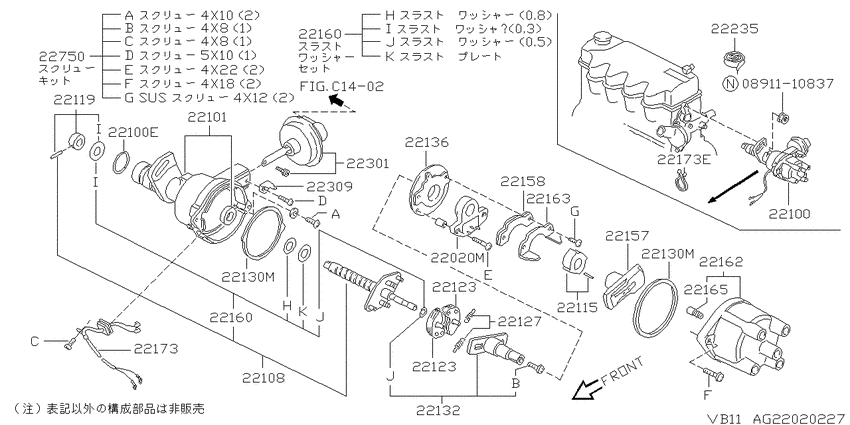

Distributor (1988-05-01 ~ ; 日立; E15S) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1985 - 1988
- Sales region
- Japan
- Engine
- E15S
- transmission
- F5
- Number of doors
- 4V
- grade
- SGL
- capacity
- 5S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
22020M
|
22020M
22020-15M20
Transistor Ignition Unit
8805--01 ~ ; E15S; ﾋﾀﾁ |
22020-15M20 |
— | ||
|
22100
|
22100
22100-19M01 Distributor Assy8210--01 ~ 8604--01; E15S.MT; ﾋﾀﾁ |
22100-19M01 |
US $320.02 |
||
|
22100
|
22100
22100-19M03 Distributor Assy8604--01 ~ 8805--01; E15S.MT; ﾋﾀﾁ |
22100-19M03 |
US $320.02 |
||
|
22100
|
22100
22100-52A02 Distributor Assy8805--01 ~ 8812--01; E15S.MT; ﾋﾀﾁ D4R85-06 |
22100-52A02 |
US $1,470 |
||
|
22100
|
22100
22100-52A03 Distributor Assy8812--01 ~ ; E15S.MT; ﾋﾀﾁ |
22100-52A03 |
US $1,470 |
||
|
22100
|
22100
2213150A00 Seal-O Ring8805--01 ~ ; E15S; ﾋﾀﾁ |
2213150A00 |
US $5.27 |
||
|
22100
|
22100
22131-78501 Seal-O Ring8210--01 ~ 8805--01; E15S; ﾋﾀﾁ |
22131-78501 |
US $4.18 |
||
|
22100
|
22100
B2131-01M00 Seal-Oil8210--01 ~ 8805--01; E15S; ﾋﾀﾁ |
B2131-01M00 |
from US $8.97 |
||
|
22100E
|
22100E
2213150A00 Seal-O Ring8805--01 ~ ; E15S; ﾋﾀﾁ |
2213150A00 |
US $5.27 |
||
|
22100E
|
22100E
22131-78501 Seal-O Ring8210--01 ~ 8805--01; E15S; ﾋﾀﾁ |
22131-78501 |
US $4.18 |
||
|
22101
|
22101
22101-11M06
Housing Assy-Distributor
8812--01 ~ ; E15S; ﾋﾀﾁ |
22101-11M06 |
— | ||
|
22101
|
22101
22101-52A01 Housing Assy-Distributor8805--01 ~ 8812--01; E15S; ﾋﾀﾁ |
22101-52A01 |
US $43.06 |
||
|
22108
|
22108
2210801B01
Shaft Assy
8606--01 ~ 8805--01; E15S; ﾋﾀﾁ |
2210801B01 |
— | ||
|
22108
|
22108
22108-01M01 Shaft Assy8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22108-01M01 |
US $73.15 |
||
|
22108
|
22108
22108-11M03 Shaft Assy8805--01 ~ 8812--01; E15S; ﾋﾀﾁ |
22108-11M03 |
US $75.31 |
||
|
22115
|
22115
22115-15M00
Signal Roto Assy
8805--01 ~ ; E15S; ﾋﾀﾁ |
22115-15M00 |
— | ||
|
22119
|
22119
22119-01M01 Coupling Set8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22119-01M01 |
US $7.34 |
||
|
22123
|
22123
22109-A5500 Weight-Governor8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22109-A5500 |
US $6.19 |
||
|
22123
|
22123
22109-N0560 Weight-Governor8812--01 ~ ; E15S; ﾋﾀﾁ |
22109-N0560 |
US $12.24 |
||
|
22123
|
22123
22109W0560 Weight-Governor8805--01 ~ 8812--01; E15S; ﾋﾀﾁ |
22109W0560 |
US $11.95 |
||
|
22123
|
22123
22109-A5500 Weight-Governor8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22109-A5500 |
US $6.19 |
||
|
22123
|
22123
22109-N0560 Weight-Governor8812--01 ~ ; E15S; ﾋﾀﾁ |
22109-N0560 |
US $12.24 |
||
|
22123
|
22123
22109W0560 Weight-Governor8805--01 ~ 8812--01; E15S; ﾋﾀﾁ |
22109W0560 |
US $11.95 |
||
|
22127
|
22127
22110-11M00 Spring-Governor8805--01 ~ ; E15S; ﾋﾀﾁ |
22110-11M00 |
US $11.23 |
||
|
22127
|
22127
22110-19M00 Spring-Governor8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22110-19M00 |
US $4.18 |
||
|
22127
|
22127
22110-19M03
Spring-Governor
8606--01 ~ 8805--01; E15S; ﾋﾀﾁ |
22110-19M03 |
— | ||
|
22130M
|
22130M
22185-01B01 Packing8606--01 ~ 8805--01; E15S; ﾋﾀﾁ |
22185-01B01 |
US $5.62 |
||
|
22130M
|
22130M
22185-11M06 Packing8812--01 ~ ; E15S; ﾋﾀﾁ |
22185-11M06 |
US $5.27 |
||
|
22130M
|
22130M
22185-50A01 Packing8805--01 ~ 8812--01; E15S; ﾋﾀﾁ |
22185-50A01 |
US $4.61 |
||
|
22130M
|
22130M
22185-01B01 Packing8606--01 ~ 8805--01; E15S; ﾋﾀﾁ |
22185-01B01 |
US $5.62 |
||
|
22130M
|
22130M
22185-11M06 Packing8812--01 ~ ; E15S; ﾋﾀﾁ |
22185-11M06 |
US $5.27 |
||
|
22130M
|
22130M
22185-50A01 Packing8805--01 ~ 8812--01; E15S; ﾋﾀﾁ |
22185-50A01 |
US $4.61 |
||
|
22132
|
22132
22132-01M01
Cam Set
8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22132-01M01 |
— | ||
|
22132
|
22132
22132-11M03 Cam Set8805--01 ~ 8812--01; E15S; ﾋﾀﾁ |
22132-11M03 |
US $30.10 |
||
|
22132
|
22132
22132-11M06
Cam Set
8812--01 ~ ; E15S; ﾋﾀﾁ |
22132-11M06 |
— | ||
|
22132
|
22132
22132-19M03 Cam Set8606--01 ~ 8805--01; E15S; ﾋﾀﾁ |
22132-19M03 |
US $33.12 |
||
|
22136
|
22136
22136-01B01 Plate Assy-Breaker8606--01 ~ 8805--01; E15S; ﾋﾀﾁ |
22136-01B01 |
US $40.46 |
||
|
22136
|
22136
22136-D4700
Plate Assy-Breaker
8805--01 ~ ; E15S; ﾋﾀﾁ |
22136-D4700 |
— | ||
|
22136
|
22136
22136-M5600 Plate Assy-Breaker8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22136-M5600 |
US $111.31 |
||
|
22157
|
22157
2215701B01
Rotor-Head
8606--01 ~ 8812--01; E15S; ﾋﾀﾁ |
2215701B01 |
— | ||
|
22157
|
22157
2215703A00 Rotor-Head8812--01 ~ ; E15S; ﾋﾀﾁ |
2215703A00 |
US $17.04 |
||
|
22157
|
22157
22157-H7200 Rotor-Head8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22157-H7200 |
US $24.91 |
||
|
22158
|
22158
22158-V6400
Magnet Assy
8805--01 ~ ; E15S; ﾋﾀﾁ |
22158-V6400 |
— | ||
|
22160
|
22160
22160-M5600 Washer Set-Thrust8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22160-M5600 |
US $4.03 |
||
|
22160
|
22160
22160-N8500 Washer Set-Thrust8805--01 ~ ; E15S; ﾋﾀﾁ |
22160-N8500 |
US $5.18 |
||
|
22160
|
22160
22160-M5600 Washer Set-Thrust8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22160-M5600 |
US $4.03 |
||
|
22160
|
22160
22160-N8500 Washer Set-Thrust8805--01 ~ ; E15S; ﾋﾀﾁ |
22160-N8500 |
US $5.18 |
||
|
22162
|
22162
2216201B01 Cap Assy-Distributor8606--01 ~ 8805--01; E15S; ﾋﾀﾁ |
2216201B01 |
US $126.68 |
||
|
22162
|
22162
22162-19M00
Cap Assy-Distributor
8509--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22162-19M00 |
— | ||
| replacement | |||||
|
22162
|
22162
22162-19M01
Cap Assy-Distributor
8509--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22162-19M01 |
— | ||
|
22162
|
22162
22162-52A01 Cap Assy-Distributor8805--01 ~ 8812--01; E15S; ﾋﾀﾁ |
22162-52A01 |
US $59.47 |
||
|
22162
|
22162
22162-U6002
Cap Assy-Distributor
8210--01 ~ 8307--01; E15S; ﾋﾀﾁ |
22162-U6002 |
— | ||
|
22162
|
22162
22162-U6003
Cap Assy-Distributor
8307--01 ~ 8410--01; E15S; ﾋﾀﾁ |
22162-U6003 |
— | ||
|
22162
|
22162
22162-U6004
Cap Assy-Distributor
8410--01 ~ 8509--01; E15S; ﾋﾀﾁ |
22162-U6004 |
— | ||
|
22163
|
22163
22163-15M00
Stator
8805--01 ~ ; E15S; ﾋﾀﾁ |
22163-15M00 |
— | ||
|
22165
|
22165
22165-30101 Point Assy-Carbon8210--01 ~ 8307--01; E15S; ﾋﾀﾁ |
22165-30101 |
US $5.81 |
||
|
22165
|
22165
22165W0561 Point Assy-Carbon8307--01 ~ ; E15S; ﾋﾀﾁ |
22165W0561 |
US $2.49 |
||
|
22173
|
22173
22159-52A03 Harness Assy-Distributor8812--01 ~ ; E15S; ﾋﾀﾁ |
22159-52A03 |
US $67.25 |
||
|
22173
|
22173
22159-52A05 Harness Assy-Distributor8805--01 ~ 8812--01; E15S; ﾋﾀﾁ |
22159-52A05 |
US $43.06 |
||
|
22173
|
22173
01552-00071 LOCK-PURSE8805--01 ~ ; *(E13S+E15S); ｶﾝﾚｲﾁ ｼﾖｳ |
01552-00071 |
US $1.73 |
||
|
22173
|
22173
22472-M7000 Clamp-Tube8805--01 ~ ; E13S+E15S |
22472-M7000 |
US $3.46 |
||
|
22173E
|
22173E
01552-00071 LOCK-PURSE8805--01 ~ ; *(E13S+E15S); ｶﾝﾚｲﾁ ｼﾖｳ |
01552-00071 |
US $1.73 |
||
|
22173E
|
22173E
22472-M7000 Clamp-Tube8805--01 ~ ; E13S+E15S |
22472-M7000 |
US $3.46 |
||
|
22235
|
22235
B2235-U7410
Tape-Seal, Distributor
8210--01 ~ ; E13S+E15S |
B2235-U7410 |
— | ||
| replacement | |||||
|
22235
|
22235
22235-U7400 Tape-Seal, Distributor8210--01 ~ ; E13S+E15S |
22235-U7400 |
from US $0.50 |
||
|
22301
|
22301
22301-19M01 Control Assy-Vacuum8210--01 ~ 8606--01; E15S.MT; ﾋﾀﾁ |
22301-19M01 |
US $109.87 |
||
|
22301
|
22301
22301-19M03 Control Assy-Vacuum8606--01 ~ 8805--01; E15S.MT; ﾋﾀﾁ |
22301-19M03 |
US $101.81 |
||
|
22301
|
22301
22301-52A01 Control Assy-Vacuum8805--01 ~ ; E15S.MT; ﾋﾀﾁ |
22301-52A01 |
US $92.45 |
||
|
22309
|
22309
22309-52L00 Terminal-Earth8606--01 ~ ; E15S; ﾋﾀﾁ |
22309-52L00 |
US $2.45 |
||
|
22309
|
22309
22309-M5600 Terminal-Earth8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22309-M5600 |
US $4.90 |
||
|
22750
|
22750
22750-01B01 Screw Kit8606--01 ~ 8805--01; E15S; ﾋﾀﾁ |
22750-01B01 |
US $8.64 |
||
|
22750
|
22750
22750-11M03 Screw Kit8805--01 ~ 8812--01; E15S; ﾋﾀﾁ |
22750-11M03 |
US $7.63 |
||
|
22750
|
22750
22750-11M06
Screw Kit
8812--01 ~ ; E15S; ﾋﾀﾁ |
22750-11M06 |
— | ||
|
22750
|
22750
22750-M5600 Screw Kit8210--01 ~ 8606--01; E15S; ﾋﾀﾁ |
22750-M5600 |
US $8.93 |
||
