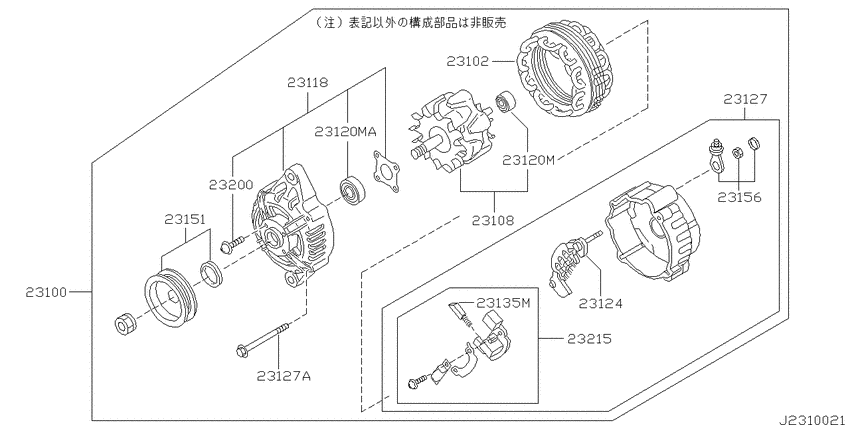

Alternator (1999-06-01 ~ 2005-12-01; YD22DD.AT) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2005
- Sales region
- Japan
- Engine
- YD22DD
- drive
- 4WD
- transmission
- AT
- grade
- VX/G
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-5M315 Alternator Assy9906--01 ~ 0206--01; YD22DD.AT; ﾐﾂﾋﾞｼ |
23100-5M315 |
US $1,414 |
||
|
23100
|
23100
23100-5M316 Alternator Assy0206--01 ~ 0512--01; YD22DD.AT; ﾐﾂﾋﾞｼ |
23100-5M316 |
US $1,540 |
||
|
23100
|
23100
0122100381 NUT9906--01 ~ 0512--01; YD22DD |
0122100381 |
from US $5.85 |
||
|
23102
|
23102
23102-5M310 Stator Assy9906--01 ~ 0011--01; YD22DD; ﾐﾂﾋﾞｼ |
23102-5M310 |
US $635.78 |
||
|
23102
|
23102
23102-5M311 Stator Assy0011--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
23102-5M311 |
from US $525.34 |
||
|
23108
|
23108
23108-AD210 Rotor Assy9906--01 ~ 0011--01; YD22DD; ﾐﾂﾋﾞｼ |
23108-AD210 |
US $423.38 |
||
|
23108
|
23108
23108-AD211 Rotor Assy0011--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
23108-AD211 |
from US $346.92 |
||
|
23118
|
23118
23118-AD210 Cover Assy-Front9906--01 ~ 0512--01; YD22DD.AT; ﾐﾂﾋﾞｼ |
23118-AD210 |
US $113.04 |
||
|
23120M
|
23120M
23120-30R10
Bearing-Ball
9906--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
23120-30R10 |
— | ||
| replacement | |||||
|
23120M
|
23120M
2312051E10 BEARING-BALL9906--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
2312051E10 |
from US $34.67 |
||
|
23120M
|
23120M
23120-22J20 Bearing-Ball9906--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23120MA
|
23120MA
23120-22J20 Bearing-Ball9906--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23124
|
23124
23124-5M310 Rectifier Assy9906--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
23124-5M310 |
from US $168.48 |
||
|
23127
|
23127
23127-5M315 Cover Assy-Rear9906--01 ~ 0408--01; YD22DD.AT; ﾐﾂﾋﾞｼ |
23127-5M315 |
US $620.21 |
||
|
23127
|
23127
23127-5M316 Cover Assy-Rear0408--01 ~ 0512--01; YD22DD.AT; ﾐﾂﾋﾞｼ |
23127-5M316 |
US $736.32 |
||
|
23127
|
23127
23131-20P10 Bolt-Through9906--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23127A
|
23127A
23131-20P10 Bolt-Through9906--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23135M
|
23135M
231420B000 Brush-F9906--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
231420B000 |
from US $13.54 |
||
|
23151
|
23151
23151-AD210 Pulley-Alternator9906--01 ~ 0208--01; YD22DD.AT; ﾐﾂﾋﾞｼ |
23151-AD210 |
US $250.56 |
||
|
23151
|
23151
23151-AD211 Pulley-Alternator0208--01 ~ 0512--01; YD22DD.AT; ﾐﾂﾋﾞｼ |
23151-AD211 |
US $244.80 |
||
|
23156
|
23156
231560M810 Terminal Assy-B9906--01 ~ 0408--01; YD22DD; ﾐﾂﾋﾞｼ |
231560M810 |
from US $6.07 |
||
|
23156
|
23156
23156-AU410 Terminal Assy-B0408--01 ~ 0512--01; YD22DD.AT; ﾐﾂﾋﾞｼ |
23156-AU410 |
US $12.10 |
||
|
23200
|
23200
23115-20P10 Screw Set9906--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
23115-20P10 |
US $5.04 |
||
|
23215
|
23215
23215-AD210 Regulator Assy-Ic9906--01 ~ 0512--01; YD22DD; ﾐﾂﾋﾞｼ |
23215-AD210 |
US $273.60 |
||
