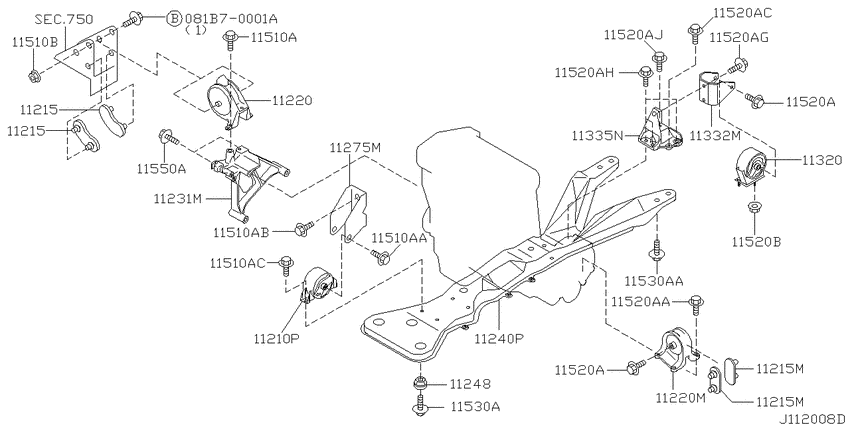

Engine & transmission mounting (2000-01-01 ~ 2005-12-01; 4WD.YD22DD) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2005
- Sales region
- Japan
- Engine
- YD22DD
- drive
- 4WD
- transmission
- AT
- grade
- VX/G
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B70001A
|
081B70001A
081B7-0001A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081B7-0001A |
— | ||
|
11210P
|
11210P
112702J200 Insulator Assy-Engine Mounting, Front9906--01 ~ 0512--01; 4WD.YD22DD |
112702J200 |
US $91.13 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9906--01 ~ 0512--01; 4WD.YD22DD |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting9906--01 ~ 0512--01; 4WD.YD22DD |
11215-50A15 |
US $20.92 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9906--01 ~ 0512--01; 4WD.YD22DD |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting9906--01 ~ 0512--01; 4WD.YD22DD |
11215-50A15 |
US $20.92 |
||
|
11215M
|
11215M
11215-50A15 Stopper-Engine Mounting9906--01 ~ 0512--01; 4WD.YD22DD |
11215-50A15 |
US $20.92 |
||
|
11215M
|
11215M
11215-50A15 Stopper-Engine Mounting9906--01 ~ 0512--01; 4WD.YD22DD |
11215-50A15 |
US $20.92 |
||
|
11220
|
11220
11210-WA510 Insulator-Engine Mounting, Front9906--01 ~ 0512--01; 4WD.YD22DD |
11210-WA510 |
US $240.48 |
||
|
11220
|
11220
11220-WA200 Insulator Assy-Engine Mounting, Front Lh9906--01 ~ 0512--01; 4WD.YD22DD |
11220-WA200 |
US $91.13 |
||
|
11220M
|
11220M
11220-WA200 Insulator Assy-Engine Mounting, Front Lh9906--01 ~ 0512--01; 4WD.YD22DD |
11220-WA200 |
US $91.13 |
||
|
11231M
|
11231M
11231-AD200 Bracket-Engine Mounting9906--01 ~ 0512--01; 4WD.YD22DD |
11231-AD200 |
US $90.58 |
||
|
11240P
|
11240P
11240-WA200 Member Assy-Front, Center9906--01 ~ 0512--01; 4WD.YD22DD |
11240-WA200 |
US $300.19 |
||
|
11248
|
11248
112480E002 PAD-ENGINE MOUNTING MEMBER9906--01 ~ 0512--01; 4WD.YD22DD |
112480E002 |
from US $5.29 |
||
|
11275M
|
11275M
11274-WA401 Bracket-Engine Mounting Block, Front9906--01 ~ 0512--01; 4WD.YD22DD |
11274-WA401 |
US $44.35 |
||
|
11320
|
11320
11320-WA510 Insulator-Engine Mounting, Rear9906--01 ~ 0001--01; 4WD.YD22DD |
11320-WA510 |
US $103.54 |
||
|
11320
|
11320
11320-WF400 Insulator-Engine Mounting, Rear0001--01 ~ 0512--01; 4WD.YD22DD |
11320-WF400 |
US $94.03 |
||
|
11332M
|
11332M
11332-WA200 Bracket-Engine Mounting, Rear9906--01 ~ 0512--01; 4WD.YD22DD |
11332-WA200 |
US $50.69 |
||
|
11335N
|
11335N
11335-5V100 Support-Engine Mounting, Rear Lh9906--01 ~ 0512--01; 4WD.YD22DD |
11335-5V100 |
US $127.15 |
||
|
11510A
|
11510A
01125-03271 BOLT9906--01 ~ 0512--01; 4WD.YD22DD |
01125-03271 |
US $3.46 |
||
|
11510A
|
11510A
11298-2J201 Bolt9906--01 ~ 0208--01; 4WD.YD22DD |
11298-2J201 |
US $3.46 |
||
|
11510A
|
11510A
112984M408 Bolt0208--01 ~ 0512--01; 4WD.YD22DD |
112984M408 |
US $3.46 |
||
|
11510A
|
11510A
0112503041 BOLT9906--01 ~ 0512--01; 4WD.YD22DD |
0112503041 |
US $3.46 |
||
|
11510A
|
11510A
11298-2J207 Bolt9909--01 ~ 0512--01; 4WD.YD22DD |
11298-2J207 |
US $3.46 |
||
|
11510AA
|
11510AA
11298-2J201 Bolt9906--01 ~ 0208--01; 4WD.YD22DD |
11298-2J201 |
US $3.46 |
||
|
11510AA
|
11510AA
112984M408 Bolt0208--01 ~ 0512--01; 4WD.YD22DD |
112984M408 |
US $3.46 |
||
|
11510AB
|
11510AB
0112503041 BOLT9906--01 ~ 0512--01; 4WD.YD22DD |
0112503041 |
US $3.46 |
||
|
11510AC
|
11510AC
11298-2J207 Bolt9909--01 ~ 0512--01; 4WD.YD22DD |
11298-2J207 |
US $3.46 |
||
|
11510B
|
11510B
0122500082 NUT9906--01 ~ 0512--01; 4WD.YD22DD |
0122500082 |
from US $0.61 |
||
|
11520A
|
11520A
11298-5V102 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
11298-5V102 |
US $3.46 |
||
|
11520A
|
11520A
01125-03281 BOLT9906--01 ~ 0210--01; 4WD.YD22DD |
01125-03281 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M411 Bolt0210--01 ~ 0512--01; 4WD.YD22DD |
11298-4M411 |
from US $1.76 |
||
|
11520A
|
11520A
01125-00273 BOLT9906--01 ~ 9911--01; 4WD.YD22DD |
01125-00273 |
US $3.46 |
||
|
11520A
|
11520A
11298-5V102 Bolt9911--01 ~ 0512--01; 4WD.YD22DD |
11298-5V102 |
US $3.46 |
||
|
11520A
|
11520A
547260W005 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
547260W005 |
US $3.06 |
||
|
11520A
|
11520A
547260W005 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
547260W005 |
US $3.06 |
||
|
11520A
|
11520A
11298-5V100 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
11298-5V100 |
US $3.46 |
||
|
11520A
|
11520A
11298-5V102 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
11298-5V102 |
US $3.46 |
||
|
11520A
|
11520A
01125-03281 BOLT9906--01 ~ 0210--01; 4WD.YD22DD |
01125-03281 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M411 Bolt0210--01 ~ 0512--01; 4WD.YD22DD |
11298-4M411 |
from US $1.76 |
||
|
11520A
|
11520A
01125-00273 BOLT9906--01 ~ 9911--01; 4WD.YD22DD |
01125-00273 |
US $3.46 |
||
|
11520A
|
11520A
11298-5V102 Bolt9911--01 ~ 0512--01; 4WD.YD22DD |
11298-5V102 |
US $3.46 |
||
|
11520A
|
11520A
547260W005 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
547260W005 |
US $3.06 |
||
|
11520A
|
11520A
547260W005 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
547260W005 |
US $3.06 |
||
|
11520A
|
11520A
11298-5V100 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
11298-5V100 |
US $3.46 |
||
|
11520AA
|
11520AA
01125-03281 BOLT9906--01 ~ 0210--01; 4WD.YD22DD |
01125-03281 |
US $3.46 |
||
|
11520AA
|
11520AA
11298-4M411 Bolt0210--01 ~ 0512--01; 4WD.YD22DD |
11298-4M411 |
from US $1.76 |
||
|
11520AC
|
11520AC
01125-00273 BOLT9906--01 ~ 9911--01; 4WD.YD22DD |
01125-00273 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-5V102 Bolt9911--01 ~ 0512--01; 4WD.YD22DD |
11298-5V102 |
US $3.46 |
||
|
11520AG
|
11520AG
547260W005 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
547260W005 |
US $3.06 |
||
|
11520AH
|
11520AH
547260W005 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
547260W005 |
US $3.06 |
||
|
11520AJ
|
11520AJ
11298-5V100 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
11298-5V100 |
US $3.46 |
||
|
11520B
|
11520B
0122500082 NUT9906--01 ~ 0512--01; 4WD.YD22DD |
0122500082 |
from US $0.61 |
||
|
11530A
|
11530A
1129840U01 Bolt9906--01 ~ 9909--01; 4WD.YD22DD |
1129840U01 |
from US $1.76 |
||
|
11530A
|
11530A
11298-WA001 Bolt9909--01 ~ 0512--01; 4WD.YD22DD |
11298-WA001 |
US $3.46 |
||
|
11530A
|
11530A
11298-5V101 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
11298-5V101 |
from US $1.74 |
||
|
11530AA
|
11530AA
11298-5V101 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
11298-5V101 |
from US $1.74 |
||
|
11550A
|
11550A
11298-AD200 Bolt9906--01 ~ 0512--01; 4WD.YD22DD |
11298-AD200 |
from US $2.02 |
||
|
