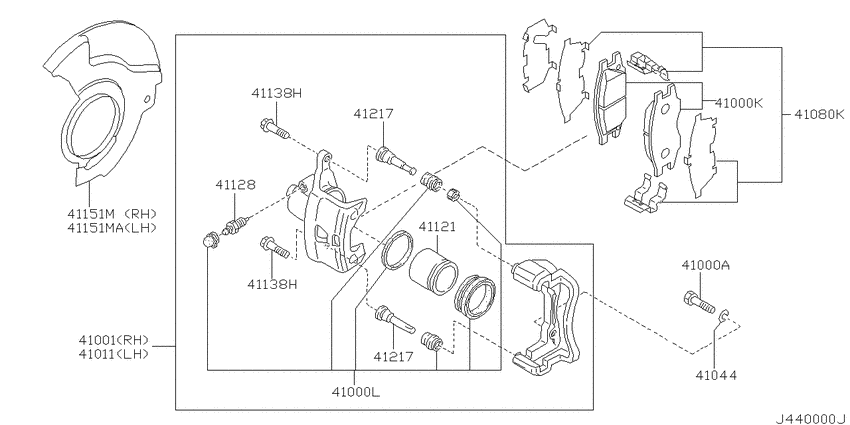

Front brake (1999-06-01 ~ 2005-12-01; 4WD.QG18DE +4WD.YD22DD) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2005
- Sales region
- Japan
- Engine
- YD22DD
- drive
- 4WD
- transmission
- AT
- grade
- VX/G
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41000A
|
41000A
41005-6P010 Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
41005-6P010 |
US $3.46 |
||
|
41000K
|
41000K
AY040-NS072 Pad Kit-Disc Brake9906--01 ~ 0008--01; 4WD.QG18DE +4WD.YD22DD |
AY040-NS072 |
US $142.56 |
||
|
41000K
|
41000K
AY040NS108 Pad Kit-Disc Brake0008--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
AY040NS108 |
US $142.56 |
||
|
41000L
|
41000L
AY600NS008 Seal Kit-Disc Brake9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
AY600NS008 |
US $41.76 |
||
|
41001
|
41001
41001-WA500 Caliper Assy-Front Rh, W/o Pads Or Shims9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
41001-WA500 |
US $385.15 |
||
|
41011
|
41011
41011-WA500 Caliper Assy-Front Lh, W/o Pads Or Shims9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
41011-WA500 |
US $385.15 |
||
|
41044
|
41044
41044-6P010 Washer9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
41044-6P010 |
US $3.46 |
||
|
41080K
|
41080K
410804M425 Hardware Kit-Front Disc Brake Pad9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
410804M425 |
from US $59.76 |
||
|
41121
|
41121
4112140F00 Piston-Cylinder9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
4112140F00 |
US $35.14 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41151WA000 Plate-Baffle9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
41151WA000 |
US $43.06 |
||
|
41151M
|
41151M
41161WA000 Plate-Baffle9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
41161WA000 |
US $43.06 |
||
|
41151MA
|
41151MA
41161WA000 Plate-Baffle9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
41161WA000 |
US $43.06 |
||
|
41217
|
41217
4113901A01 Pin9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
4113901A01 |
from US $7.63 |
||
|
41217
|
41217
4113901A01 Pin9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
4113901A01 |
from US $7.63 |
||
