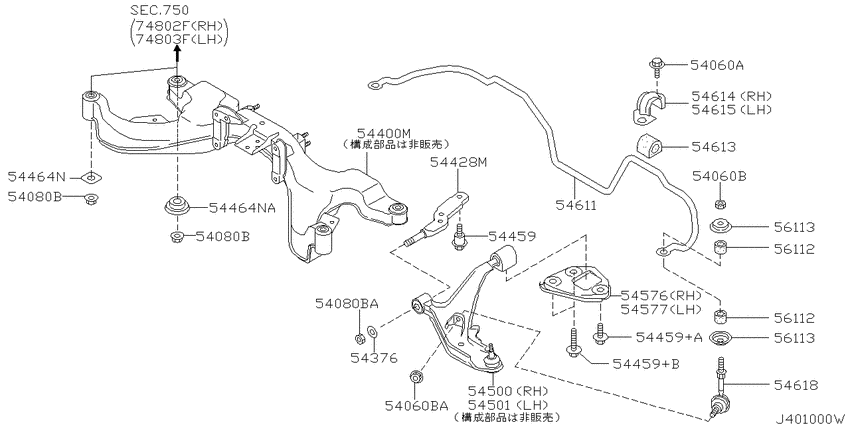

Front suspension (1999-06-01 ~ 2005-12-01; メンバー & リンク スタビライザー; 4WD.QG18DE +4WD.YD22DD) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2005
- Sales region
- Japan
- Engine
- YD22DD
- drive
- 4WD
- transmission
- AT
- grade
- VX/G
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54060A
|
54060A
54459-31U06 Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54459-31U06 |
US $2.45 |
||
|
54060B
|
54060B
0122300291 NUT9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
0122300291 |
from US $0.78 |
||
|
54060B
|
54060B
0122500163 NUT9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
0122500163 |
US $1.73 |
||
|
54060BA
|
54060BA
0122500163 NUT9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
0122500163 |
US $1.73 |
||
|
54080B
|
54080B
0122300191 NUT9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
0122300191 |
from US $1.15 |
||
|
54080B
|
54080B
0122300121 NUT9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
0122300121 |
US $4.18 |
||
|
54080B
|
54080B
0122300191 NUT9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
0122300191 |
from US $1.15 |
||
|
54080B
|
54080B
0122300121 NUT9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
0122300121 |
US $4.18 |
||
|
54080BA
|
54080BA
0122300121 NUT9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
0122300121 |
US $4.18 |
||
|
54376
|
54376
55134-31U00 Washer-Special9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
55134-31U00 |
US $2.45 |
||
| replacement | |||||
|
54376
|
54376
55134-31U0A
Washer-special
9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
55134-31U0A |
— | ||
|
54400M
|
54400M
54400-WA200 Member Compl-Front Suspension9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54400-WA200 |
US $753.31 |
||
|
54428M
|
54428M
54428-AD000 Pin-Link Bush9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54428-AD000 |
US $30.96 |
||
| replacement | |||||
|
54428M
|
54428M
54428AD00A PINLINK BUSH9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54428AD00A |
US $30.96 |
||
|
54459
|
54459
54459AD000 Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54459AD000 |
US $4.18 |
||
|
54459
|
54459
54459-31U03 Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54459-31U03 |
US $3.46 |
||
|
54459
|
54459
5445931U02 Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
5445931U02 |
US $4.18 |
||
|
54459
|
54459
5445931U12 Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
5445931U12 |
US $4.03 |
||
|
54459+A
|
54459+A
54459-31U03 Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54459-31U03 |
US $3.46 |
||
|
54459+B
|
54459+B
5445931U02 Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
5445931U02 |
US $4.18 |
||
|
54464N
|
54464N
54464-0E001 STOPPER-REBOUND FRONT SUSPENSION9906--01 ~ 0201--01; 4WD.QG18DE +4WD.YD22DD |
54464-0E001 |
US $8.21 |
||
|
54464N
|
54464N
544642Y000 Stopper-Rebound Front Suspension0201--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
544642Y000 |
from US $8.21 |
||
|
54464N
|
54464N
54464-31U01 Stopper-Rebound Front Suspension9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54464-31U01 |
from US $9.02 |
||
|
54464NA
|
54464NA
54464-31U01 Stopper-Rebound Front Suspension9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54464-31U01 |
from US $9.02 |
||
|
54500
|
54500
54500WA600 Link Compl-Transverse, Rh0006--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54500WA600 |
US $305.86 |
||
|
54500
|
54500
54500-WF100 Link Compl-Transverse, Rh9906--01 ~ 0006--01; 4WD.QG18DE +4WD.YD22DD |
54500-WF100 |
US $259.20 |
||
|
54501
|
54501
54501WA600 Link Compl-Transverse, Lh0006--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54501WA600 |
US $305.86 |
||
|
54501
|
54501
54501-WF100 Link Compl-Transverse, Lh9906--01 ~ 0006--01; 4WD.QG18DE +4WD.YD22DD |
54501-WF100 |
US $259.20 |
||
|
54576
|
54576
545765V000 Clamp9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
545765V000 |
US $44.21 |
||
|
54577
|
54577
54577-5V000 Clamp9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54577-5V000 |
US $44.21 |
||
|
54611
|
54611
54611-WA200 Stabilizer-Front9906--01 ~ 0207--01; 4WD.QG18DE +4WD.YD22DD |
54611-WA200 |
US $301.61 |
||
|
54611
|
54611
54611-WF810 Stabilizer-Front0207--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54611-WF810 |
US $433.30 |
||
|
54613
|
54613
546130P005 Bush-Stabilizer9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
546130P005 |
from US $4.96 |
||
|
54614
|
54614
54614-AD000 Clamp-Stabilizer9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54614-AD000 |
US $10.37 |
||
|
54615
|
54615
54615-AD000 Clamp-Stabilizer, Lh9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54615-AD000 |
US $10.37 |
||
|
54618
|
54618
54618-WF100 Rod Assy-Connecting, Stabilizer9906--01 ~ 0404--01; 4WD.QG18DE +4WD.YD22DD |
54618-WF100 |
US $68.40 |
||
|
54618
|
54618
54618WF101 Rod Assy-Connecting, Stabilizer0404--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
54618WF101 |
from US $26.99 |
||
|
56112
|
56112
56112V0100 Stabilizer cushion9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
56112V0100 |
from US $1.67 |
||
|
56112
|
56112
56112V0100 Stabilizer cushion9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
56112V0100 |
from US $1.67 |
||
|
56113
|
56113
56113-60U05
Washer
9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
56113-60U05 |
— | ||
| replacement | |||||
|
56113
|
56113
5611360U0A Washer9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
5611360U0A |
from US $1.39 |
||
|
56113
|
56113
56113-60U05
Washer
9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
56113-60U05 |
— | ||
| replacement | |||||
|
56113
|
56113
5611360U0A Washer9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
5611360U0A |
from US $1.39 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
