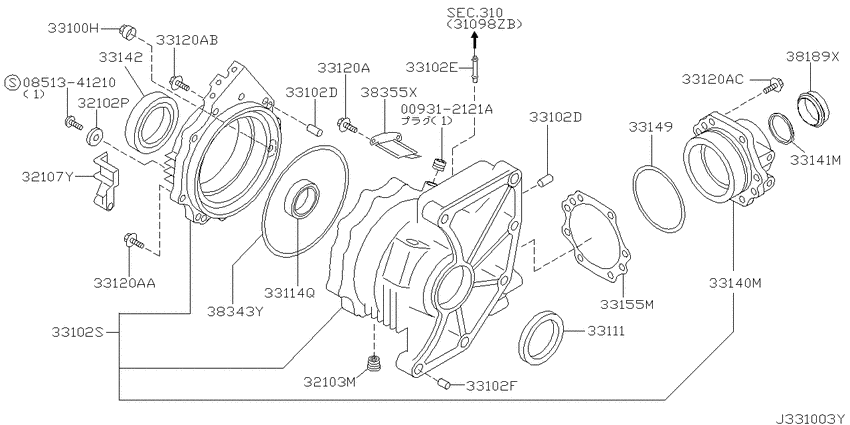

Transfer case (2001-12-01 ~ 2002-08-01; 4WD.QG18DE +4WD.YD22DD) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2005
- Sales region
- Japan
- Engine
- YD22DD
- drive
- 4WD
- transmission
- AT
- grade
- VX/G
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.76 |
||
|
0851341210
|
0851341210
08513-41210
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-41210 |
— | ||
|
32102P
|
32102P
32105-U8400 Magnet-Transfer9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD |
32105-U8400 |
US $2.45 |
||
|
32103M
|
32103M
01642-00111
PLUG-FILLER
9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD |
01642-00111 |
— | ||
|
32107Y
|
32107Y
32107-4N200 Gutter-Oil9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
32107-4N200 |
US $9.36 |
||
|
33100H
|
33100H
31305-5V200 Plug-Filler9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
31305-5V200 |
US $2.45 |
||
|
33102D
|
33102D
32105-C6900 Pin9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
32105-C6900 |
US $4.18 |
||
|
33102D
|
33102D
32105-C6900 Pin9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
32105-C6900 |
US $4.18 |
||
|
33102E
|
33102E
38322-AD300 Breather9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
38322-AD300 |
US $10.80 |
||
|
33102F
|
33102F
1102221000 Dowel-Block To Transmission9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
1102221000 |
from US $1.83 |
||
|
33102S
|
33102S
33101-4N270 Case Set-Transfer9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD |
33101-4N270 |
US $590.47 |
||
|
33102S
|
33102S
33101-4N273 Case Set-Transfer0208--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
33101-4N273 |
US $590.47 |
||
|
33111
|
33111
33111AD300 Seal-Oil, Ring Gear9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
33111AD300 |
US $7.20 |
||
|
33114Q
|
33114Q
33114-AD300 Seal-Oil, Drive Pinion9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
33114-AD300 |
from US $7.54 |
||
|
33120A
|
33120A
31377-80X09 Bolt9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
31377-80X09 |
US $1.73 |
||
|
33120A
|
33120A
31377-4N261 Bolt0112--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
31377-4N261 |
US $3.46 |
||
|
33120A
|
33120A
31377-4N272 Bolt0112--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
31377-4N272 |
US $3.46 |
||
|
33120A
|
33120A
31377-4N270 Bolt0112--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
31377-4N270 |
US $3.46 |
||
| replacement | |||||
|
33120A
|
33120A
31377-4N27A Bolt0112--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
31377-4N27A |
US $3.46 |
||
|
33120AA
|
33120AA
31377-4N261 Bolt0112--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
31377-4N261 |
US $3.46 |
||
|
33120AB
|
33120AB
31377-4N272 Bolt0112--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
31377-4N272 |
US $3.46 |
||
|
33120AC
|
33120AC
31377-4N270 Bolt0112--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
31377-4N270 |
US $3.46 |
||
| replacement | |||||
|
33120AC
|
33120AC
31377-4N27A Bolt0112--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
31377-4N27A |
US $3.46 |
||
|
33140M
|
33140M
33140-4N210 Sleeve-Pinion Shaft9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
33140-4N210 |
US $138.53 |
||
|
33141M
|
33141M
33141-4N200
Cover-Rear
9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
33141-4N200 |
— | ||
| replacement | |||||
|
33141M
|
33141M
331414N20A Cover-Rear9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
331414N20A |
from US $7.76 |
||
|
33142
|
33142
331424N200 Seal-Oil9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
331424N200 |
from US $10.73 |
||
|
33149
|
33149
33149-5V200 Seal-O Ring, Pinion Shaft Sleeve9906--01 ~ 0112--01; 4WD.QG18DE +4WD.YD22DD |
33149-5V200 |
US $7.48 |
||
|
33149
|
33149
33149-5V210 Seal-O Ring, Pinion Shaft Sleeve0112--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
33149-5V210 |
from US $6.79 |
||
|
33155M
|
33155M
33155-5V200 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V200 |
US $8.73 |
||
|
33155M
|
33155M
33155-5V201 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=0.83 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V201 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V202 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=0.86 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V202 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V203 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=O.89 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V203 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V204 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=0.92 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V204 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V205 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V205 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V206 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=0.98 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V206 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V207 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=1.01 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V207 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V208 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=1.04 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V208 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V209 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=1.07 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V209 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V210 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=1.10 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V210 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V211 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=1.13 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V211 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V212 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=1.16 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V212 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V213 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0208--01; 4WD.QG18DE +4WD.YD22DD; T=1.19 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V213 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V214 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0001--01; 4WD.QG18DE +4WD.YD22DD; T=1.22 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V214 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V215 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0001--01; 4WD.QG18DE +4WD.YD22DD; T=1.25 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V215 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V216 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0001--01; 4WD.QG18DE +4WD.YD22DD; T=1.28 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V216 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V217 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0001--01; 4WD.QG18DE +4WD.YD22DD; T=1.31 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V217 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V218 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0001--01; 4WD.QG18DE +4WD.YD22DD; T=1.34 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V218 |
US $9.07 |
||
|
33155M
|
33155M
33155-5V219 Shim-Adjust, Pinion Shaft Sleeve9906--01 ~ 0001--01; 4WD.QG18DE +4WD.YD22DD; T=1.37 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33155-5V219 |
US $9.07 |
||
|
38189X
|
38189X
381894N200
Seal-Oil, Drive Pinion
9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
381894N200 |
— | ||
| replacement | |||||
|
38189X
|
38189X
38189-4N20A Seal-Oil, Drive Pinion9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
38189-4N20A |
from US $10.54 |
||
|
38343Y
|
38343Y
38343-AD300 Seal-O Ring9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
38343-AD300 |
from US $5.68 |
||
|
38355X
|
38355X
38355-4N200 Defense-Gear Oil9906--01 ~ 0512--01; 4WD.QG18DE +4WD.YD22DD |
38355-4N200 |
from US $10.22 |
||
