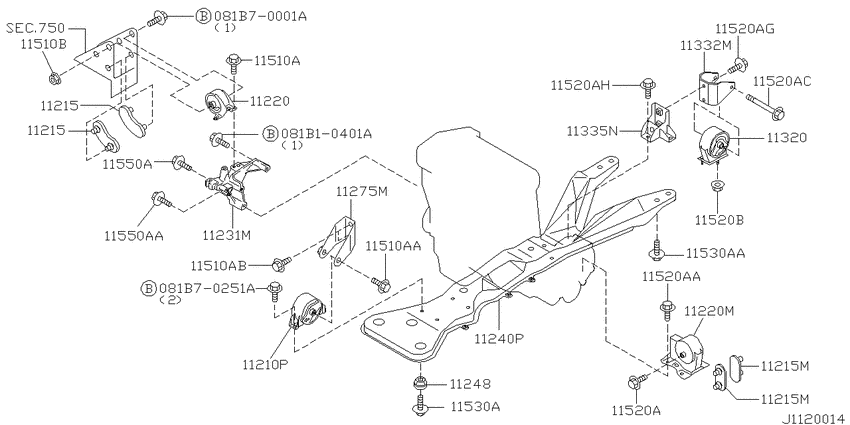

Engine & transmission mounting (1999-06-01 ~ 1999-09-01; 4WD.QG18DE) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2005
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 4WD
- transmission
- AT
- grade
- LX/G
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B10401A
|
081B10401A
081B1-0401A
BOLTFLANGE
|
081B1-0401A |
— | ||
|
081B70001A
|
081B70001A
081B7-0001A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081B7-0001A |
— | ||
|
081B70251A
|
081B70251A
081B70251A BOLTFLANGE |
081B70251A |
US $0.43 |
||
|
11210P
|
11210P
112705V000 Insulator Assy-Engine Mounting, Front9906--01 ~ ; 4WD.QG18DE |
112705V000 |
US $103.54 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9906--01 ~ ; 4WD.QG18DE |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting9906--01 ~ ; 4WD.QG18DE |
11215-50A15 |
US $20.92 |
||
|
11215
|
11215
1121554E00 STOPPER-ENGINE MOUNTING9906--01 ~ ; 4WD.QG18DE |
1121554E00 |
US $17.57 |
||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting9906--01 ~ ; 4WD.QG18DE |
11215-50A15 |
US $20.92 |
||
|
11215M
|
11215M
11215-50A15 Stopper-Engine Mounting9906--01 ~ ; 4WD.QG18DE |
11215-50A15 |
US $20.92 |
||
|
11215M
|
11215M
11215-50A15 Stopper-Engine Mounting9906--01 ~ ; 4WD.QG18DE |
11215-50A15 |
US $20.92 |
||
|
11220
|
11220
11210WA501 Insulator-Engine Mounting, Front9906--01 ~ ; 4WD.QG18DE |
11210WA501 |
US $240.48 |
||
|
11220
|
11220
11220WA500 Insulator Assy-Engine Mounting, Front Lh9906--01 ~ ; 4WD.QG18DE |
11220WA500 |
US $103.54 |
||
|
11220M
|
11220M
11220WA500 Insulator Assy-Engine Mounting, Front Lh9906--01 ~ ; 4WD.QG18DE |
11220WA500 |
US $103.54 |
||
|
11231M
|
11231M
11231-WA000 Bracket-Engine Mounting9906--01 ~ ; 4WD.QG18DE |
11231-WA000 |
US $99.65 |
||
|
11240P
|
11240P
11240WA500 Member Assy-Engine Mounting9906--01 ~ ; 4WD.QG18DE |
11240WA500 |
US $331.34 |
||
|
11248
|
11248
112480E002 PAD-ENGINE MOUNTING MEMBER9906--01 ~ ; 4WD.QG18DE |
112480E002 |
from US $5.09 |
||
|
11275M
|
11275M
11274WA500 Bracket-Engine Mounting Block, Front9906--01 ~ ; 4WD.QG18DE |
11274WA500 |
US $44.35 |
||
|
11320
|
11320
11320WA500 Insulator-Engine Mounting, Rear9906--01 ~ ; 4WD.QG18DE |
11320WA500 |
US $103.54 |
||
|
11332M
|
11332M
11332-WA200 Bracket-Engine Mounting, Rear9906--01 ~ ; 4WD.QG18DE |
11332-WA200 |
US $50.69 |
||
|
11335N
|
11335N
11335-WA501 Support-Engine Mounting, Rear Lh9906--01 ~ ; 4WD.QG18DE |
11335-WA501 |
US $180 |
||
|
11510A
|
11510A
0112503021 BOLT9906--01 ~ ; 4WD.QG18DE |
0112503021 |
US $3.46 |
||
|
11510A
|
11510A
11298-2J201 Bolt9906--01 ~ 0208--01; 4WD.QG18DE |
11298-2J201 |
US $3.46 |
||
|
11510A
|
11510A
112984M408 Bolt0208--01 ~ ; 4WD.QG18DE |
112984M408 |
US $3.46 |
||
|
11510A
|
11510A
0112503041 BOLT9906--01 ~ ; 4WD.QG18DE |
0112503041 |
US $3.46 |
||
|
11510A
|
11510A
11298-2J207 Bolt9909--01 ~ ; 4WD.QG18DE |
11298-2J207 |
US $3.46 |
||
|
11510AA
|
11510AA
11298-2J201 Bolt9906--01 ~ 0208--01; 4WD.QG18DE |
11298-2J201 |
US $3.46 |
||
|
11510AA
|
11510AA
112984M408 Bolt0208--01 ~ ; 4WD.QG18DE |
112984M408 |
US $3.46 |
||
|
11510AB
|
11510AB
0112503041 BOLT9906--01 ~ ; 4WD.QG18DE |
0112503041 |
US $3.46 |
||
|
11510B
|
11510B
0122500082 NUT9906--01 ~ ; 4WD.QG18DE |
0122500082 |
from US $0.61 |
||
|
11520A
|
11520A
11298-5V102 Bolt9906--01 ~ ; 4WD.QG18DE |
11298-5V102 |
US $3.46 |
||
|
11520A
|
11520A
0112503021 BOLT9906--01 ~ ; 4WD.QG18DE |
0112503021 |
US $3.46 |
||
|
11520A
|
11520A
01125-00273 BOLT9906--01 ~ 9911--01; 4WD.QG18DE |
01125-00273 |
US $3.46 |
||
|
11520A
|
11520A
11298-5V102 Bolt9911--01 ~ ; 4WD.QG18DE |
11298-5V102 |
US $3.46 |
||
|
11520A
|
11520A
11298-5V101 Bolt9906--01 ~ ; 4WD.QG18DE |
11298-5V101 |
from US $1.74 |
||
|
11520A
|
11520A
547260W005 Bolt9906--01 ~ ; 4WD.QG18DE |
547260W005 |
US $3.06 |
||
|
11520AA
|
11520AA
0112503021 BOLT9906--01 ~ ; 4WD.QG18DE |
0112503021 |
US $3.46 |
||
|
11520AC
|
11520AC
01125-00273 BOLT9906--01 ~ 9911--01; 4WD.QG18DE |
01125-00273 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-5V102 Bolt9911--01 ~ ; 4WD.QG18DE |
11298-5V102 |
US $3.46 |
||
|
11520AG
|
11520AG
11298-5V101 Bolt9906--01 ~ ; 4WD.QG18DE |
11298-5V101 |
from US $1.74 |
||
|
11520AH
|
11520AH
547260W005 Bolt9906--01 ~ ; 4WD.QG18DE |
547260W005 |
US $3.06 |
||
|
11520B
|
11520B
0122500082 NUT9906--01 ~ ; 4WD.QG18DE |
0122500082 |
from US $0.61 |
||
|
11530A
|
11530A
1129840U01 Bolt9906--01 ~ 9909--01; 4WD.QG18DE |
1129840U01 |
from US $1.72 |
||
|
11530A
|
11530A
11298-WA001 Bolt9909--01 ~ ; 4WD.QG18DE |
11298-WA001 |
US $3.46 |
||
|
11530A
|
11530A
11298-5V101 Bolt9906--01 ~ ; 4WD.QG18DE |
11298-5V101 |
from US $1.74 |
||
|
11530AA
|
11530AA
11298-5V101 Bolt9906--01 ~ ; 4WD.QG18DE |
11298-5V101 |
from US $1.74 |
||
|
11550A
|
11550A
01125-01891 BOLT9906--01 ~ ; 4WD.QG18DE |
01125-01891 |
US $4.18 |
||
|
11550A
|
11550A
01125-03211 BOLT9906--01 ~ ; 4WD.QG18DE |
01125-03211 |
US $3.31 |
||
|
11550AA
|
11550AA
01125-03211 BOLT9906--01 ~ ; 4WD.QG18DE |
01125-03211 |
US $3.31 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
