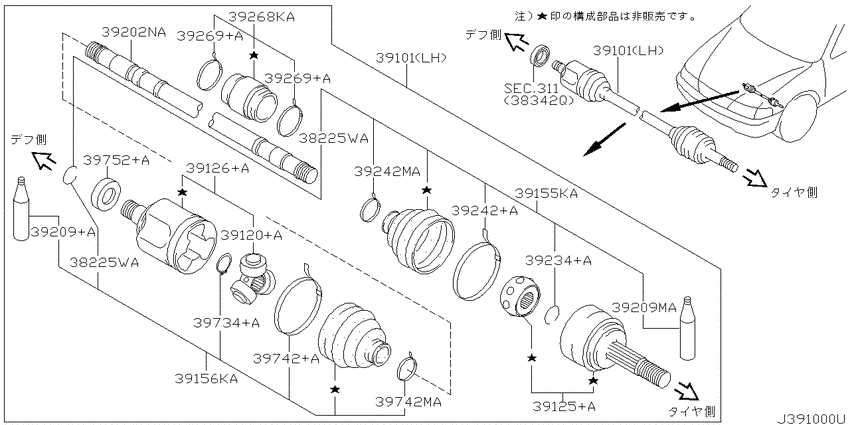

Front drive shaft (ff) (1999-06-01 ~ ; 左側; 2WD.QG18DE) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2005
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT
- grade
- LX/G
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
38225WA
|
38225WA
3822565A05 Clip-Drive Shaft9906--01 ~ ; 2WD.QG18DE |
3822565A05 |
from US $0.63 |
||
|
38225WA
|
38225WA
3822565A05 Clip-Drive Shaft9906--01 ~ ; 2WD.QG18DE |
3822565A05 |
from US $0.63 |
||
|
39101
|
39101
39101-WA012 Shaft Assy-Front Drive, Lh9906--01 ~ 9908--01; 2WD.QG18DE; ｺﾞﾑ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-WA012 |
US $817.03 |
||
|
39101
|
39101
39101-WA072 Shaft Assy-Front Drive, Lh9908--01 ~ ; 2WD.QG18DE; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-WA072 |
US $1,179.53 |
||
|
39101
|
39101
39101-WA012 Shaft Assy-Front Drive, Lh9906--01 ~ 9908--01; 2WD.QG18DE; ｺﾞﾑ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-WA012 |
US $817.03 |
||
|
39101
|
39101
39101-WA072 Shaft Assy-Front Drive, Lh9908--01 ~ ; 2WD.QG18DE; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-WA072 |
US $1,179.53 |
||
|
39120+A
|
39120+A
39720-61E01
SPIDER ASSY-SLIDE JOINT
0208--01 ~ ; 2WD.QG18DE; ﾛｰﾗｰ D=39.14 |
39720-61E01 |
— | ||
|
39120+A
|
39120+A
39720-61E02 SPIDER ASSY-SLIDE JOINT9906--01 ~ 0208--01; 2WD.QG18DE; ﾛｰﾗｰ D=39.14 |
39720-61E02 |
US $91.73 |
||
|
39120+A
|
39120+A
3972061E03 SPIDER ASSY-SLIDE JOINT9906--01 ~ 0208--01; 2WD.QG18DE; ﾛｰﾗｰ D=39.20 |
3972061E03 |
US $91.73 |
||
|
39120+A
|
39120+A
39720-61E04 SPIDER ASSY-SLIDE JOINT9906--01 ~ 0208--01; 2WD.QG18DE; Rｰﾗｰ D=39.27 |
39720-61E04 |
US $91.73 |
||
|
39120+A
|
39120+A
39720-61E05 SPIDER ASSY-SLIDE JOINT0208--01 ~ ; 2WD.QG18DE; ﾛｰﾗｰ D=39.41MM |
39720-61E05 |
US $84.10 |
||
|
39120+A
|
39120+A
39720-61E06
SPIDER ASSY-SLIDE JOINT
0208--01 ~ ; 2WD.QG18DE; ﾏｰｸ 06 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39720-61E06 |
— | ||
|
39120+A
|
39120+A
39720-61E07 SPIDER ASSY-SLIDE JOINT0208--01 ~ ; 2WD.QG18DE; ﾏｰｸ 07 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39720-61E07 |
US $76.46 |
||
|
39125+A
|
39125+A
39211-5V410 Joint Assy-Outer9906--01 ~ 9908--01; 2WD.QG18DE |
39211-5V410 |
US $505.51 |
||
|
39125+A
|
39125+A
39211-5V471 Joint Assy-Outer9908--01 ~ ; 2WD.QG18DE |
39211-5V471 |
US $560.74 |
||
|
39126+A
|
39126+A
39711-64J01 Joint Assy-Inner9906--01 ~ 0212--01; 2WD.QG18DE |
39711-64J01 |
US $332.76 |
||
| replacement | |||||
|
39126+A
|
39126+A
39711-64J03 Joint Assy-Inner9906--01 ~ 0212--01; 2WD.QG18DE |
39711-64J03 |
US $285.12 |
||
|
39126+A
|
39126+A
39711-64J03 Joint Assy-Inner0212--01 ~ ; 2WD.QG18DE |
39711-64J03 |
US $285.12 |
||
|
39155KA
|
39155KA
392410M625
Repair Kit-Dust Boot, Outer
9906--01 ~ 9908--01; 2WD.QG18DE |
392410M625 |
— | ||
| replacement | |||||
|
39155KA
|
39155KA
C9BDA-0M62H C9BDA0M62H9906--01 ~ 9908--01; 2WD.QG18DE |
C9BDA-0M62H |
US $91.35 |
||
|
39155KA
|
39155KA
392418V125 Repair Kit-Dust Boot, Outer9908--01 ~ ; 2WD.QG18DE |
392418V125 |
from US $55.17 |
||
|
39156KA
|
39156KA
3974101E89 REPAIR KIT-DUST B00T,INNER9906--01 ~ 0512--01; 2WD.QG18DE |
3974101E89 |
US $67.82 |
||
|
39156KA
|
39156KA
39741-01E92 REPAIR KIT-DUST B00T,INNER0512--01 ~ ; 2WD.QG18DE |
39741-01E92 |
US $74.59 |
||
|
39202NA
|
39202NA
39205-0E702 Shaft-Front Drive, Lh9906--01 ~ 9908--01; 2WD.QG18DE |
39205-0E702 |
US $198.72 |
||
|
39202NA
|
39202NA
39205-0E772 Shaft-Front Drive, Lh0512--01 ~ ; 2WD.QG18DE |
39205-0E772 |
US $282.24 |
||
|
39202NA
|
39202NA
39205-0E782 Shaft-Front Drive, Lh9908--01 ~ 0208--01; 2WD.QG18DE |
39205-0E782 |
US $256.32 |
||
|
39209+A
|
39209+A
39709-55E25 GREASE-INNER9906--01 ~ 0001--01; 2WD.QG18DE; ﾃﾞﾌ ｻｲﾄﾞ |
39709-55E25 |
US $30.96 |
||
| replacement | |||||
|
39209+A
|
39209+A
C97092U618 Grease-Inner9906--01 ~ 0001--01; 2WD.QG18DE; ﾃﾞﾌ ｻｲﾄﾞ |
C97092U618 |
US $23.33 |
||
|
39209+A
|
39209+A
39709-55E26 GREASE0001--01 ~ 0208--01; 2WD.QG18DE; ﾃﾞﾌ ｻｲﾄﾞ |
39709-55E26 |
US $33.70 |
||
| replacement | |||||
|
39209+A
|
39209+A
C9709-2U626 Grease-Inner0001--01 ~ 0208--01; 2WD.QG18DE; ﾃﾞﾌ ｻｲﾄﾞ |
C9709-2U626 |
US $36.72 |
||
|
39209+A
|
39209+A
C97092U620 Grease-Inner0208--01 ~ 0403--01; 2WD.QG18DE |
C97092U620 |
US $23.33 |
||
|
39209+A
|
39209+A
C970977E18 Grease-Inner0403--01 ~ ; 2WD.QG18DE |
C970977E18 |
US $20.88 |
||
|
39209MA
|
39209MA
39209-01A26
Grease-Outer
9906--01 ~ 9908--01; 2WD.QG18DE; ﾀｲﾔ ｻｲﾄﾞ |
39209-01A26 |
— | ||
| replacement | |||||
|
39209MA
|
39209MA
C9BDA-0M62H C9BDA0M62H9906--01 ~ 9908--01; 2WD.QG18DE; ﾀｲﾔ ｻｲﾄﾞ |
C9BDA-0M62H |
US $91.35 |
||
|
39209MA
|
39209MA
C92092U620 Grease-Outer9908--01 ~ 0208--01; 2WD.QG18DE; ﾀｲﾔ ｻｲﾄﾞ |
C92092U620 |
US $23.33 |
||
|
39234+A
|
39234+A
3923401E00 RING-SNAP,BEARING RACE9906--01 ~ ; 2WD.QG18DE |
3923401E00 |
from US $1.22 |
||
|
39242+A
|
39242+A
3924201E00 BAND-BOOT,DRIVE SHAFT INNER9906--01 ~ 9908--01; 2WD.QG18DE |
3924201E00 |
US $4.25 |
||
|
39242+A
|
39242+A
39242-8V000 Band-Boot, Drive Shaft Outer9908--01 ~ ; 2WD.QG18DE |
39242-8V000 |
US $4.46 |
||
|
39242MA
|
39242MA
39242-01E12 BAND-RUBBER BOOT,SHAFT9906--01 ~ 9908--01; 2WD.QG18DE |
39242-01E12 |
US $4.61 |
||
|
39242MA
|
39242MA
39242-8V010 Band-Boot, Drive Shaft9908--01 ~ 0208--01; 2WD.QG18DE |
39242-8V010 |
US $4.46 |
||
|
39268KA
|
39268KA
39268-73J85 Damper Kit-Dynamic, Front Drive Shaft9906--01 ~ ; 2WD.QG18DE |
39268-73J85 |
US $91.73 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper9906--01 ~ 0512--01; 2WD.QG18DE |
3926911A10 |
US $9.50 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper9906--01 ~ 0512--01; 2WD.QG18DE |
3926911A10 |
US $9.50 |
||
|
39734+A
|
39734+A
0154100011 RING-SNAP9906--01 ~ ; 2WD.QG18DE |
0154100011 |
US $1.73 |
||
|
39742+A
|
39742+A
39742-01E00 BAND-RUBBER BOOT,SHAFT9906--01 ~ ; 2WD.QG18DE |
39742-01E00 |
US $8.93 |
||
|
39742MA
|
39742MA
39242-01E12 BAND-RUBBER BOOT,SHAFT9906--01 ~ ; 2WD.QG18DE |
39242-01E12 |
US $4.61 |
||
|
39752+A
|
39752+A
39752-77A10 Shield-Dust9906--01 ~ 0612--01; 2WD.QG18DE |
39752-77A10 |
US $4.03 |
||
|
39752+A
|
39752+A
3975277A1A Shield-Dust0612--01 ~ ; 2WD.QG18DE |
3975277A1A |
from US $3.90 |
||
