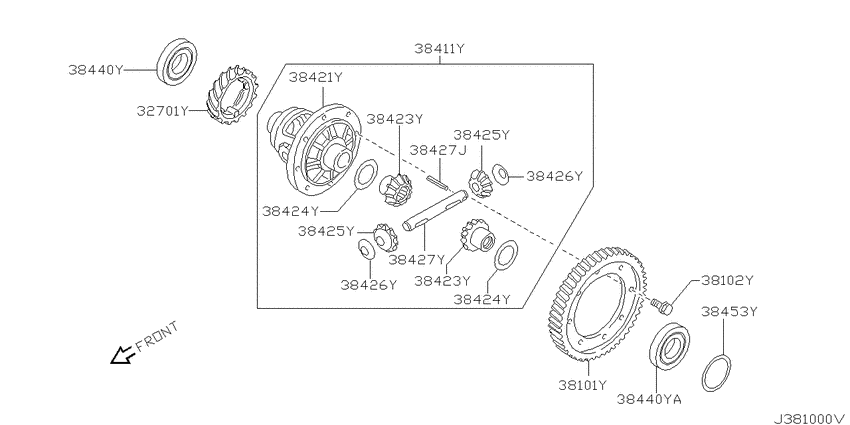

Front final drive (1999-06-01 ~ 2002-08-01; 2WD.QG18DE) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2005
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT
- grade
- LX/G
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-31X00 Gear-Drive, Speedometer9906--01 ~ 0208--01; 2WD.QG18DE |
32701-31X00 |
from US $11.95 |
||
|
38101Y
|
38101Y
38101-31X03 Gear-Final Drive9906--01 ~ ; 2WD.QG18DE |
38101-31X03 |
US $138.96 |
||
|
38102Y
|
38102Y
38102-31X00 Bolt-Drive Gear9906--01 ~ 0208--01; 2WD.QG18DE |
38102-31X00 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-31X01 Bolt-Drive Gear0208--01 ~ 0512--01; 2WD.YD22DD.AT +QG18DE |
38102-31X01 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-31X73 Case Compl-Differential9906--01 ~ 0202--01; 2WD.QG18DE |
38411-31X73 |
US $938.81 |
||
|
38411Y
|
38411Y
38411-8E000 CASE COMPL-DIFFERENTIAL0202--01 ~ 0208--01; 2WD.QG18DE |
38411-8E000 |
US $774.55 |
||
|
38421Y
|
38421Y
38421-31X70 Case-Differential9906--01 ~ 0202--01; 2WD.QG18DE |
38421-31X70 |
US $448.87 |
||
|
38421Y
|
38421Y
38421-8E000 CASE-DIFFERENTIAL0202--01 ~ 0208--01; 2WD.QG18DE |
38421-8E000 |
US $372.41 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9906--01 ~ 0202--01; 2WD.QG18DE |
38423-31X02 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-8E000 GEAR-SIDE0202--01 ~ 0208--01; 2WD.QG18DE |
38423-8E000 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9906--01 ~ 0202--01; 2WD.QG18DE |
38423-31X02 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-8E000 GEAR-SIDE0202--01 ~ 0208--01; 2WD.QG18DE |
38423-8E000 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9906--01 ~ 0208--01; 2WD.QG18DE; T=0.75-0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9906--01 ~ 0208--01; 2WD.QG18DE; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9906--01 ~ 0208--01; 2WD.QG18DE; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9906--01 ~ 0208--01; 2WD.QG18DE; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9906--01 ~ 0208--01; 2WD.QG18DE; T=0.95-1.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9906--01 ~ 0208--01; 2WD.QG18DE; T=0.75-0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9906--01 ~ 0208--01; 2WD.QG18DE; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9906--01 ~ 0208--01; 2WD.QG18DE; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9906--01 ~ 0208--01; 2WD.QG18DE; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9906--01 ~ 0208--01; 2WD.QG18DE; T=0.95-1.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9906--01 ~ 0202--01; 2WD.QG18DE |
38425-31X07 |
US $64.22 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate0202--01 ~ 0208--01; 2WD.QG18DE |
38425-U3000 |
US $38.59 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9906--01 ~ 0202--01; 2WD.QG18DE |
38425-31X07 |
US $64.22 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate0202--01 ~ 0208--01; 2WD.QG18DE |
38425-U3000 |
US $38.59 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9906--01 ~ 0202--01; 2WD.QG18DE |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate0202--01 ~ 0208--01; 2WD.QG18DE |
38426-31X10 |
US $2.45 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9906--01 ~ 0202--01; 2WD.QG18DE |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate0202--01 ~ 0208--01; 2WD.QG18DE |
38426-31X10 |
US $2.45 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9906--01 ~ 0208--01; 2WD.QG18DE |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-31X04 Shaft-Pinion Mate9906--01 ~ 0202--01; 2WD.QG18DE |
38427-31X04 |
US $63.22 |
||
|
38427Y
|
38427Y
38427-31X12 Shaft-Pinion Mate0202--01 ~ 0208--01; 2WD.QG18DE |
38427-31X12 |
US $63.22 |
||
|
38440Y
|
38440Y
31408-31X09 Bearing-Differential Side9906--01 ~ 0208--01; 2WD.QG18DE |
31408-31X09 |
US $46.80 |
||
| replacement | |||||
|
38440Y
|
38440Y
31408-31X22 Bearing-Differential Side9906--01 ~ 0208--01; 2WD.QG18DE |
31408-31X22 |
US $55.58 |
||
|
38440Y
|
38440Y
31408-31X18
Bearing-Differential Side
0208--01 ~ ; 2WD.QG18DE; ﾐｷﾞ ﾖｳ |
31408-31X18 |
— | ||
| replacement | |||||
|
38440Y
|
38440Y
31408-31X0A Bearing-Differential Side0208--01 ~ ; 2WD.QG18DE; ﾐｷﾞ ﾖｳ |
31408-31X0A |
US $34.26 |
||
|
38440Y
|
38440Y
31408-31X07 Bearing-Differential Side9906--01 ~ 0006--01; 2WD.QG18DE |
31408-31X07 |
US $46.80 |
||
| replacement | |||||
|
38440Y
|
38440Y
31408-31X23 Bearing-Differential Side9906--01 ~ 0006--01; 2WD.QG18DE |
31408-31X23 |
US $42.48 |
||
|
38440Y
|
38440Y
31408-31X0B Bearing-Differential Side0603--01 ~ ; 2WD.QG18DE; ﾋﾀﾞﾘ ﾖｳ |
31408-31X0B |
US $74.46 |
||
|
38440Y
|
38440Y
31408-31X15 Bearing-Differential Side0006--01 ~ 0208--01; 2WD.QG18DE |
31408-31X15 |
US $55.58 |
||
| replacement | |||||
|
38440Y
|
38440Y
31408-31X23 Bearing-Differential Side0006--01 ~ 0208--01; 2WD.QG18DE |
31408-31X23 |
US $42.48 |
||
|
38440Y
|
38440Y
31408-31X19
Bearing-Differential Side
0208--01 ~ 0603--01; 2WD.QG18DE; ﾋﾀﾞﾘ ﾖｳ |
31408-31X19 |
— | ||
| replacement | |||||
|
38440Y
|
38440Y
31408-31X0B Bearing-Differential Side0208--01 ~ 0603--01; 2WD.QG18DE; ﾋﾀﾞﾘ ﾖｳ |
31408-31X0B |
US $74.46 |
||
|
38440YA
|
38440YA
31408-31X07 Bearing-Differential Side9906--01 ~ 0006--01; 2WD.QG18DE |
31408-31X07 |
US $46.80 |
||
| replacement | |||||
|
38440YA
|
38440YA
31408-31X23 Bearing-Differential Side9906--01 ~ 0006--01; 2WD.QG18DE |
31408-31X23 |
US $42.48 |
||
|
38440YA
|
38440YA
31408-31X0B Bearing-Differential Side0603--01 ~ ; 2WD.QG18DE; ﾋﾀﾞﾘ ﾖｳ |
31408-31X0B |
US $74.46 |
||
|
38440YA
|
38440YA
31408-31X15 Bearing-Differential Side0006--01 ~ 0208--01; 2WD.QG18DE |
31408-31X15 |
US $55.58 |
||
| replacement | |||||
|
38440YA
|
38440YA
31408-31X23 Bearing-Differential Side0006--01 ~ 0208--01; 2WD.QG18DE |
31408-31X23 |
US $42.48 |
||
|
38440YA
|
38440YA
31408-31X19
Bearing-Differential Side
0208--01 ~ 0603--01; 2WD.QG18DE; ﾋﾀﾞﾘ ﾖｳ |
31408-31X19 |
— | ||
| replacement | |||||
|
38440YA
|
38440YA
31408-31X0B Bearing-Differential Side0208--01 ~ 0603--01; 2WD.QG18DE; ﾋﾀﾞﾘ ﾖｳ |
31408-31X0B |
US $74.46 |
||
|
38453Y
|
38453Y
31499-21X07 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.40,ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X07 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X08 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.44,ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X08 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X09 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.48,ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X09 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X10 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.52 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X10 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X11 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.56 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X11 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X12 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X12 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X13 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.64 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X13 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X14 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.68 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X14 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X15 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.72 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X15 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X16 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.76 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X16 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X17 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X17 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X18 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.84 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X18 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X19 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.88 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X19 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X20 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=0.92 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X20 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X21 Shim-Adjust, Output Shaft9906--01 ~ 0208--01; 2WD.QG18DE; T=1.44 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31499-21X21 |
US $8.06 |
||
