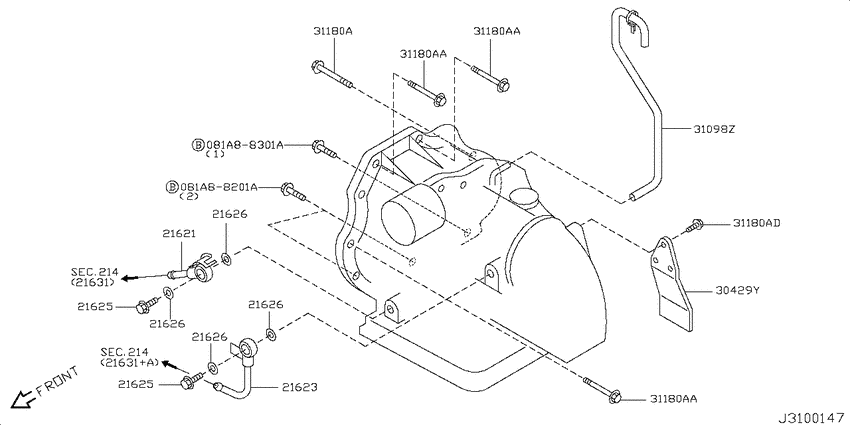

Auto transmission,transaxle & fitting (2006-12-01 ~ ; オイルクーラーチューブパーツ; CR12DE.AT.F4) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2006 - 2012
- Sales region
- Japan
- Engine
- CR12DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- DX
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A88201A
|
081A88201A
081A8-8201A
BOLT
|
081A8-8201A |
— | ||
|
081A88301A
|
081A88301A
081A88301A BOLT |
081A88301A |
US $0.72 |
||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
21621
|
21621
21621-ED00A Tube Assy-Oil Cooler0612--01 ~ 0702--01; CR12DE.AT.F4 |
21621-ED00A |
US $20.45 |
||
|
21621
|
21621
21621ED00B Tube Assy-Oil Cooler0702--01 ~ ; CR12DE.AT.F4 |
21621ED00B |
US $20.45 |
||
|
21623
|
21623
21623-ED00A Tube Assy-Oil Cooler0612--01 ~ 0702--01; CR12DE.AT.F4 |
21623-ED00A |
US $43.06 |
||
|
21623
|
21623
21623-ED00B Tube Assy-Oil Cooler0702--01 ~ ; CR12DE.AT.F4 |
21623-ED00B |
US $43.06 |
||
|
21625
|
21625
21625-F6105
Bolt-Connector
0612--01 ~ 0701--01; CR12DE.AT.F4 |
21625-F6105 |
— | ||
| replacement | |||||
|
21625
|
21625
21625JL00A Bolt-Connector0612--01 ~ 0701--01; CR12DE.AT.F4 |
21625JL00A |
from US $2.61 |
||
|
21625
|
21625
21625JL00A Bolt-Connector0701--01 ~ ; CR12DE.AT.F4 |
21625JL00A |
from US $2.61 |
||
|
21625
|
21625
21625-F6105
Bolt-Connector
0612--01 ~ 0701--01; CR12DE.AT.F4 |
21625-F6105 |
— | ||
| replacement | |||||
|
21625
|
21625
21625JL00A Bolt-Connector0612--01 ~ 0701--01; CR12DE.AT.F4 |
21625JL00A |
from US $2.61 |
||
|
21625
|
21625
21625JL00A Bolt-Connector0701--01 ~ ; CR12DE.AT.F4 |
21625JL00A |
from US $2.61 |
||
|
21626
|
21626
2162632U00 Washer-Seal0612--01 ~ ; CR12DE.AT.F4 |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162632U00 Washer-Seal0612--01 ~ ; CR12DE.AT.F4 |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162632U00 Washer-Seal0612--01 ~ ; CR12DE.AT.F4 |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162632U00 Washer-Seal0612--01 ~ ; CR12DE.AT.F4 |
2162632U00 |
from US $0.59 |
||
|
30429Y
|
30429Y
30432-AX101 Gusset-Transmission To Engine0612--01 ~ ; CR12DE.AT.F4 |
30432-AX101 |
US $31.10 |
||
|
31098Z
|
31098Z
31098AX000 Hose-Breather0612--01 ~ ; CR12DE.AT.F4 |
31098AX000 |
US $16.56 |
||
|
31180A
|
31180A
31377-42B00 Bolt0612--01 ~ ; CR12DE.AT.F4 |
31377-42B00 |
US $2.45 |
||
|
31180A
|
31180A
31377-42B0B Bolt0612--01 ~ ; CR12DE.AT.F4 |
31377-42B0B |
US $2.45 |
||
|
31180A
|
31180A
31377-AX100 Bolt0612--01 ~ ; CR12DE.AT.F4 |
31377-AX100 |
US $2.45 |
||
|
31180AA
|
31180AA
31377-42B0B Bolt0612--01 ~ ; CR12DE.AT.F4 |
31377-42B0B |
US $2.45 |
||
|
31180AA
|
31180AA
31377-42B0B Bolt0612--01 ~ ; CR12DE.AT.F4 |
31377-42B0B |
US $2.45 |
||
|
31180AA
|
31180AA
31377-42B0B Bolt0612--01 ~ ; CR12DE.AT.F4 |
31377-42B0B |
US $2.45 |
||
|
31180AD
|
31180AD
31377-AX100 Bolt0612--01 ~ ; CR12DE.AT.F4 |
31377-AX100 |
US $2.45 |
||
