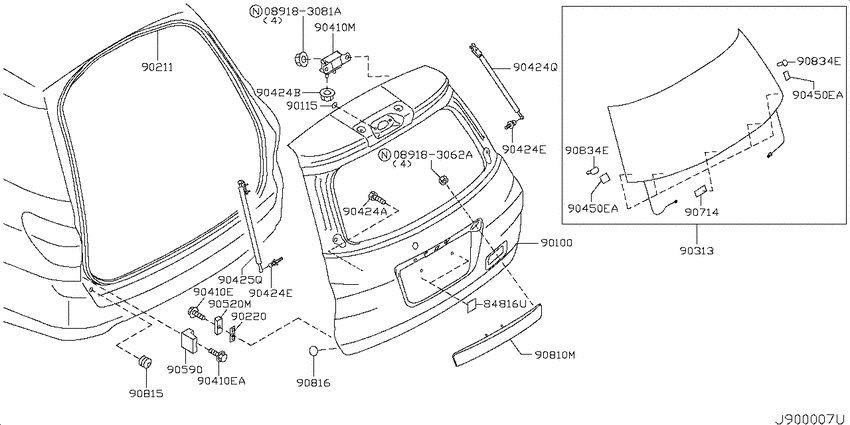

Back door panel & fitting (2006-12-01 ~ ; V) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2006 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- GX
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089183062A
|
089183062A
089183062A NUTFLANGEHEX |
089183062A |
US $1.18 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $0.83 |
||
|
84816U
|
84816U
84816CY00A Protector Back Door Center0612--01 ~ ; V |
84816CY00A |
from US $1.73 |
||
|
90100
|
90100
K010M-JJ0MA ﾄﾞｱ,ﾊﾞﾂｸ0612--01 ~ ; *V.(CR12DE+HR15DE) +*V.LX |
K010M-JJ0MA |
US $518.26 |
||
|
90100
|
90100
K010M-JJ1MA ﾄﾞｱ,ﾊﾞﾂｸ0612--01 ~ ; V.(CR12DE+HR15DE) +V.LX |
K010M-JJ1MA |
US $518.26 |
||
|
90100
|
90100
K010MJJ3AA ﾊﾞﾂｸ ﾄﾞｱ0612--01 ~ ; *V.(CR12DE+HR15DE) +*V.LX |
K010MJJ3AA |
US $518.26 |
||
|
90100
|
90100
K010M-JJ3MA ﾄﾞｱ,ﾊﾞﾂｸ0612--01 ~ ; *V.(CR12DE+HR15DE) +*V.LX |
K010M-JJ3MA |
US $518.26 |
||
|
90115
|
90115
74816AL500 Plug0612--01 ~ ; V |
74816AL500 |
US $1.93 |
||
|
90211
|
90211
90830JJ00A
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ
0612--01 ~ ; V |
90830JJ00A |
— | ||
| replacement | |||||
|
90211
|
90211
90830-JE90A WEATHERSTRIP,BACK DOOR OPENING0612--01 ~ ; V |
90830-JE90A |
US $60.29 |
||
|
90220
|
90220
9052770N00 Shim-Adjusting0612--01 ~ ; V |
9052770N00 |
US $4.32 |
||
|
90313
|
90313
90300-JJ00A ｶﾞﾗｽ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ0612--01 ~ ; V |
90300-JJ00A |
US $516.84 |
||
|
90313
|
90313
90300JJ10A ﾊﾞﾂｸ ﾄﾞｱ ｶﾞﾗｽ0612--01 ~ ; *V |
90300JJ10A |
US $589.06 |
||
|
90410E
|
90410E
0112100743 Bolt0612--01 ~ ; V |
0112100743 |
from US $0.83 |
||
|
90410E
|
90410E
0112100743 Bolt0612--01 ~ ; V |
0112100743 |
from US $0.83 |
||
|
90410EA
|
90410EA
0112100743 Bolt0612--01 ~ ; V |
0112100743 |
from US $0.83 |
||
|
90410M
|
90410M
90400-CV00A ﾋﾝｼﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0612--01 ~ ; V |
90400-CV00A |
US $23.33 |
||
|
90424A
|
90424A
0145600411 SCREW0612--01 ~ ; V; FOR DEF EARTH |
0145600411 |
US $1.67 |
||
|
90424B
|
90424B
01225N8011 Nut0612--01 ~ ; V |
01225N8011 |
from US $0.70 |
||
|
90424E
|
90424E
90456ED000 Stud-Ball, Back Door Stay0612--01 ~ ; V |
90456ED000 |
US $6.91 |
||
|
90424E
|
90424E
90456ED000 Stud-Ball, Back Door Stay0612--01 ~ ; V |
90456ED000 |
US $6.91 |
||
|
90424Q
|
90424Q
90452-JJ00A ｽﾃ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ rh0612--01 ~ ; V |
90452-JJ00A |
US $112.03 |
||
|
90425Q
|
90425Q
90453-JJ00A ｽﾃ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ lh0612--01 ~ ; V |
90453-JJ00A |
US $112.03 |
||
|
90450EA
|
90450EA
90314CV000 ｸﾘﾂﾌﾟ0612--01 ~ ; V |
90314CV000 |
US $0.86 |
||
|
90450EA
|
90450EA
90314CV000 ｸﾘﾂﾌﾟ0612--01 ~ ; V |
90314CV000 |
US $0.86 |
||
|
90520M
|
90520M
9052070N00 Dovetail-Striker0612--01 ~ ; V |
9052070N00 |
US $17.71 |
||
|
90590
|
90590
90524WD000 ﾊﾞﾂｸﾄﾞｱ ﾀﾞﾌﾞﾃ-ﾙ0612--01 ~ ; V |
90524WD000 |
US $13.54 |
||
|
90714
|
90714
9035651C00 Spacer-Glass A0701--01 ~ ; V; [D209] |
9035651C00 |
US $1.73 |
||
|
90810M
|
90810M
90810JJ10A ﾌｲﾆﾂｼﾔ-0612--01 ~ ; V |
90810JJ10A |
US $113.33 |
||
|
90810M
|
90810M
90810JJ20A ﾌｲﾆﾂｼﾔ-0612--01 ~ ; *V |
90810JJ20A |
US $145.44 |
||
|
90815
|
90815
90878WL010 Bumper Rubber0612--01 ~ ; V |
90878WL010 |
US $4.68 |
||
|
90816
|
90816
6089550M00 PROTECTORTRUNK0612--01 ~ ; V |
6089550M00 |
US $0.97 |
||
|
90834E
|
90834E
90359CV000 ｸﾘﾂﾌﾟ0612--01 ~ ; V |
90359CV000 |
US $4.75 |
||
|
90834E
|
90834E
90359CV000 ｸﾘﾂﾌﾟ0612--01 ~ ; V |
90359CV000 |
US $4.75 |
||
