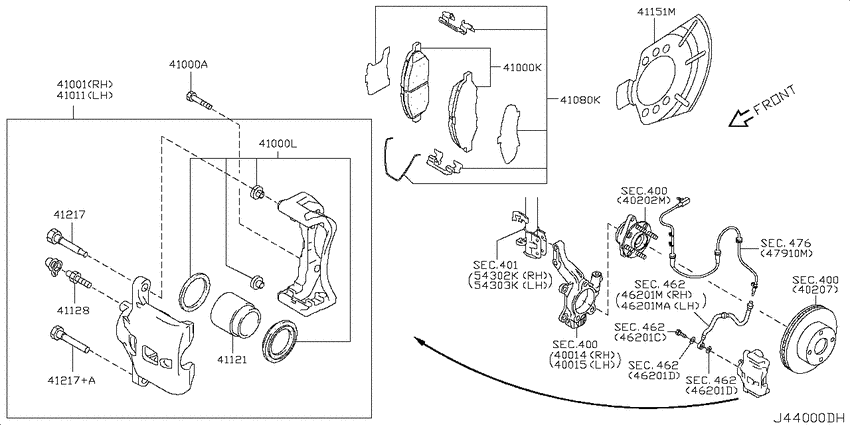

Front brake (2006-12-01 ~ ; CR12DE +HR15DE +MR18DE) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2006 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- GX
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
400
|
Front axle
400
|
||||
|
400
|
Front axle
400
|
||||
|
400
|
Front axle
400
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
41000A
|
41000A
41005EM10A Bolt0612--01 ~ ; CR12DE +HR15DE +MR18DE |
41005EM10A |
US $3.46 |
||
|
41000K
|
41000K
AY040NS133 Pad Kit-Disc Brake0612--01 ~ ; CR12DE +HR15DE +MR18DE |
AY040NS133 |
US $142.56 |
||
|
41000L
|
41000L
D1120-AX00A
Seal Kit-Disc Brake
0612--01 ~ ; CR12DE +HR15DE +MR18DE |
D1120-AX00A |
— | ||
|
41001
|
41001
41001JJ00A Caliper Assy-Front Rh, W/o Pads Or Shims0612--01 ~ ; CR12DE +HR15DE +MR18DE |
41001JJ00A |
US $335.59 |
||
|
41011
|
41011
41011-JJ00A Caliper Assy-Front Lh, W/o Pads Or Shims0612--01 ~ ; CR12DE +HR15DE +MR18DE |
41011-JJ00A |
US $335.59 |
||
|
41080K
|
41080K
D1080JJ00A Hardware Kit-Front Disc Brake Pad0612--01 ~ ; CR12DE +HR15DE +MR18DE |
D1080JJ00A |
US $54.29 |
||
|
41121
|
41121
41121AX000 Piston-Cylinder0612--01 ~ ; CR12DE +HR15DE +MR18DE |
41121AX000 |
US $35.14 |
||
|
41128
|
41128
411288J100 Screw-Bleeder0612--01 ~ ; CR12DE +HR15DE +MR18DE |
411288J100 |
from US $6.91 |
||
|
41151M
|
41151M
41151ED000 Plate-Baffle, Rh0612--01 ~ ; CR12DE +HR15DE +MR18DE |
41151ED000 |
US $27.36 |
||
|
41217
|
41217
41133AX000 Pin0612--01 ~ ; CR12DE +HR15DE +MR18DE |
41133AX000 |
from US $8.32 |
||
|
41217
|
41217
411343U800 Pin0612--01 ~ ; CR12DE +HR15DE +MR18DE |
411343U800 |
from US $8.32 |
||
|
41217+A
|
41217+A
411343U800 Pin0612--01 ~ ; CR12DE +HR15DE +MR18DE |
411343U800 |
from US $8.32 |
||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
476
|
Anti skid control
476
|
||||
