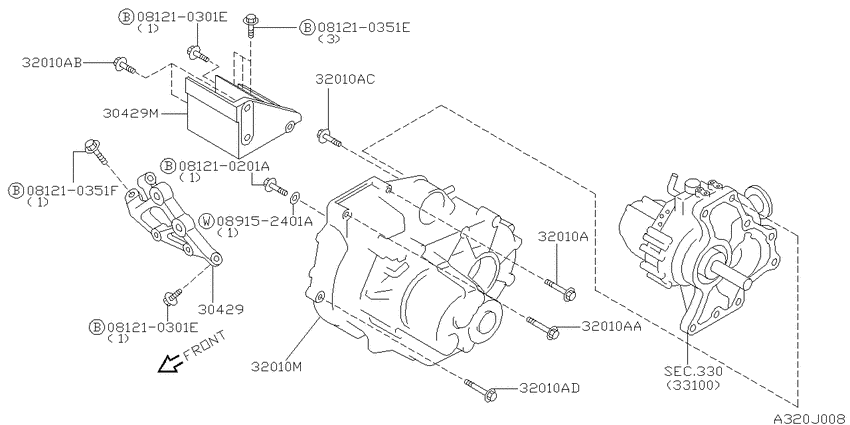

Manual transmission, transaxle & fitting (1997-05-01 ~ ; 4WD.CD20.MT.F5) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 4WD
- transmission
- MT.F5
- grade
- VE
- body
- V/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210201A
|
081210201A
08121-0201A
Bolt-hexagon
|
08121-0201A |
— | ||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210351E
|
081210351E
081210351E Bolt-hexagon |
081210351E |
US $1.15 |
||
|
081210351F
|
081210351F
081210351F Bolt-hexagon |
081210351F |
US $2.91 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
30429
|
30429
30431-51E00 Gusset-Transmission To Engine9705--01 ~ ; 4WD.CD20.MT.F5; ﾌﾛﾝﾄ ﾖｳ |
30431-51E00 |
US $46.80 |
||
|
30429
|
30429
30441-0E002 Gusset-Transmission To Engine9705--01 ~ ; 4WD.CD20.MT.F5; ﾘﾔ ﾖｳ |
30441-0E002 |
US $71.14 |
||
|
30429M
|
30429M
30441-0E002 Gusset-Transmission To Engine9705--01 ~ ; 4WD.CD20.MT.F5; ﾘﾔ ﾖｳ |
30441-0E002 |
US $71.14 |
||
|
32010A
|
32010A
01121-05141 BOLT9705--01 ~ ; 4WD.CD20.MT.F5 |
01121-05141 |
US $2.45 |
||
|
32010A
|
32010A
01121-05141 BOLT9705--01 ~ ; 4WD.CD20.MT.F5 |
01121-05141 |
US $2.45 |
||
|
32010A
|
32010A
31377-74N00 Bolt9705--01 ~ ; 4WD.CD20.MT.F5 |
31377-74N00 |
US $2.45 |
||
|
32010A
|
32010A
01121-03961 BOLT9705--01 ~ ; 4WD.CD20.MT.F5 |
01121-03961 |
US $2.45 |
||
|
32010A
|
32010A
31377-60Y00 Bolt9705--01 ~ ; 4WD.CD20.MT.F5 |
31377-60Y00 |
US $4.18 |
||
|
32010AA
|
32010AA
01121-05141 BOLT9705--01 ~ ; 4WD.CD20.MT.F5 |
01121-05141 |
US $2.45 |
||
|
32010AB
|
32010AB
31377-74N00 Bolt9705--01 ~ ; 4WD.CD20.MT.F5 |
31377-74N00 |
US $2.45 |
||
|
32010AC
|
32010AC
01121-03961 BOLT9705--01 ~ ; 4WD.CD20.MT.F5 |
01121-03961 |
US $2.45 |
||
|
32010AD
|
32010AD
31377-60Y00 Bolt9705--01 ~ ; 4WD.CD20.MT.F5 |
31377-60Y00 |
US $4.18 |
||
|
32010M
|
32010M
32010-1M014 Transaxle Assy-Manual9705--01 ~ ; 4WD.CD20.MT.F5; RS5F50A |
32010-1M014 |
US $2,310 |
||
|
330
|
Transfer assembly & fitting
330
|
||||
