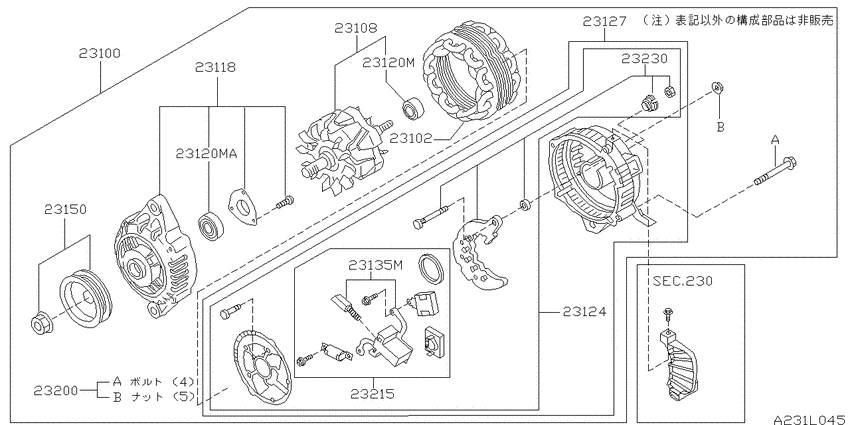

Alternator (1997-05-01 ~ ; GA13DE.AT.F4) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- GA13DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- VE
- body
- V/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
230
|
Alternator fitting
230
|
||||
|
230
|
Alternator fitting
230
|
||||
|
23100
|
23100
23100-0M005 Alternator Assy9705--01 ~ ; GA13DE.AT.F4; ﾋﾀﾁ |
23100-0M005 |
US $1,442 |
||
|
23100
|
23100
0122100381 NUT9705--01 ~ ; GA13DE |
0122100381 |
from US $5.85 |
||
|
23102
|
23102
23102-0M005 Stator Assy9705--01 ~ ; GA13DE.AT.F4; ﾋﾀﾁ |
23102-0M005 |
US $417.72 |
||
|
23108
|
23108
23108-0M000 Rotor Assy9705--01 ~ ; GA13DE.AT.F4; ﾋﾀﾁ |
23108-0M000 |
US $416.30 |
||
| replacement | |||||
|
23108
|
23108
23108-4M40A Rotor Assy9705--01 ~ ; GA13DE.AT.F4; ﾋﾀﾁ |
23108-4M40A |
US $416.30 |
||
|
23118
|
23118
23118-0M000 Cover Assy-Front9705--01 ~ ; GA13DE.AT.F4; ﾋﾀﾁ |
23118-0M000 |
US $135.65 |
||
|
23120M
|
23120M
23120-0M000 Bearing-Ball9705--01 ~ ; GA13DE.AT.F4; ﾋﾀﾁ |
23120-0M000 |
US $42.34 |
||
|
23120M
|
23120M
23120-0M005 Bearing-Ball9705--01 ~ ; GA13DE.AT.F4; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23120MA
|
23120MA
23120-0M005 Bearing-Ball9705--01 ~ ; GA13DE.AT.F4; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23124
|
23124
23124-0M002 Rectifier Assy9705--01 ~ ; GA13DE.AT.F4 |
23124-0M002 |
US $497.02 |
||
|
23127
|
23127
23127-0M006 Cover Assy-Rear9705--01 ~ ; GA13DE.AT.F4 |
23127-0M006 |
US $744.82 |
||
|
23135M
|
23135M
23142-31U00 Brush-F9705--01 ~ ; GA13DE.AT.F4 |
23142-31U00 |
US $9.65 |
||
|
23150
|
23150
23150-0M000 Pulley Assy9705--01 ~ ; GA13DE.AT.F4; ﾋﾀﾁ |
23150-0M000 |
US $134.21 |
||
|
23200
|
23200
23200-0M000 Screw Set9705--01 ~ ; GA13DE.AT.F4; ﾋﾀﾁ |
23200-0M000 |
US $8.50 |
||
|
23215
|
23215
23215-5V100 Regulator Assy-Ic9705--01 ~ ; GA13DE.AT.F4 |
23215-5V100 |
US $267.84 |
||
|
23230
|
23230
23230-0M002 Diode Assy9705--01 ~ ; GA13DE.AT.F4 |
23230-0M002 |
US $252 |
||
