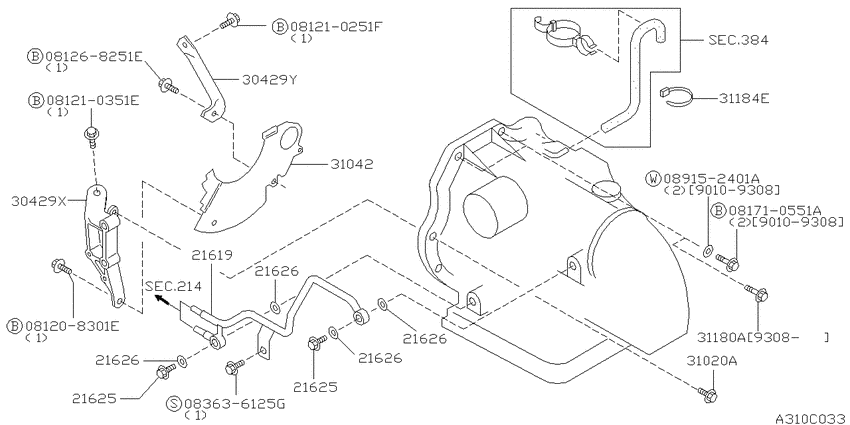

Auto transmission,transaxle & fitting (1993-08-01 ~ 1994-08-01; " ﾄﾗﾝｽﾐｯｼｮﾝ ﾌｨｯﾃｨﾝｸﾞ ﾊﾟｰﾂ (RL4F03A); (CD17+CD20).AT.F4) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- AT.F4
- grade
- L
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081210351E
|
081210351E
081210351E Bolt-hexagon |
081210351E |
US $1.13 |
||
|
081268251E
|
081268251E
08126-8251E
Bolt-hexagon
|
08126-8251E |
— | ||
|
081710551A
|
081710551A
081710551A
Bolt-hexagon
|
081710551A |
— | ||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
21619
|
21619
21619-60Y01 Tube Assy-Oil Cooler9308--01 ~ 9506--01; (CD17+CD20).AT.F4 |
21619-60Y01 |
US $26.93 |
||
|
21625
|
21625
21625-54J01 Bolt-Connector9308--01 ~ 9408--01; (CD17+CD20).AT.F4 |
21625-54J01 |
US $7.20 |
||
|
21625
|
21625
21625-F6100 Bolt-Connector9408--01 ~ 9506--01; (CD17+CD20).AT.F4 |
21625-F6100 |
US $7.48 |
||
|
21625
|
21625
21625-54J01 Bolt-Connector9308--01 ~ 9408--01; (CD17+CD20).AT.F4 |
21625-54J01 |
US $7.20 |
||
|
21625
|
21625
21625-F6100 Bolt-Connector9408--01 ~ 9506--01; (CD17+CD20).AT.F4 |
21625-F6100 |
US $7.48 |
||
|
21626
|
21626
2162664U00 Washer-Seal9308--01 ~ 9506--01; (CD17+CD20).AT.F4 |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162664U00 Washer-Seal9308--01 ~ 9506--01; (CD17+CD20).AT.F4 |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162664U00 Washer-Seal9308--01 ~ 9506--01; (CD17+CD20).AT.F4 |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162664U00 Washer-Seal9308--01 ~ 9506--01; (CD17+CD20).AT.F4 |
2162664U00 |
US $2.45 |
||
|
30429X
|
30429X
30431-51E01 Gusset-Transmission To Engine9308--01 ~ 9506--01; (CD17+CD20).AT.F4; ﾌﾛﾝﾄ ﾖｳ |
30431-51E01 |
US $43.06 |
||
|
30429Y
|
30429Y
30432-04E02 Gusset-Transmission To Engine9308--01 ~ 9506--01; *CD20.AT.F4; ﾘﾔ ﾖｳ ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
30432-04E02 |
US $23.62 |
||
|
30429Y
|
30429Y
30432-15M00 Gusset-Transmission To Engine9308--01 ~ 9506--01; (CD17+CD20).AT.F4; ﾘﾔ ﾖｳ |
30432-15M00 |
US $23.62 |
||
|
31020A
|
31020A
01121-03251 BOLT9308--01 ~ 9506--01; (CD17+CD20).AT.F4 |
01121-03251 |
US $2.45 |
||
|
31042
|
31042
30422-59Y00 Cover-Dust9308--01 ~ 9506--01; (CD17+CD20).AT.F4 |
30422-59Y00 |
US $49.54 |
||
|
31180A
|
31180A
31377-0E000 BOLT9308--01 ~ 9506--01; (CD17+CD20).AT.F4 |
31377-0E000 |
US $2.45 |
||
|
31184E
|
31184E
01552-00033 CLIP-HARNESS9308--01 ~ 9408--01; CD20.AT.F4 |
01552-00033 |
US $4.85 |
||
|
384
|
Breather piping (for fr unit)
384
|
||||
|
384
|
Breather piping (for fr unit)
384
|
||||
