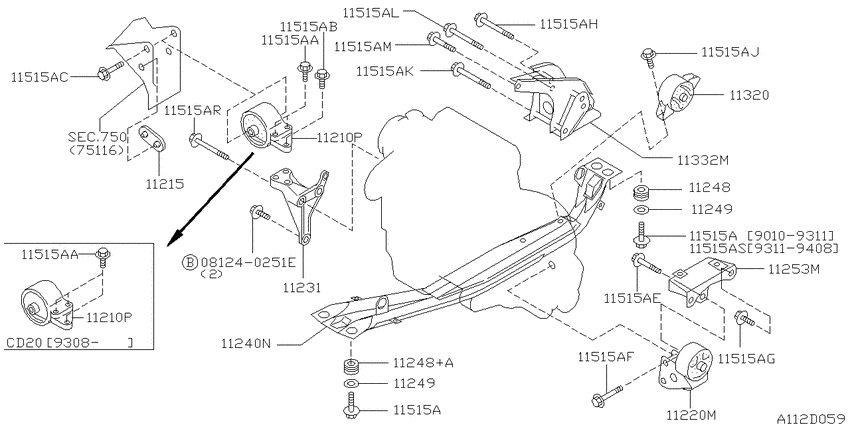

Engine & transmission mounting (1993-08-01 ~ 1994-08-01; (CD17+CD20).2WD.AT.F4) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- AT.F4
- grade
- L
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081240251E
|
081240251E
081240251E
Bolt-hexagon
|
081240251E |
— | ||
|
11210P
|
11210P
11210-62C03 Insulator-Engine Mounting, Front9308--01 ~ 9408--01; CD20.AT.F4 |
11210-62C03 |
US $152.64 |
||
|
11210P
|
11210P
11210-62C03 Insulator-Engine Mounting, Front9308--01 ~ 9408--01; CD20.AT.F4 |
11210-62C03 |
US $152.64 |
||
|
11215
|
11215
11215-50Y10 Stopper-Engine Mounting9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
11215-50Y10 |
US $13.59 |
||
|
11220M
|
11220M
11220-0M810 Insulator Assy-Engine Mounting, Front Lh9406--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
11220-0M810 |
US $95.04 |
||
|
11220M
|
11220M
11220-58Y11 Insulator Assy-Engine Mounting, Front Lh9308--01 ~ 9406--01; CD17.AT.F4 +CD20.AT.F4 |
11220-58Y11 |
US $94.03 |
||
|
11231
|
11231
11231-62C01 Bracket-Engine Mounting9308--01 ~ 9408--01; CD20.AT.F4 |
11231-62C01 |
US $216 |
||
|
11231
|
11231
11231-62C01 Bracket-Engine Mounting9408--01 ~ 9506--01; CD20.AT.F4 |
11231-62C01 |
US $216 |
||
|
11240N
|
11240N
11240-50Y10 Member Assy-Front, Center9308--01 ~ 9309--01; CD17.AT.F4 +CD20.AT.F4 |
11240-50Y10 |
US $105.84 |
||
|
11240N
|
11240N
11240-60R00 Member Assy-Front, Center9309--01 ~ 9408--01; CD20.AT.F4 |
11240-60R00 |
US $154.08 |
||
|
11248
|
11248
11248-50Y05 Pad-Engine Mounting Member9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
11248-50Y05 |
from US $5.27 |
||
|
11248
|
11248
11248-60R00 Pad-Engine Mounting Member9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
11248-60R00 |
US $6.77 |
||
|
11248
|
11248
11248-60R00 Pad-Engine Mounting Member9408--01 ~ 9506--01; CD17.AT.F4 +CD20.AT.F4 |
11248-60R00 |
US $6.77 |
||
|
11248
|
11248
11248-50Y05 Pad-Engine Mounting Member9408--01 ~ 9506--01; CD17.AT.F4 +CD20.AT.F4 |
11248-50Y05 |
from US $5.27 |
||
|
11248+A
|
11248+A
11248-60R00 Pad-Engine Mounting Member9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
11248-60R00 |
US $6.77 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
11249-50Y00 |
from US $1.67 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9408--01 ~ 9506--01; CD17.AT.F4 +CD20.AT.F4 |
11249-50Y00 |
from US $1.67 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
11249-50Y00 |
from US $1.67 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9408--01 ~ 9506--01; CD17.AT.F4 +CD20.AT.F4 |
11249-50Y00 |
from US $1.67 |
||
|
11253M
|
11253M
11253-50Y11 Bracket-Engine Mounting, Lh9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
11253-50Y11 |
US $50.40 |
||
|
11320
|
11320
11320-50Y10
Insulator-Engine Mounting, Rear
9308--01 ~ 9406--01; CD17.AT.F4 +CD20.AT.F4 |
11320-50Y10 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-50Y11 Insulator-Engine Mounting, Rear9308--01 ~ 9406--01; CD17.AT.F4 +CD20.AT.F4 |
11320-50Y11 |
from US $65.98 |
||
|
11320
|
11320
11320-50Y11 Insulator-Engine Mounting, Rear9406--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
11320-50Y11 |
from US $65.98 |
||
|
11332M
|
11332M
11332-56C00 Bracket-Engine Mounting, Rear9503--01 ~ 9506--01; *CD17.AT.F4 +*CD20.AT.F4; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
11332-56C00 |
US $97.49 |
||
|
11332M
|
11332M
11332-56C10 Bracket-Engine Mounting, Rear9308--01 ~ 9408--01; *CD17.AT.F4 +*CD20.AT.F4; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
11332-56C10 |
US $106.42 |
||
|
11332M
|
11332M
11332-59Y00 Bracket-Engine Mounting, Rear9503--01 ~ 9506--01; CD17.AT.F4 +CD20.AT.F4 |
11332-59Y00 |
US $96.91 |
||
|
11332M
|
11332M
11332-59Y10 Bracket-Engine Mounting, Rear9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
11332-59Y10 |
US $106.42 |
||
|
11515A
|
11515A
01125-01911 BOLT9308--01 ~ 9311--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01911 |
US $2.45 |
||
|
11515A
|
11515A
01125-01821 BOLT9308--01 ~ 9408--01; CD20.AT.F4 |
01125-01821 |
US $4.18 |
||
|
11515A
|
11515A
01125-01991 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01991 |
US $3.46 |
||
|
11515A
|
11515A
01125-01931 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01931 |
US $2.45 |
||
|
11515A
|
11515A
01125-01861 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01861 |
US $2.45 |
||
|
11515A
|
11515A
0112501951 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
0112501951 |
US $3.46 |
||
|
11515A
|
11515A
01125-01991 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01991 |
US $3.46 |
||
|
11515A
|
11515A
01125-01941 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01941 |
US $4.18 |
||
|
11515A
|
11515A
01125-01861 BOLT9308--01 ~ 9408--01; *CD17.AT.F4 +*CD20.AT.F4; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
01125-01861 |
US $2.45 |
||
|
11515A
|
11515A
01125-01881 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01881 |
US $2.45 |
||
|
11515A
|
11515A
01125-01791 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01791 |
US $2.45 |
||
|
11515A
|
11515A
01125-01891 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01891 |
US $4.18 |
||
|
11515A
|
11515A
01121-04771 BOLT9308--01 ~ 9408--01; CD20.AT.F4 |
01121-04771 |
US $1.73 |
||
|
11515A
|
11515A
54459-0M011 Bolt9311--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
54459-0M011 |
US $3.46 |
||
|
11515A
|
11515A
01125-01911 BOLT9308--01 ~ 9311--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01911 |
US $2.45 |
||
|
11515A
|
11515A
01125-01821 BOLT9308--01 ~ 9408--01; CD20.AT.F4 |
01125-01821 |
US $4.18 |
||
|
11515A
|
11515A
01125-01991 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01991 |
US $3.46 |
||
|
11515A
|
11515A
01125-01931 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01931 |
US $2.45 |
||
|
11515A
|
11515A
01125-01861 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01861 |
US $2.45 |
||
|
11515A
|
11515A
0112501951 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
0112501951 |
US $3.46 |
||
|
11515A
|
11515A
01125-01991 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01991 |
US $3.46 |
||
|
11515A
|
11515A
01125-01941 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01941 |
US $4.18 |
||
|
11515A
|
11515A
01125-01861 BOLT9308--01 ~ 9408--01; *CD17.AT.F4 +*CD20.AT.F4; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
01125-01861 |
US $2.45 |
||
|
11515A
|
11515A
01125-01881 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01881 |
US $2.45 |
||
|
11515A
|
11515A
01125-01791 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01791 |
US $2.45 |
||
|
11515A
|
11515A
01125-01891 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01891 |
US $4.18 |
||
|
11515A
|
11515A
01121-04771 BOLT9308--01 ~ 9408--01; CD20.AT.F4 |
01121-04771 |
US $1.73 |
||
|
11515A
|
11515A
54459-0M011 Bolt9311--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
54459-0M011 |
US $3.46 |
||
|
11515AA
|
11515AA
01125-01821 BOLT9308--01 ~ 9408--01; CD20.AT.F4 |
01125-01821 |
US $4.18 |
||
|
11515AA
|
11515AA
01125-01821 BOLT9308--01 ~ 9408--01; CD20.AT.F4 |
01125-01821 |
US $4.18 |
||
|
11515AC
|
11515AC
01125-01991 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01991 |
US $3.46 |
||
|
11515AE
|
11515AE
01125-01931 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01931 |
US $2.45 |
||
|
11515AF
|
11515AF
01125-01861 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01861 |
US $2.45 |
||
|
11515AG
|
11515AG
0112501951 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
0112501951 |
US $3.46 |
||
|
11515AH
|
11515AH
01125-01991 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01991 |
US $3.46 |
||
|
11515AJ
|
11515AJ
01125-01941 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01941 |
US $4.18 |
||
|
11515AK
|
11515AK
01125-01861 BOLT9308--01 ~ 9408--01; *CD17.AT.F4 +*CD20.AT.F4; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
01125-01861 |
US $2.45 |
||
|
11515AK
|
11515AK
01125-01881 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01881 |
US $2.45 |
||
|
11515AL
|
11515AL
01125-01791 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01791 |
US $2.45 |
||
|
11515AM
|
11515AM
01125-01891 BOLT9308--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
01125-01891 |
US $4.18 |
||
|
11515AR
|
11515AR
01121-04771 BOLT9308--01 ~ 9408--01; CD20.AT.F4 |
01121-04771 |
US $1.73 |
||
|
11515AS
|
11515AS
54459-0M011 Bolt9311--01 ~ 9408--01; CD17.AT.F4 +CD20.AT.F4 |
54459-0M011 |
US $3.46 |
||
|
