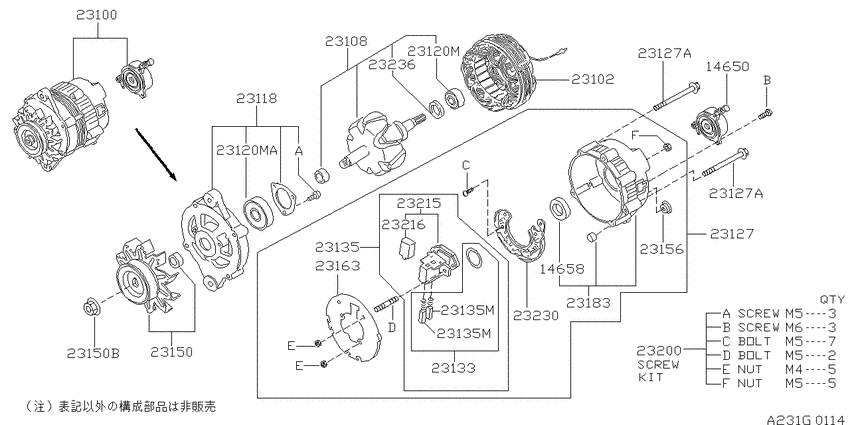

Alternator (1995-06-01 ~ 1996-05-01; 日立 オルタネーター 本体; CD20) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- SLX
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14650
|
14650
146500E402 Pump Assy-Vacuum9401--01 ~ 9506--01; CD20; ﾋﾀﾁ |
146500E402 |
US $852.43 |
||
|
14650
|
14650
14650-57J00 Pump Assy-Vacuum9308--01 ~ 9401--01; CD20; ﾋﾀﾁ |
14650-57J00 |
US $1,029.43 |
||
|
14658
|
14658
14658-16A00 Seal-Oil9506--01 ~ 9605--01; CD20; ﾋﾀﾁ |
14658-16A00 |
US $19.15 |
||
| replacement | |||||
|
14658
|
14658
14658-44G00 Seal-Oil9506--01 ~ 9605--01; CD20; ﾋﾀﾁ |
14658-44G00 |
from US $15.84 |
||
|
14658
|
14658
14658-44G00 Seal-Oil9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
14658-44G00 |
from US $15.84 |
||
|
14658
|
14658
14658-54A00 Seal-O Ring9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
14658-54A00 |
US $4.03 |
||
|
23100
|
23100
23100-0E400 Alternator Assy9308--01 ~ 9401--01; CD20; ﾋﾀﾁ |
23100-0E400 |
US $1,554 |
||
|
23100
|
23100
23100-0E402 Alternator Assy9401--01 ~ 9408--01; CD20 |
23100-0E402 |
US $1,554 |
||
|
23100
|
23100
01221-00241 NUT9308--01 ~ 9506--01; CD20 |
01221-00241 |
US $1.73 |
||
|
23102
|
23102
23102-1P000 Stator Assy9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23102-1P000 |
US $286.56 |
||
|
23108
|
23108
23108-1P000 Rotor Assy9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23108-1P000 |
US $286.56 |
||
|
23118
|
23118
23118-1P000 Cover Assy-Front9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23118-1P000 |
US $110.88 |
||
|
23120M
|
23120M
23120-57J00 Bearing-Ball9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23120-57J00 |
US $22.75 |
||
|
23120M
|
23120M
23120-58S00
Bearing-Ball
9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23120-58S00 |
— | ||
|
23120MA
|
23120MA
23120-58S00
Bearing-Ball
9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23120-58S00 |
— | ||
|
23127
|
23127
23127-86N01 Cover Assy-Rear9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23127-86N01 |
US $887.83 |
||
|
23127
|
23127
23131-W1700 Bolt-Through9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23131-W1700 |
US $4.42 |
||
|
23127A
|
23127A
23131-W1700 Bolt-Through9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23131-W1700 |
US $4.42 |
||
|
23127A
|
23127A
23131-W1700 Bolt-Through9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23131-W1700 |
US $4.42 |
||
|
23133
|
23133
23133-0C400 Holder Assy-Brush9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23133-0C400 |
US $37.30 |
||
|
23135
|
23135
23135-0C400 Brush Assy9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23135-0C400 |
US $244.80 |
||
|
23135
|
23135
23142-1P000 Brush-F9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23142-1P000 |
US $7.92 |
||
|
23135M
|
23135M
23142-1P000 Brush-F9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23142-1P000 |
US $7.92 |
||
|
23135M
|
23135M
23142-1P000 Brush-F9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23142-1P000 |
US $7.92 |
||
|
23150
|
23150
23150-0C400 Pulley Assy9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23150-0C400 |
US $51.12 |
||
|
23150
|
23150
23153-43G06 Nut Assy-Pulley9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23153-43G06 |
US $6.05 |
||
|
23150B
|
23150B
23153-43G06 Nut Assy-Pulley9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23153-43G06 |
US $6.05 |
||
|
23156
|
23156
23156-86N00 Terminal Assy-B9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23156-86N00 |
US $11.95 |
||
|
23163
|
23163
23163-86N00 Guide-Alternator Fan9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23163-86N00 |
US $7.49 |
||
|
23183
|
23183
23183-86N00 Cover-Rear9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23183-86N00 |
US $288.86 |
||
|
23200
|
23200
23200-0C401 Screw Set9308--01 ~ 9401--01; CD20; ﾋﾀﾁ |
23200-0C401 |
US $6.91 |
||
|
23200
|
23200
23200-0E402 Screw Set9401--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23200-0E402 |
US $9.50 |
||
|
23215
|
23215
23215-0C400 Regulator Assy-Ic9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23215-0C400 |
US $224.64 |
||
|
23216
|
23216
23216-0C400 Condenser9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23216-0C400 |
US $22.46 |
||
|
23230
|
23230
23230-86N00 Diode Assy9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23230-86N00 |
US $169.92 |
||
|
23236
|
23236
23236-1P000 Cover-Brush9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23236-1P000 |
US $4.03 |
||
