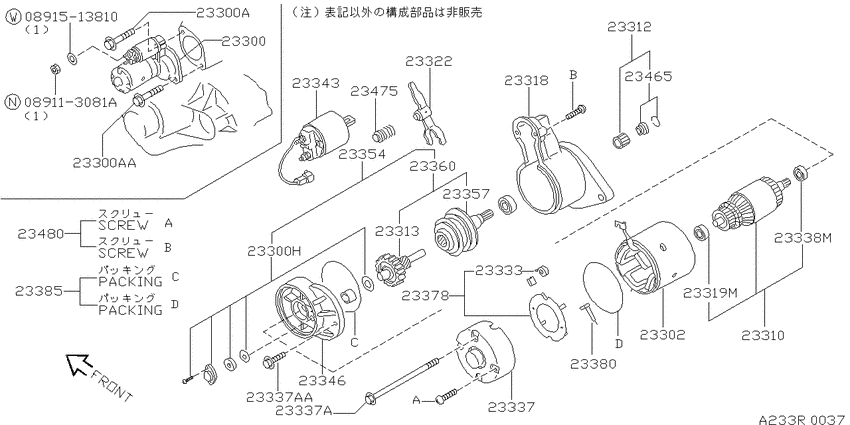

Starter motor (1995-06-01 ~ 1996-01-01; 三菱 *=寒冷地仕様; *CD20.MT.F5) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT.F5
- grade
- SLX
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-11M02 Motor Assy-Starter9308--01 ~ 9506--01; CD20.MT.F5; ﾋﾀﾁ |
23300-11M02 |
US $1,088.90 |
||
|
23300
|
23300
23300-54A01 Motor Assy-Starter9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23300-54A01 |
US $1,192.27 |
||
|
23300
|
23300
23300-54A05 Motor Assy-Starter9506--01 ~ 9601--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23300-54A05 |
US $1,192.27 |
||
|
23300
|
23300
23300-57J12 Motor Assy-Starter9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23300-57J12 |
US $1,325.38 |
||
|
23300
|
23300
01121-00981 BOLT9308--01 ~ 9408--01; CD20.SLX.MT.F5 |
01121-00981 |
US $2.45 |
||
|
23300
|
23300
01121-00971 BOLT9308--01 ~ 9506--01; *CD20.MT.F5; ｶﾝﾚｲﾁ ｼﾖｳ |
01121-00971 |
US $4.18 |
||
|
23300
|
23300
23396-57J10 Cover-Starter Motor9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23396-57J10 |
US $10.08 |
||
|
23300A
|
23300A
01121-00981 BOLT9308--01 ~ 9408--01; CD20.SLX.MT.F5 |
01121-00981 |
US $2.45 |
||
|
23300A
|
23300A
01121-00971 BOLT9308--01 ~ 9506--01; *CD20.MT.F5; ｶﾝﾚｲﾁ ｼﾖｳ |
01121-00971 |
US $4.18 |
||
|
23300AA
|
23300AA
01121-00971 BOLT9308--01 ~ 9506--01; *CD20.MT.F5; ｶﾝﾚｲﾁ ｼﾖｳ |
01121-00971 |
US $4.18 |
||
|
23300H
|
23300H
23396-57J10 Cover-Starter Motor9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23396-57J10 |
US $10.08 |
||
|
23302
|
23302
23302-57J12 Yoke Assy9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23302-57J12 |
US $253.44 |
||
|
23310
|
23310
23310-0Y000 Armature Assy9506--01 ~ 9601--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-0Y000 |
from US $403.56 |
||
|
23310
|
23310
23310-54A00 Armature Assy9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-54A00 |
US $431.88 |
||
|
23310
|
23310
23310-57J13 Armature Assy9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-57J13 |
US $583.39 |
||
|
23310
|
23310
23310-V5300 Armature Assy9308--01 ~ 9506--01; CD20.MT.F5; ﾋﾀﾁ |
23310-V5300 |
US $485.69 |
||
|
23312
|
23312
23312-11M00 Pinion Assy9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23312-11M00 |
US $359.66 |
||
| replacement | |||||
|
23312
|
23312
23312-03J00 Pinion Assy9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23312-03J00 |
US $359.66 |
||
|
23312
|
23312
23312-57J10 Pinion Assy9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23312-57J10 |
US $332.76 |
||
|
23313
|
23313
23361-57J10 Gear9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23361-57J10 |
US $65.23 |
||
|
23318
|
23318
23318-07M00 Case Assy-Gear9308--01 ~ 9506--01; CD20.MT.F5; ﾋﾀﾁ |
23318-07M00 |
US $96.19 |
||
|
23318
|
23318
23318-54A00 Case Assy-Gear9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23318-54A00 |
US $210.24 |
||
|
23318
|
23318
23318-54A05 Case Assy-Gear9506--01 ~ 9601--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23318-54A05 |
US $146.88 |
||
|
23318
|
23318
23318-57J12 Case Assy-Gear9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23318-57J12 |
US $121.68 |
||
|
23319M
|
23319M
23319-M4900 Metal-Gear Case9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23319-M4900 |
US $21.46 |
||
|
23319M
|
23319M
23319W1710 Bearing-Gear Case9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23319W1710 |
US $15.98 |
||
|
23322
|
23322
23322-0Y000 Lever Set-Shift9506--01 ~ 9601--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23322-0Y000 |
US $18.86 |
||
|
23322
|
23322
23322-57J13 Lever Set-Shift9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23322-57J13 |
US $25.78 |
||
|
23322
|
23322
23322-H9100 Lever Set-Shift9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23322-H9100 |
US $8.64 |
||
|
23333
|
23333
23333-0C410 Spring-Brush9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-0C410 |
US $8.64 |
||
|
23333
|
23333
23333-M4901 Spring-Brush9308--01 ~ 9506--01; CD20.MT.F5; ﾋﾀﾁ |
23333-M4901 |
US $8.78 |
||
|
23333
|
23333
23333-W2500 Spring-Brush9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-W2500 |
US $5.04 |
||
|
23337
|
23337
23337-0Y000 Cover Assy-Rear9506--01 ~ 9601--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23337-0Y000 |
US $43.06 |
||
|
23337
|
23337
23337-54A00 Cover Assy-Rear9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23337-54A00 |
US $56.16 |
||
|
23337
|
23337
23337-57J13 Cover Assy-Rear9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23337-57J13 |
US $56.74 |
||
|
23337
|
23337
23337-M4901 Cover Assy-Rear9308--01 ~ 9506--01; CD20.MT.F5; ﾋﾀﾁ |
23337-M4901 |
US $11.38 |
||
|
23337
|
23337
23340-0Y000 Bolt-Through9506--01 ~ 9601--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-0Y000 |
US $4.18 |
||
|
23337
|
23337
23340-57J10 Bolt-Through9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-57J10 |
US $5.47 |
||
|
23337
|
23337
23340N5900 Bolt-Through9308--01 ~ 9408--01; *CD20.MT.F5; ﾋﾔﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340N5900 |
US $4.61 |
||
|
23337
|
23337
23340-57J11 Bolt-Through9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-57J11 |
US $10.08 |
||
|
23337A
|
23337A
23340-0Y000 Bolt-Through9506--01 ~ 9601--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-0Y000 |
US $4.18 |
||
|
23337A
|
23337A
23340-57J10 Bolt-Through9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-57J10 |
US $5.47 |
||
|
23337A
|
23337A
23340N5900 Bolt-Through9308--01 ~ 9408--01; *CD20.MT.F5; ﾋﾔﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340N5900 |
US $4.61 |
||
|
23337A
|
23337A
23340-57J11 Bolt-Through9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-57J11 |
US $10.08 |
||
|
23337AA
|
23337AA
23340-57J11 Bolt-Through9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-57J11 |
US $10.08 |
||
|
23338M
|
23338M
23338-M4900 Metal-Rear Cover9308--01 ~ 9506--01; CD20; ﾋﾀﾁ |
23338-M4900 |
from US $52.13 |
||
|
23338M
|
23338M
23338W1710 Bearing-Rear Cover9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23338W1710 |
from US $13.71 |
||
|
23343
|
23343
23343-0C415 Switch Assy-Magnetic9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23343-0C415 |
US $168.48 |
||
|
23343
|
23343
23343-54A00 Switch Assy-Magnetic9308--01 ~ 9408--01; *CD20.MT.F5; ﾋﾔﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23343-54A00 |
US $168.48 |
||
|
23343
|
23343
23343-57J05 Switch Assy-Magnetic9506--01 ~ 9601--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23343-57J05 |
US $184.32 |
||
|
23346
|
23346
23346-57J12 Housing-Center9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23346-57J12 |
US $120.38 |
||
|
23354
|
23354
23354-11M00 Shaft-Pinion9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23354-11M00 |
US $156.96 |
||
|
23354
|
23354
23354-57J10 Clutch Assy9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23354-57J10 |
US $298.78 |
||
|
23357
|
23357
23357-57J10 Shaft-Pinion9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23357-57J10 |
US $180 |
||
|
23357
|
23357
23357W1700 Shaft-Pinion9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23357W1700 |
US $148.32 |
||
|
23360
|
23360
23360-57J10 Gear & Shaft Set9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23360-57J10 |
US $369.58 |
||
|
23378
|
23378
23378-0Y000 Holder Assy-Brush9506--01 ~ 9601--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23378-0Y000 |
US $42.62 |
||
|
23378
|
23378
23378-54A00 Holder Assy-Brush9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23378-54A00 |
US $55.87 |
||
|
23378
|
23378
23378-57J10 Holder Assy-Brush9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23378-57J10 |
US $53.14 |
||
|
23378
|
23378
23378M4901 Holder Assy-Brush9308--01 ~ 9506--01; CD20.MT.F5; ﾋﾀﾁ |
23378M4901 |
US $47.81 |
||
|
23380
|
23380
23380-0Y000 Brush-Plus9506--01 ~ 9601--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23380-0Y000 |
US $10.94 |
||
|
23380
|
23380
2338057J13 Brush-Plus9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
2338057J13 |
from US $10.75 |
||
|
23380
|
23380
23380-M4900 Brush-Plus9308--01 ~ 9506--01; CD20.MT.F5; ﾋﾀﾁ |
23380-M4900 |
US $10.37 |
||
|
23380
|
23380
23380-W2500 Brush-Plus9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23380-W2500 |
US $7.78 |
||
| replacement | |||||
|
23380
|
23380
23331-T9000 Brush-Plus9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23331-T9000 |
US $9.50 |
||
|
23385
|
23385
23385-57J10 Packing9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23385-57J10 |
US $10.80 |
||
|
23465
|
23465
23359-N5911 Ring-Snap9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23359-N5911 |
US $7.34 |
||
|
23465
|
23465
23465-M4900 Stopper Set-Pinion9308--01 ~ 9506--01; *CD20.MT.F5; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23465-M4900 |
US $9.50 |
||
|
23475
|
23475
23475-57J10 Spring Set9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23475-57J10 |
US $14.26 |
||
|
23480
|
23480
23480-M0110 Screw Set9506--01 ~ 9601--01; *CD20.MT.F5; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23480-M0110 |
US $9.36 |
||
