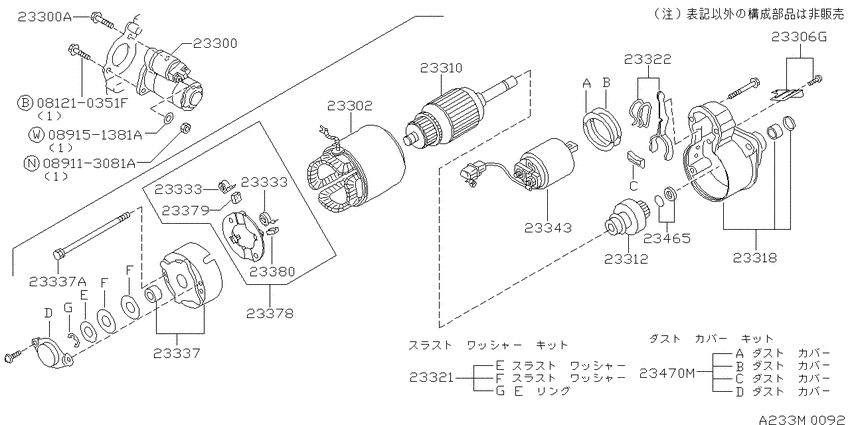

Starter motor (1995-06-01 ~ 1996-05-01; 日立; 4W/4D.2WD.GA15DE.AT.F4 +W/2D.GA15DE +2WD.GA15DE.MT.F5) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1995 - 1996
- Sales region
- Japan
- Engine
- GA15DE
- drive
- 2WD
- transmission
- MT.F5
- grade
- LE
- body
- W/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210351F
|
081210351F
081210351F Bolt-hexagon |
081210351F |
US $2.91 |
||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.54 |
||
|
23300
|
23300
23300-41B15 Motor Assy-Starter9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23300-41B15 |
US $836.86 |
||
|
23302
|
23302
23302-M8212 Yoke Assy9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23302-M8212 |
US $335.59 |
||
|
23310
|
23310
23310-M8213 Armature Assy9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23310-M8213 |
US $433.30 |
||
|
23318
|
23318
23318-41B15 Case Assy-Gear9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23318-41B15 |
US $168.48 |
||
|
23321
|
23321
23460-M8011 Washer Set-Thrust9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23460-M8011 |
US $7.92 |
||
|
23322
|
23322
23322-M8011 Lever Set-Shift9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23322-M8011 |
US $21.02 |
||
|
23333
|
23333
23333M1510 Spring-Brush9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333M1510 Spring-Brush9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23337
|
23337
23337M8011 Cover Assy-Rear9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23337M8011 |
US $34.99 |
||
|
23337
|
23337
23340-06E10 BOLT-THROUGH9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23340-06E10 |
US $4.61 |
||
|
23337A
|
23337A
23340-06E10 BOLT-THROUGH9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23340-06E10 |
US $4.61 |
||
|
23343
|
23343
23343-41B10 Switch Assy-Magnetic9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23343-41B10 |
US $185.76 |
||
|
23378
|
23378
23378-53J10 Holder Assy-Brush9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23378-53J10 |
US $58.61 |
||
|
23379
|
23379
23380M8311 Brush-Minus9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23380M8311 |
US $11.09 |
||
|
23380
|
23380
23380M8310 Brush-Plus9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23380M8310 |
US $9.36 |
||
|
23465
|
23465
23465M8011 Stopper Set-Pinion9506--01 ~ 9601--01; 2WD.GA15DE.MT.F5 +GA13DS.MT.F5; ﾐﾂﾋﾞｼ |
23465M8011 |
US $8.35 |
