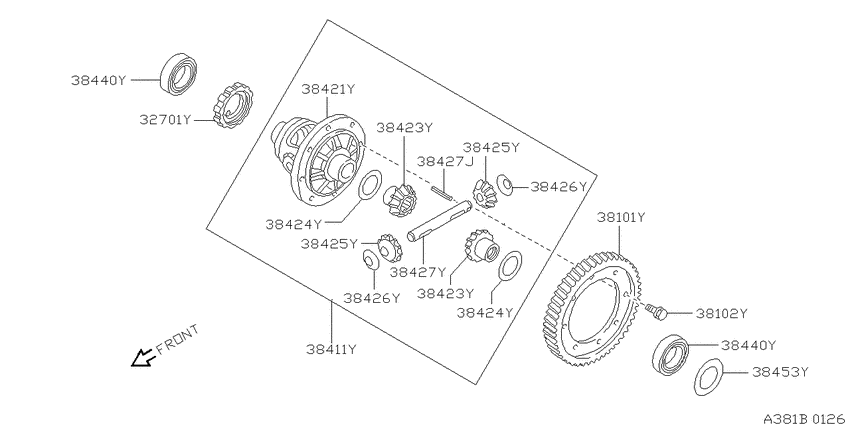

Front final drive (1993-07-01 ~ ; GA13DS.AT +GA15DS.AT) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- GA13DS
- transmission
- AT
- grade
- VE
- body
- V/4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-31X00 Gear-Drive, Speedometer9307--01 ~ ; GA13DS.AT +GA15DS.AT |
32701-31X00 |
from US $11.95 |
||
|
32701Y
|
32701Y
32701-D2100 Gear-Drive, Speedometer9601--01 ~ ; GA13DS.VE.AT |
32701-D2100 |
US $19.44 |
||
|
38101Y
|
38101Y
38101-31X01 Gear-Final Drive9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38101-31X01 |
US $138.96 |
||
|
38101Y
|
38101Y
38101-64A04 Gear-Final Drive9601--01 ~ ; GA13DS.VE.AT |
38101-64A04 |
US $175.68 |
||
|
38102Y
|
38102Y
38102-M8001 Bolt-Drive Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38102-M8001 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-31X05 Case Compl-Differential9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38411-31X05 |
US $774.55 |
||
| replacement | |||||
|
38411Y
|
38411Y
38411-3MX0A Case Compl-Differential9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38411-3MX0A |
US $774.55 |
||
|
38411Y
|
38411Y
38411-67Y01 Case Compl-Differential9601--01 ~ ; GA13DS.VE.AT |
38411-67Y01 |
US $774.55 |
||
|
38421Y
|
38421Y
38421-31X00 Case-Differential9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38421-31X00 |
US $460.20 |
||
|
38421Y
|
38421Y
38421-D2100 Case-Differential9601--01 ~ ; GA13DS.VE.AT |
38421-D2100 |
US $471.53 |
||
|
38423Y
|
38423Y
3842331X00 Gear-Side9307--01 ~ ; GA13DS.AT +GA15DS.AT |
3842331X00 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-D2100 Gear-Side9601--01 ~ ; GA13DS.VE.AT |
38423-D2100 |
US $100.80 |
||
|
38423Y
|
38423Y
3842331X00 Gear-Side9307--01 ~ ; GA13DS.AT +GA15DS.AT |
3842331X00 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-D2100 Gear-Side9601--01 ~ ; GA13DS.VE.AT |
38423-D2100 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-31X00 Washer-Thrust, Side Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.75-0.80 |
38424-31X00 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X01 Washer-Thrust, Side Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.80-0.85 |
38424-31X01 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X02 Washer-Thrust, Side Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.85-0.90 |
38424-31X02 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X03 Washer-Thrust, Side Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.90-0.95 |
38424-31X03 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X04 Washer-Thrust, Side Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.95-1.00 |
38424-31X04 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9601--01 ~ ; GA13DS.VE.AT; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9601--01 ~ ; GA13DS.VE.AT; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9601--01 ~ ; GA13DS.VE.AT; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9601--01 ~ ; GA13DS.VE.AT; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9601--01 ~ ; GA13DS.VE.AT; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X00 Washer-Thrust, Side Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.75-0.80 |
38424-31X00 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X01 Washer-Thrust, Side Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.80-0.85 |
38424-31X01 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X02 Washer-Thrust, Side Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.85-0.90 |
38424-31X02 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X03 Washer-Thrust, Side Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.90-0.95 |
38424-31X03 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-31X04 Washer-Thrust, Side Gear9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.95-1.00 |
38424-31X04 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9601--01 ~ ; GA13DS.VE.AT; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9601--01 ~ ; GA13DS.VE.AT; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9601--01 ~ ; GA13DS.VE.AT; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9601--01 ~ ; GA13DS.VE.AT; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9601--01 ~ ; GA13DS.VE.AT; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-01M05 Pinion-Mate9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38425-01M05 |
US $33.98 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate9601--01 ~ ; GA13DS.VE.AT |
38425-U3000 |
US $38.59 |
||
|
38425Y
|
38425Y
38425-01M05 Pinion-Mate9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38425-01M05 |
US $33.98 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate9601--01 ~ ; GA13DS.VE.AT |
38425-U3000 |
US $38.59 |
||
|
38426Y
|
38426Y
38426-01M14 Washer-Thrust, Pinion Mate9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38426-01M14 |
from US $2.78 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate9601--01 ~ ; GA13DS.VE.AT |
38426-31X10 |
US $2.45 |
||
|
38426Y
|
38426Y
38426-01M14 Washer-Thrust, Pinion Mate9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38426-01M14 |
from US $2.78 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate9601--01 ~ ; GA13DS.VE.AT |
38426-31X10 |
US $2.45 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-31X05 Shaft-Pinion Mate9307--01 ~ ; GA13DS.AT +GA15DS.AT |
38427-31X05 |
US $63.22 |
||
|
38427Y
|
38427Y
38427-D2101 Shaft-Pinion Mate9601--01 ~ ; GA13DS.VE.AT |
38427-D2101 |
US $22.32 |
||
|
38440Y
|
38440Y
31409-31X00 Bearing-Differential Side9307--01 ~ ; GA13DS.AT +GA15DS.AT |
31409-31X00 |
US $55.58 |
||
|
38440Y
|
38440Y
38440-D2100 Bearing-Counter Shaft, Lh9601--01 ~ ; GA13DS.VE.AT |
38440-D2100 |
US $35.14 |
||
|
38440Y
|
38440Y
31409-31X00 Bearing-Differential Side9307--01 ~ ; GA13DS.AT +GA15DS.AT |
31409-31X00 |
US $55.58 |
||
|
38440Y
|
38440Y
38440-D2100 Bearing-Counter Shaft, Lh9601--01 ~ ; GA13DS.VE.AT |
38440-D2100 |
US $35.14 |
||
|
38453Y
|
38453Y
38454-M8000 Shim-Adjust, Side Bearing9307--01 ~ 9601--01; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.44 |
38454-M8000 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8001 Shim-Adjust, Side Bearing9307--01 ~ 9601--01; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.48 |
38454-M8001 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8003 Shim-Adjust, Side Bearing9307--01 ~ 9601--01; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.56 |
38454-M8003 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8004 Shim-Adjust, Side Bearing9307--01 ~ 9601--01; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.60 |
38454-M8004 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8005 Shim-Adjust, Side Bearing9307--01 ~ 9601--01; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.64 |
38454-M8005 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8006 Shim-Adjust, Side Bearing9307--01 ~ 9601--01; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.68 |
38454-M8006 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8007 Shim-Adjust, Side Bearing9307--01 ~ 9601--01; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.72 |
38454-M8007 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8008 Shim-Adjust, Side Bearing9307--01 ~ 9601--01; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.76 |
38454-M8008 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8009 Shim-Adjust, Side Bearing9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.80 |
38454-M8009 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8010 Shim-Adjust, Side Bearing9307--01 ~ 9601--01; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.84 |
38454-M8010 |
US $6.34 |
||
|
38453Y
|
38453Y
38454-M8011 Shim-Adjust, Side Bearing9307--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.88 |
38454-M8011 |
US $6.34 |
||
|
38453Y
|
38453Y
38454-M8013 Shim-Adjust, Side Bearing9601--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=0.96 |
38454-M8013 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-M8015 Shim-Adjust, Side Bearing9601--01 ~ ; GA13DS.AT +GA15DS.AT; ｾﾝﾀｸ T=1.04 |
38454-M8015 |
US $5.47 |
||
