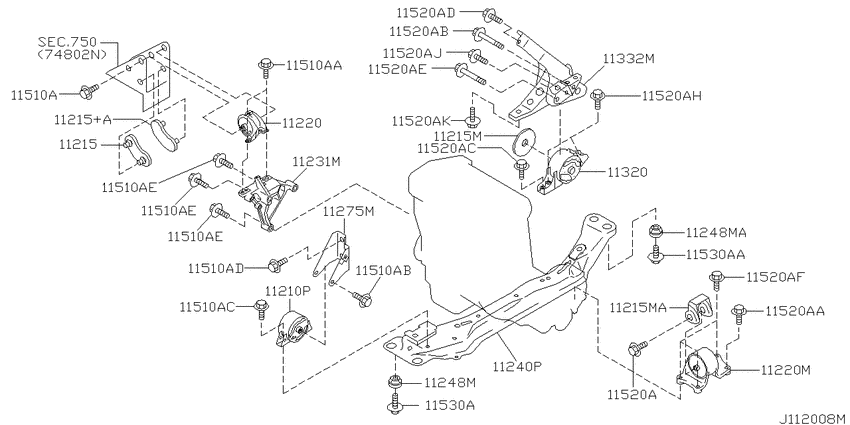

Engine & transmission mounting (2000-01-01 ~ 2003-10-01; 2WD.YD22DD.MT) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2003
- Sales region
- Japan
- Engine
- YD22DD
- drive
- 2WD
- transmission
- MT
- grade
- DX
- body
- V
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11210P
|
11210P
112702J210 Insulator Assy-Engine Mounting, Front9906--01 ~ 9907--01; 2WD.YD22DD.MT |
112702J210 |
US $103.25 |
||
|
11210P
|
11210P
11270-WD010 Insulator Assy-Engine Mounting, Front9907--01 ~ 0310--01; 2WD.YD22DD.MT |
11270-WD010 |
US $72 |
||
|
11215
|
11215
11215-WD000 Stopper-Engine Mounting9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11215-WD000 |
US $13.54 |
||
|
11215
|
11215
11215WD010 Stopper-Engine Mounting9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11215WD010 |
US $12.53 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting9906--01 ~ 0310--01; 2WD.YD22DD.MT |
1121550A00 |
US $11.38 |
||
|
11215
|
11215
11215-5U005 Stopper-Engine Mounting9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11215-5U005 |
US $11.66 |
||
|
11215+A
|
11215+A
11215WD010 Stopper-Engine Mounting9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11215WD010 |
US $12.53 |
||
|
11215M
|
11215M
1121550A00 Stopper-Engine Mounting9906--01 ~ 0310--01; 2WD.YD22DD.MT |
1121550A00 |
US $11.38 |
||
|
11215M
|
11215M
11215-5U005 Stopper-Engine Mounting9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11215-5U005 |
US $11.66 |
||
|
11215MA
|
11215MA
11215-5U005 Stopper-Engine Mounting9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11215-5U005 |
US $11.66 |
||
|
11220
|
11220
11210-5M305 Insulator-Engine Mounting, Rh0001--01 ~ 0110--01; 2WD.YD22DD.MT |
11210-5M305 |
US $240.48 |
||
|
11220
|
11220
11210-WD000 Insulator Assy-Engine Mounting, Front Rh9906--01 ~ 0001--01; 2WD.YD22DD.MT |
11210-WD000 |
US $220.32 |
||
|
11220
|
11220
11210WD800 Insulator Assy-Engine Mounting, Front Rh0110--01 ~ 0310--01; 2WD.YD22DD.MT |
11210WD800 |
US $167.04 |
||
|
11220
|
11220
11220-5M305 Insulator Assy-Engine Mounting, Front Lh0102--01 ~ 0310--01; 2WD.YD22DD.MT |
11220-5M305 |
from US $142.89 |
||
|
11220
|
11220
11220-WD000 Insulator Assy-Engine Mounting, Front Lh9906--01 ~ 0102--01; 2WD.YD22DD.MT |
11220-WD000 |
US $184.32 |
||
|
11220M
|
11220M
11220-5M305 Insulator Assy-Engine Mounting, Front Lh0102--01 ~ 0310--01; 2WD.YD22DD.MT |
11220-5M305 |
from US $142.89 |
||
|
11220M
|
11220M
11220-WD000 Insulator Assy-Engine Mounting, Front Lh9906--01 ~ 0102--01; 2WD.YD22DD.MT |
11220-WD000 |
US $184.32 |
||
|
11231M
|
11231M
11231-4N100 Bracket-Engine Mounting9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11231-4N100 |
US $99.65 |
||
|
11240P
|
11240P
11240-5M300 Member Assy-Engine Mounting0001--01 ~ 0310--01; 2WD.YD22DD.MT |
11240-5M300 |
US $141.12 |
||
|
11240P
|
11240P
11240-5U000 Member Assy-Engine Mounting9906--01 ~ 0001--01; 2WD.YD22DD.MT |
11240-5U000 |
US $167.04 |
||
|
11248M
|
11248M
112485M300 Pad-Engine Mounting Member9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112485M300 |
US $7.91 |
||
|
11248M
|
11248M
112484M410 Pad-Engine Mounting Member9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112484M410 |
from US $7.31 |
||
|
11248MA
|
11248MA
112484M410 Pad-Engine Mounting Member9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112484M410 |
from US $7.31 |
||
|
11275M
|
11275M
11274-WD000 Bracket-Engine Mounting Block, Front9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11274-WD000 |
US $30.96 |
||
|
11320
|
11320
11320-6M000 Insulator-Engine Mounting, Rear9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11320-6M000 |
US $79.20 |
||
|
11332M
|
11332M
11332-WD000 Bracket-Engine Mounting, Rear9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11332-WD000 |
US $106.99 |
||
|
11510A
|
11510A
11298-2J200 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-2J200 |
US $3.46 |
||
|
11510A
|
11510A
112982J202 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112982J202 |
US $3.46 |
||
|
11510A
|
11510A
112984M408 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112984M408 |
US $3.46 |
||
|
11510A
|
11510A
11298-2J207 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-2J207 |
US $3.46 |
||
|
11510A
|
11510A
0112503041 BOLT9906--01 ~ 0310--01; 2WD.YD22DD.MT |
0112503041 |
US $3.46 |
||
|
11510A
|
11510A
11298-AD200 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-AD200 |
from US $2.02 |
||
|
11510AA
|
11510AA
112982J202 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112982J202 |
US $3.46 |
||
|
11510AB
|
11510AB
112984M408 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112984M408 |
US $3.46 |
||
|
11510AC
|
11510AC
11298-2J207 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-2J207 |
US $3.46 |
||
|
11510AD
|
11510AD
0112503041 BOLT9906--01 ~ 0310--01; 2WD.YD22DD.MT |
0112503041 |
US $3.46 |
||
|
11510AE
|
11510AE
11298-AD200 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-AD200 |
from US $2.02 |
||
|
11510AE
|
11510AE
11298-AD200 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-AD200 |
from US $2.02 |
||
|
11510AE
|
11510AE
11298-AD200 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-AD200 |
from US $2.02 |
||
|
11520A
|
11520A
11298-4M500 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-4M500 |
US $8.06 |
||
|
11520A
|
11520A
11298-4M411 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-4M411 |
from US $1.92 |
||
|
11520A
|
11520A
112984M408 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112984M408 |
US $3.46 |
||
|
11520A
|
11520A
11298-6M001 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-6M001 |
US $3.46 |
||
|
11520A
|
11520A
11298-5J000 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-5J000 |
US $3.46 |
||
|
11520A
|
11520A
112985M310 Bolt0207--01 ~ 0310--01; 2WD.YD22DD.MT |
112985M310 |
US $3.46 |
||
|
11520A
|
11520A
11298-WD000 Bolt9906--01 ~ 0207--01; 2WD.YD22DD.MT |
11298-WD000 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M412 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-4M412 |
US $3.46 |
||
|
11520A
|
11520A
11298-6M002 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-6M002 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M410 Bolt9906--01 ~ 0005--01; 2WD.YD22DD.MT |
11298-4M410 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M421 Bolt0005--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-4M421 |
US $3.46 |
||
|
11520A
|
11520A
0112503021 BOLT9906--01 ~ 0310--01; 2WD.YD22DD.MT |
0112503021 |
US $3.46 |
||
|
11520AA
|
11520AA
11298-4M411 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-4M411 |
from US $1.92 |
||
|
11520AB
|
11520AB
112984M408 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112984M408 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-6M001 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-6M001 |
US $3.46 |
||
|
11520AD
|
11520AD
11298-5J000 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-5J000 |
US $3.46 |
||
|
11520AE
|
11520AE
112985M310 Bolt0207--01 ~ 0310--01; 2WD.YD22DD.MT |
112985M310 |
US $3.46 |
||
|
11520AE
|
11520AE
11298-WD000 Bolt9906--01 ~ 0207--01; 2WD.YD22DD.MT |
11298-WD000 |
US $3.46 |
||
|
11520AF
|
11520AF
11298-4M412 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-4M412 |
US $3.46 |
||
|
11520AH
|
11520AH
11298-6M002 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-6M002 |
US $3.46 |
||
|
11520AJ
|
11520AJ
11298-4M410 Bolt9906--01 ~ 0005--01; 2WD.YD22DD.MT |
11298-4M410 |
US $3.46 |
||
|
11520AJ
|
11520AJ
11298-4M421 Bolt0005--01 ~ 0310--01; 2WD.YD22DD.MT |
11298-4M421 |
US $3.46 |
||
|
11520AK
|
11520AK
0112503021 BOLT9906--01 ~ 0310--01; 2WD.YD22DD.MT |
0112503021 |
US $3.46 |
||
|
11530A
|
11530A
112984M413 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112984M413 |
from US $1.76 |
||
|
11530A
|
11530A
112982J221 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112982J221 |
from US $1.67 |
||
|
11530AA
|
11530AA
112982J221 Bolt9906--01 ~ 0310--01; 2WD.YD22DD.MT |
112982J221 |
from US $1.67 |
||
|
