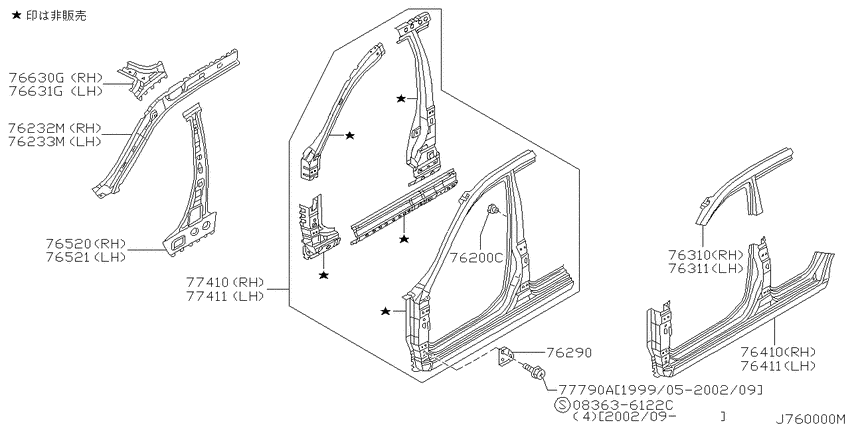

Body side panel (1999-06-01 ~ 2000-01-01; FR&CTR; V) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- GX
- body
- V
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636122C
|
083636122C
08363-6122C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6122C |
— | ||
|
76200C
|
76200C
80497-WA000 Nut9906--01 ~ 0001--01; V |
80497-WA000 |
US $0.86 |
||
|
76232M
|
76232M
76230-WD000 Pillar-Front, Inner Upper Rh9906--01 ~ 0001--01; V |
76230-WD000 |
US $143.86 |
||
|
76232M
|
76232M
76230-WE000 Pillar-Front, Inner Upper Rh0109--01 ~ 0208--01; V |
76230-WE000 |
US $156.96 |
||
|
76232M
|
76232M
76230-WE400 Pillar-Front, Inner Upper Rh0208--01 ~ 0310--01; V |
76230-WE400 |
US $119.66 |
||
|
76233M
|
76233M
76231-WD000 Pillar-Front, Inner Upper Lh9906--01 ~ 0001--01; V |
76231-WD000 |
US $143.86 |
||
|
76233M
|
76233M
76231-WE000 Pillar-Front, Inner Upper Lh0109--01 ~ 0208--01; V |
76231-WE000 |
US $156.96 |
||
|
76233M
|
76233M
76231-WE400 Pillar-Front, Inner Upper Lh0208--01 ~ 0310--01; V |
76231-WE400 |
US $119.66 |
||
|
76290
|
76290
76290WA000 Bracket Assy-Front Fender9906--01 ~ 0001--01; V; RH & LH |
76290WA000 |
US $9.07 |
||
|
76310
|
76310
76312-WD061 Rail-Side Roof, Outer Rh9906--01 ~ 0001--01; V |
76312-WD061 |
US $131.18 |
||
|
76311
|
76311
76313-WD060 Rail-Side Roof, Outer Lh9906--01 ~ 0001--01; V |
76313-WD060 |
US $131.18 |
||
|
76410
|
76410
76412-WD060 Sill-Outer, Rh9906--01 ~ 0001--01; V |
76412-WD060 |
US $332.76 |
||
|
76411
|
76411
76413-WD060 Sill-Outer, Lh9906--01 ~ 0001--01; V |
76413-WD060 |
US $332.76 |
||
|
76520
|
76520
76530-WD000 Pillar-Center, Inner Rh9906--01 ~ 0001--01; V |
76530-WD000 |
US $131.18 |
||
|
76521
|
76521
76531WD000 Pillar-Center, Inner Lh9906--01 ~ 0001--01; V |
76531WD000 |
US $131.18 |
||
|
76630G
|
76630G
76320-WD000 Brace-Roof Rail, Front Rh9906--01 ~ 0001--01; V |
76320-WD000 |
US $27.07 |
||
|
76631G
|
76631G
76321-WD000 Brace-Roof Rail, Front Lh9906--01 ~ 0001--01; V |
76321-WD000 |
US $27.07 |
||
|
77410
|
77410
77410-WD061 Side Panel Assy-Outer, Front Rh9906--01 ~ 0001--01; V |
77410-WD061 |
US $883.58 |
||
|
77410
|
77410
77410WD961 Side Panel Assy-Outer, Front Rh0010--01 ~ 0310--01; 'V.2WD.YD22DD +V.(QG13DE+QG15DE+QG18DEN) |
77410WD961 |
US $736.32 |
||
|
77410
|
77410
77410-WE461
Side Panel Assy-Outer, Front Rh
0512--01 ~ ; V.(QG13DE+QG15DE+QG18DEN) |
77410-WE461 |
— | ||
|
77411
|
77411
77411-WD060 Side Panel Assy-Outer, Front Lh9906--01 ~ 0001--01; V |
77411-WD060 |
US $736.32 |
||
|
77411
|
77411
77411-WE460
Side Panel Assy-Outer, Front Lh
0512--01 ~ ; V |
77411-WE460 |
— | ||
|
77790A
|
77790A
0146600051 SCREW9906--01 ~ 0001--01; V |
0146600051 |
US $0.82 |
